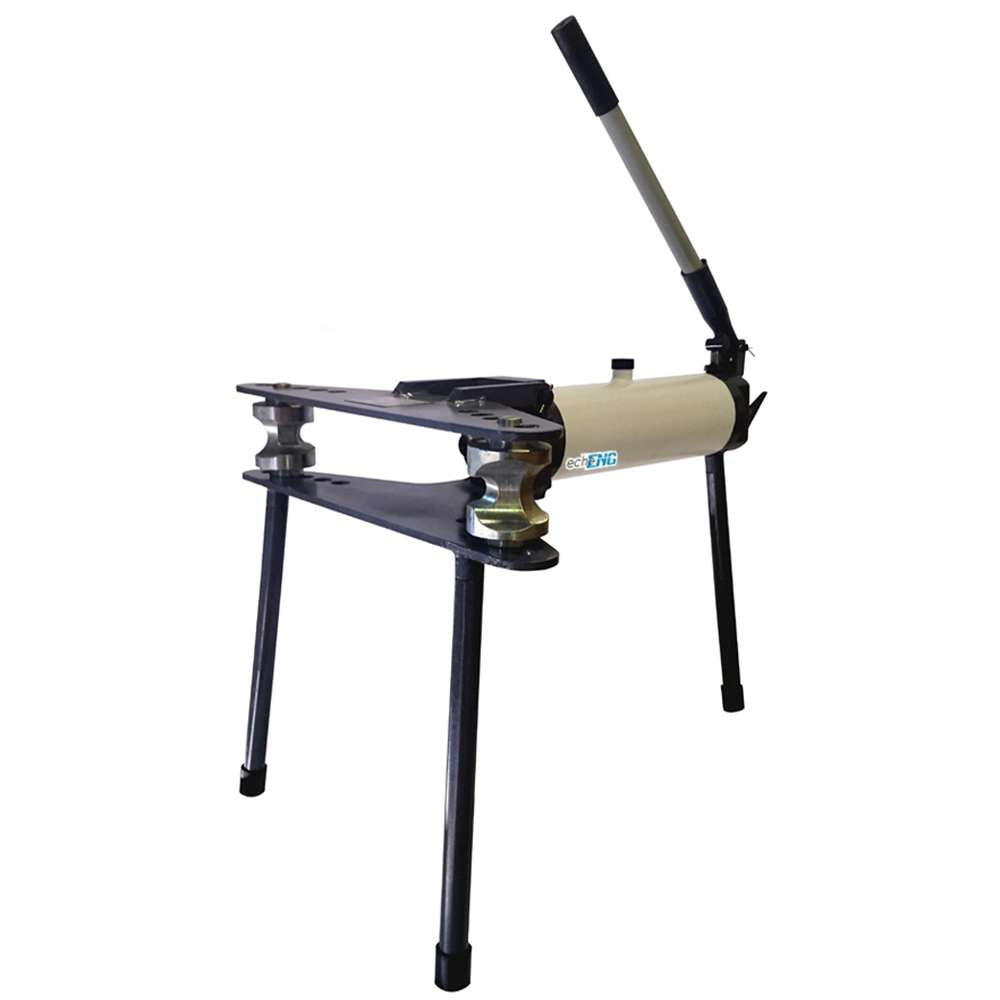

10T Hydraulic Pipe Bender with Included Dies – FTX-10 CUH ENG PRO Fortex
The FTX-10 CUH ENG PRO Fortex pipe bender is designed to accurately bend metal pipes using a powerful 10-ton hydraulic system and interchangeable included dies. Ideal for workshops, plumbing systems, and industrial sectors, it enables precise bends up to 120° on pipes of various diameters.
Main Features
Robust structure for professional use
Hydraulic system with 10-ton capacity
-
Standard dies included:
1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”
Compatible with pipes up to 60 mm in diameter
Minimum radius varies depending on the die
Bending angle up to 120°
Compact and portable design
Ideal for on-site or workshop use
Technical Data – FTX-10 CUH
| Feature | Value |
|---|---|
| EAN Code | 8423640500419 |
| Capacity | 10 Ton |
| Ram stroke | 155 mm |
| Supported pipe diameters | 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2” |
| Machine dimensions | 710 x 590 x 220 mm |
| Net / gross weight | 45 / 48 kg |
Specifications per Die
| Die | Pipe Ø (mm) | Max. Thickness | Min. Radius | Max. Angle |
|---|---|---|---|---|
| 1/2” | 21.3 mm | 3.25 mm | 62 mm | 0–90° |
| 3/4” | 26.8 mm | 3.50 mm | 78 mm | 0–90° |
| 1” | 33.5 mm | 4.00 mm | 98 mm | 0–90° |
| 1-1/4” | 42.3 mm | 4.00 mm | 128 mm | 0–120° |
| 1-1/2” | 48.0 mm | 4.25 mm | 148 mm | 0–120° |
| 2” | 60.0 mm | 4.50 mm | 187 mm | 0–120° |
