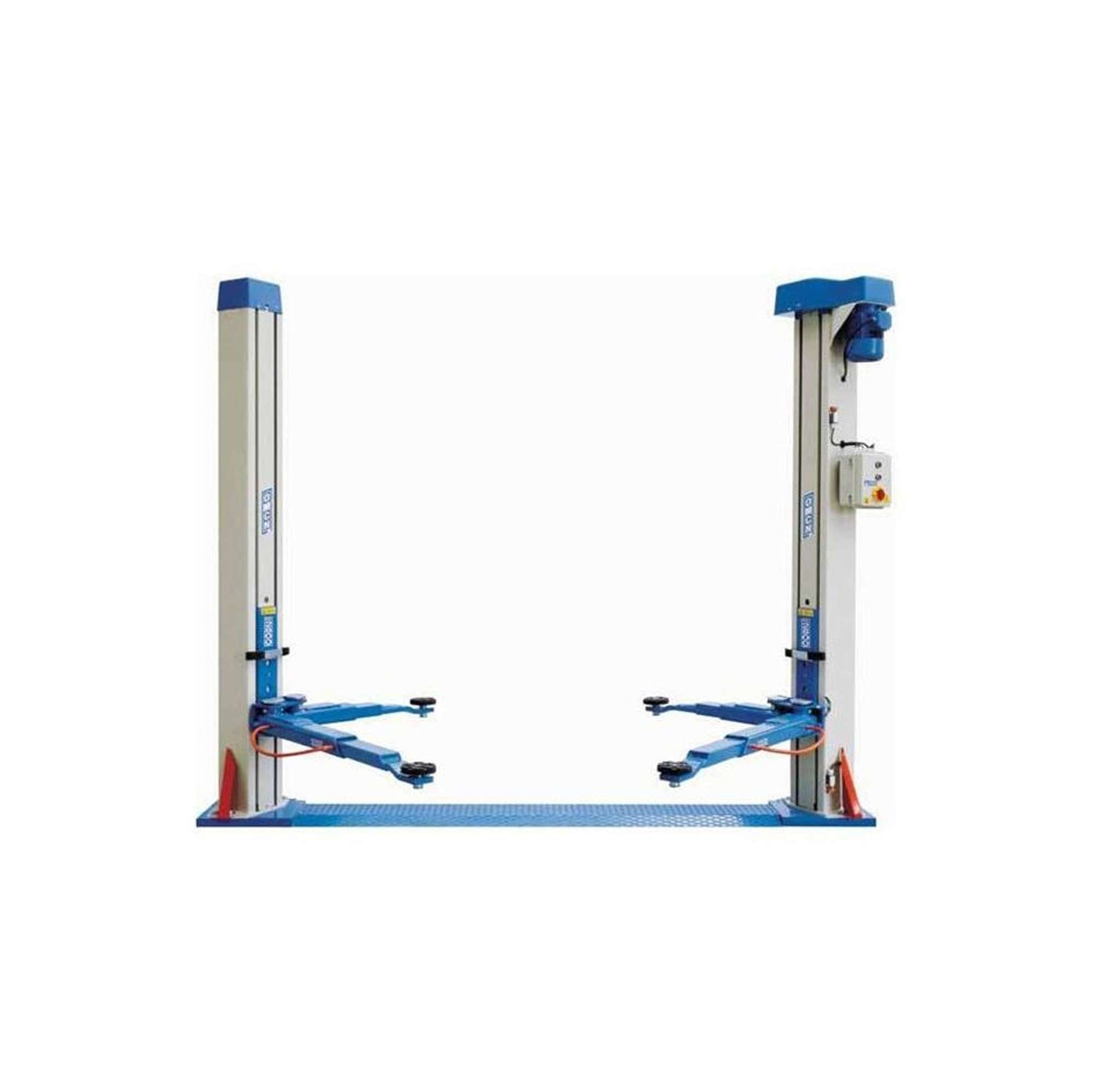

OMCN 199/UE – Two-Post Workshop Car Lift (3.2 Ton)
Product Description
The OMCN 199/UE car lift is a professional electromechanical lift designed for workshops that demand high performance, safety, and reliability.
Equipped with a low-profile base and rolled trapezoidal screws made of high-strength steel with a fine pitch, it ensures secure and stable lifting thanks to the self-locking function of the carriages.
The carriages, with fully protected internal sliding, are fitted with four rollers and four adjustable pads each, ensuring smooth and precise movement.
The screw motion is transmitted by a chain with anti-stretch electrical protection, providing quiet operation and greater flexibility.
The oversized three-phase electric motor, with thermal protection, works in combination with a closed-circuit electrical system, low-voltage controls, and “man present” operation for maximum safety and efficiency.
The structure, fully pre-assembled and coated with epoxy powder paint, guarantees long-lasting durability. The lift is supplied complete with a grease pump and floor anchoring bolts.
Key Features
Electromechanical two-post lift with low-profile base
Rolled trapezoidal self-locking screws in high-strength steel
Fully protected internal carriages with rollers and adjustable pads
Chain drive with anti-stretch electrical safety system
Oversized three-phase motor with thermal protection
Closed-circuit electrical system with low-voltage controls
“Man present” operation for maximum operator safety
Durable epoxy powder coating
Supplied with grease pump and floor fixing bolts
Technical Specifications
| Features | Value |
|---|---|
| Capacity | 3.2 tons |
| Motor | Three-phase 400 V – 50 Hz |
| Motor Power | 3.3 kW |
| Height | 2,615 mm |
| Width | 3,325 mm |
| Weight | 755 kg |
