Description

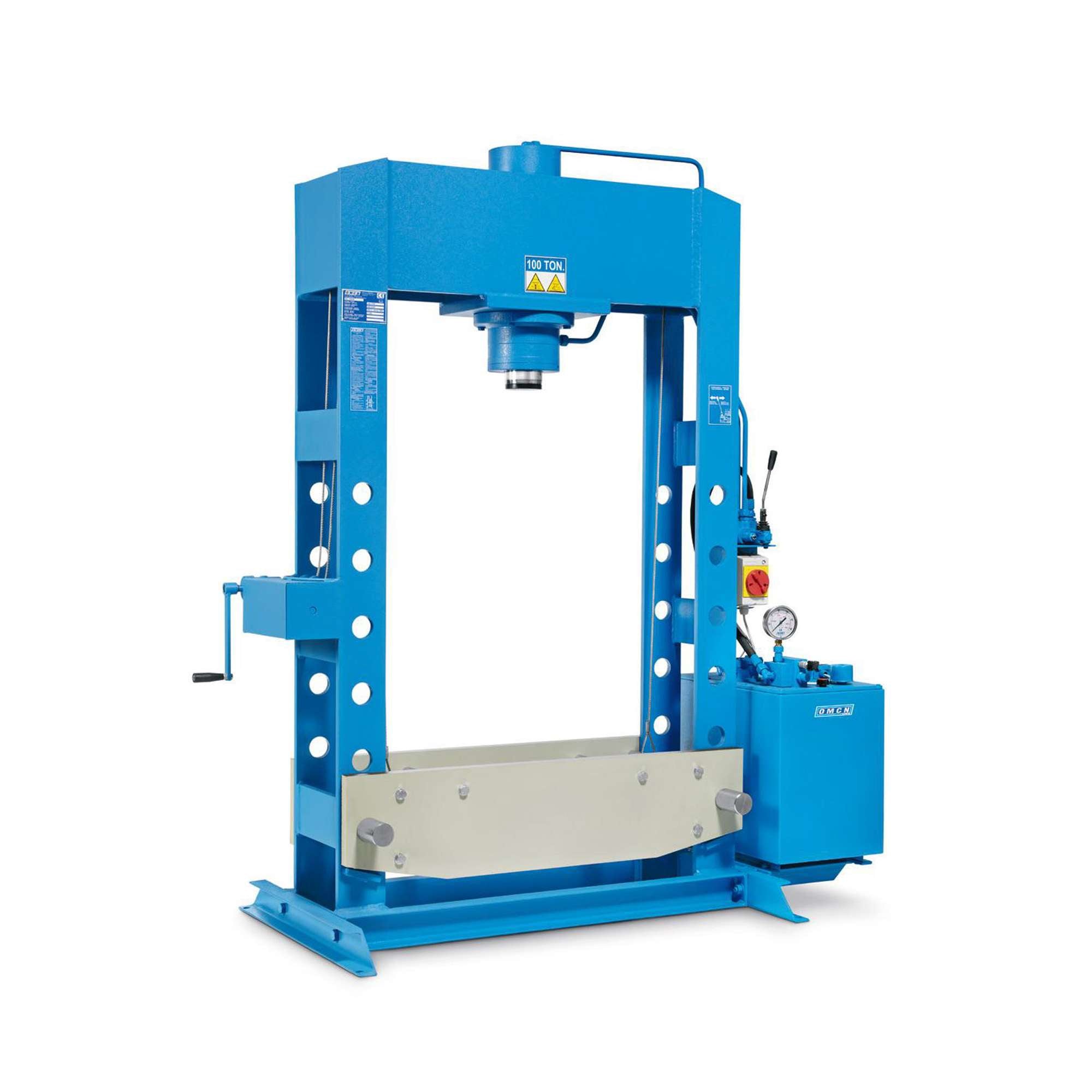

Two-speed electro-hydraulic press OMCN 164/WS with actuation via 3-position lever control valve. Robust base frame construction provides maximum stability and minimum space requirements.
Thanks to the perforated frame, the support base can be adjusted in height so that workpieces of different sizes can be processed. The lever-operated system allows a free hand to work. The pallet is raised by means of a rod in a practical and fast manner.
+ fast approach
+ precision
+ freedom
Indispensable in the workshop and in the industrial sector, perfect for pressing metal objects, such as when assembling mechanical assemblies, pressing bearings or pulleys onto shafts.
Made in Italy and CE certified press made of robust materials that guarantee reliability over time and can generate a force of 100000 kg.
Technical construction layout
Cylinder rod in special steel, treated and chrome-plated
Actuation via 3-position lever distributor
One-hand operation
Two-speed pump
Calibration valve for adjusting the power according to the machining operation
Maximum versatility
Height-adjustable bed
Pallet lift by means of rod
Base with holes for floor fixing
Manometer supplied as standard
Dimensions and footprint
Overall dimensions 2470 x 2320 x 1300 mm
Pressure 100 tonnes
Piston stroke 310 mm
Piston diameter 110 mm
Approach speed 570 mm/min
Working speed 180 mm/min
Motor power 3 Kw
Delivery 10-15 days
