Digital Surface Roughness Tester – Precision and Reliability for Surface Roughness Measurement

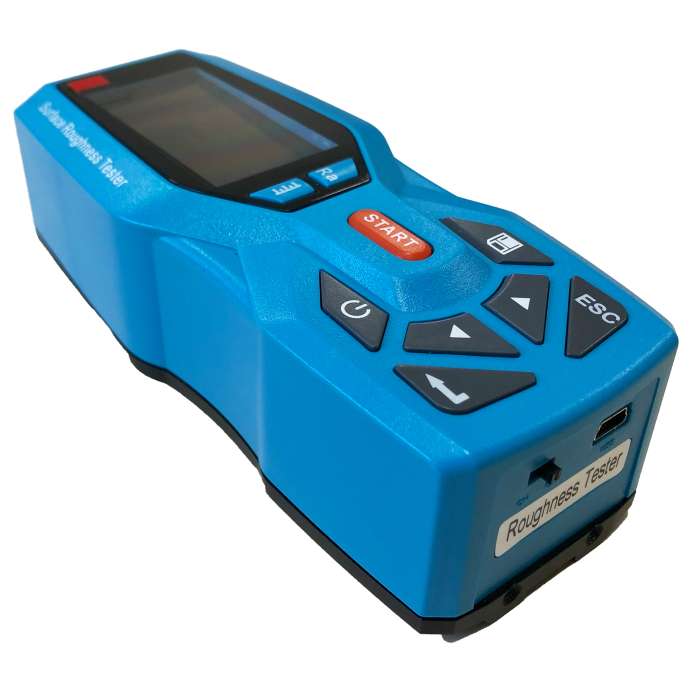

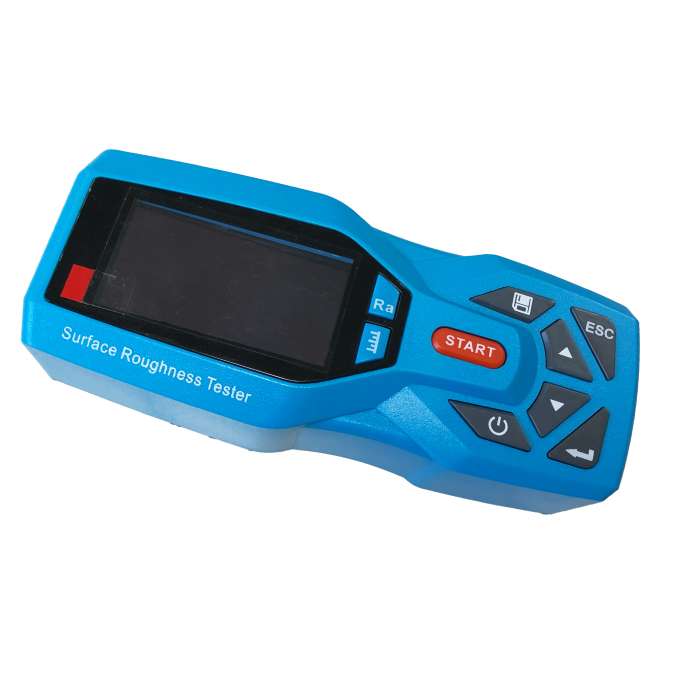

The digital surface roughness tester is a compact and portable instrument, ideal for workshop use and mobile measurements. Thanks to its ease of use, fast measurement speed, and stable accuracy, it is perfect for analyzing the surface roughness of machined components. This device can evaluate surface textures based on various parameters, complying with national and international standards. Measurement results are displayed in digital or graphical format on an OLED screen and can be printed or transferred to a PC.
Key Features
✔ Integrated electromechanical design: compact, lightweight, and easy to use.
✔ DSP chip control: high-speed data processing with low power consumption.
✔ Wide measurement range: up to 160 µm.
✔ 20 measurement parameters including Ra, Rz, Rt, Rp, Rv, Rmax, Rmr, and many more.

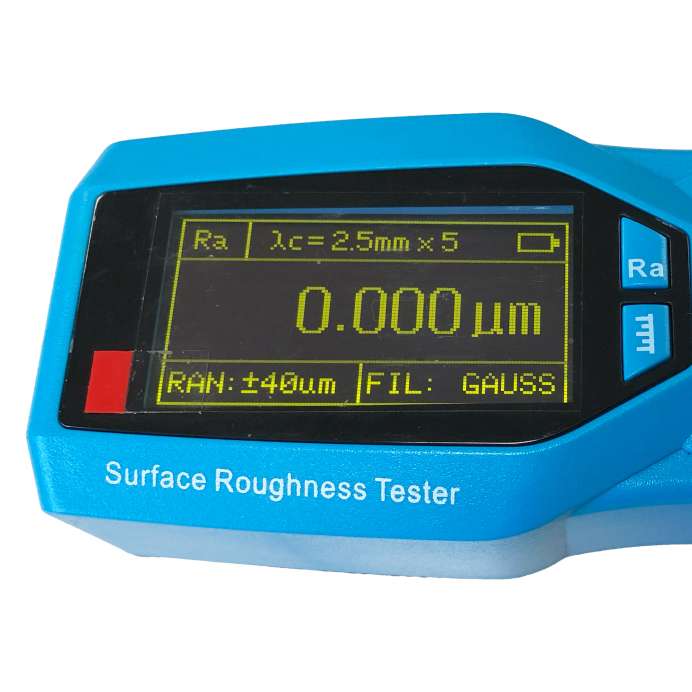

✔ 128×64 OLED display: high-contrast digital and graphic visualization, with no viewing angle limitations.
✔ Compatible with multiple international standards: ISO 1997, DIN, ANSI, JIS2001.
✔ 4 profile filters available: Gauss, RC, PC-RC, DP.
✔ Rechargeable lithium-ion battery: long-lasting, no memory effect, with charge level indicator.
✔ More than 20 hours of operation on a full charge.
✔ Internal memory: stores up to 100 sets of data and waveforms.
✔ Real-time clock for easy data recording and storage.
✔ Power-saving function: automatic shutdown after a period of inactivity.
✔ Rugged metal housing: high reliability, durability, and portability.
✔ Advanced connectivity: can be connected to a computer and printer for data analysis and printing.

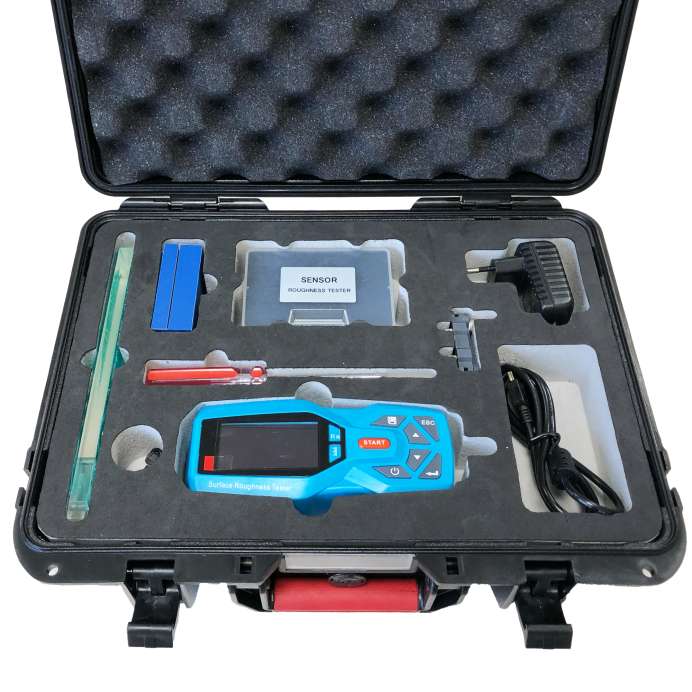

✔ Optional accessories: curved surface and hole sensors, measurement stand, sensor sheath, extension rod, analysis software.
Measurement Principle
During the measurement, the sensor is placed on the part's surface and moves at a constant speed. A sensitive stylus detects the surface roughness and converts the variations into an analog signal proportional to the roughness. This signal is processed through a data collection system, amplified, and digitally converted by a DSP chip. The final measurement results can be displayed on the OLED screen, printed, or transferred to a PC for further analysis.
The digital surface roughness tester is the ideal solution for those seeking a reliable, precise, and versatile device for surface roughness analysis, featuring advanced data management and broad compatibility with major measurement standards.
