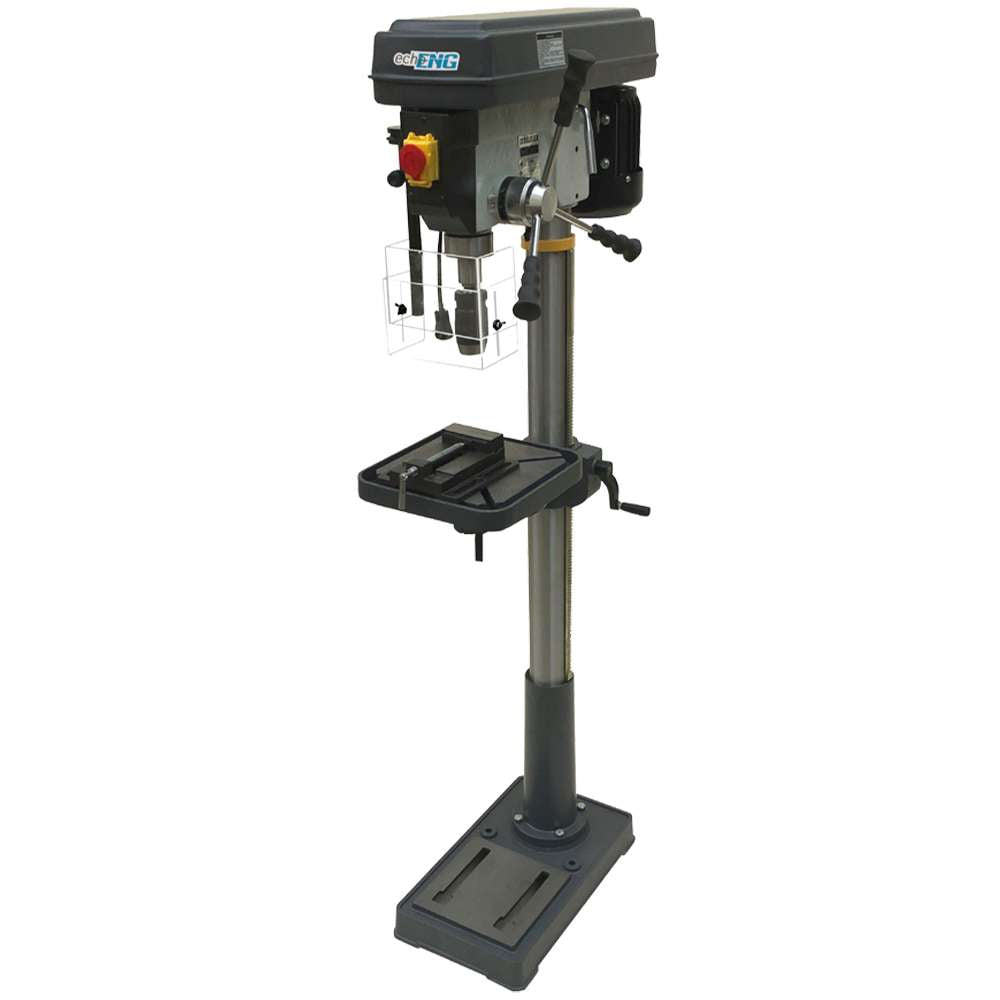

Bench Column Drill FTX-25-TC PRO R+L 400V 1.1 kW 25mm ENG PRO Fortex
The FTX-25-TC PRO R+L is the three-phase version of the FTX-25 series, designed for industrial environments requiring reverse rotation. It retains all the key features of the 230V model, including a cast iron structure, 360° rotatable and ±45° tiltable worktable, and micro-switch safety protections.
Key Features
Column drill with belt-driven speed change
Spindle mounted on ball bearings
Durable cast iron motor and pulleys
Table movement via rack and pinion
360° rotating worktable
±45° tiltable table
Reverse rotation (R+L version only)
Safety switch on cover opening
Built to comply with CE standards
Dual-screen safety micro-switch protection
Integrated LED work light
Vise included
Included Accessories
Keyless drill chuck
100 mm vise
Technical Specifications
| Specification | FTX-25-TC PRO R+L |
|---|---|
| Input voltage | 400 V – 50 Hz |
| Power | 1.1 kW |
| Number of speeds | 12 |
| Speed (RPM) | 280 – 2,300 |
| Max. drilling capacity | Ø 25 mm |
| Spindle-to-column distance | 215 mm |
| Morse taper | MT3 |
| Spindle travel | 85 mm |
| Column diameter | 80 mm |
| Table size | 290 x 290 mm |
| Total height | 1,690 mm |
| Weight | 80 kg |
| EAN Code | 8423640200500 |
