Description

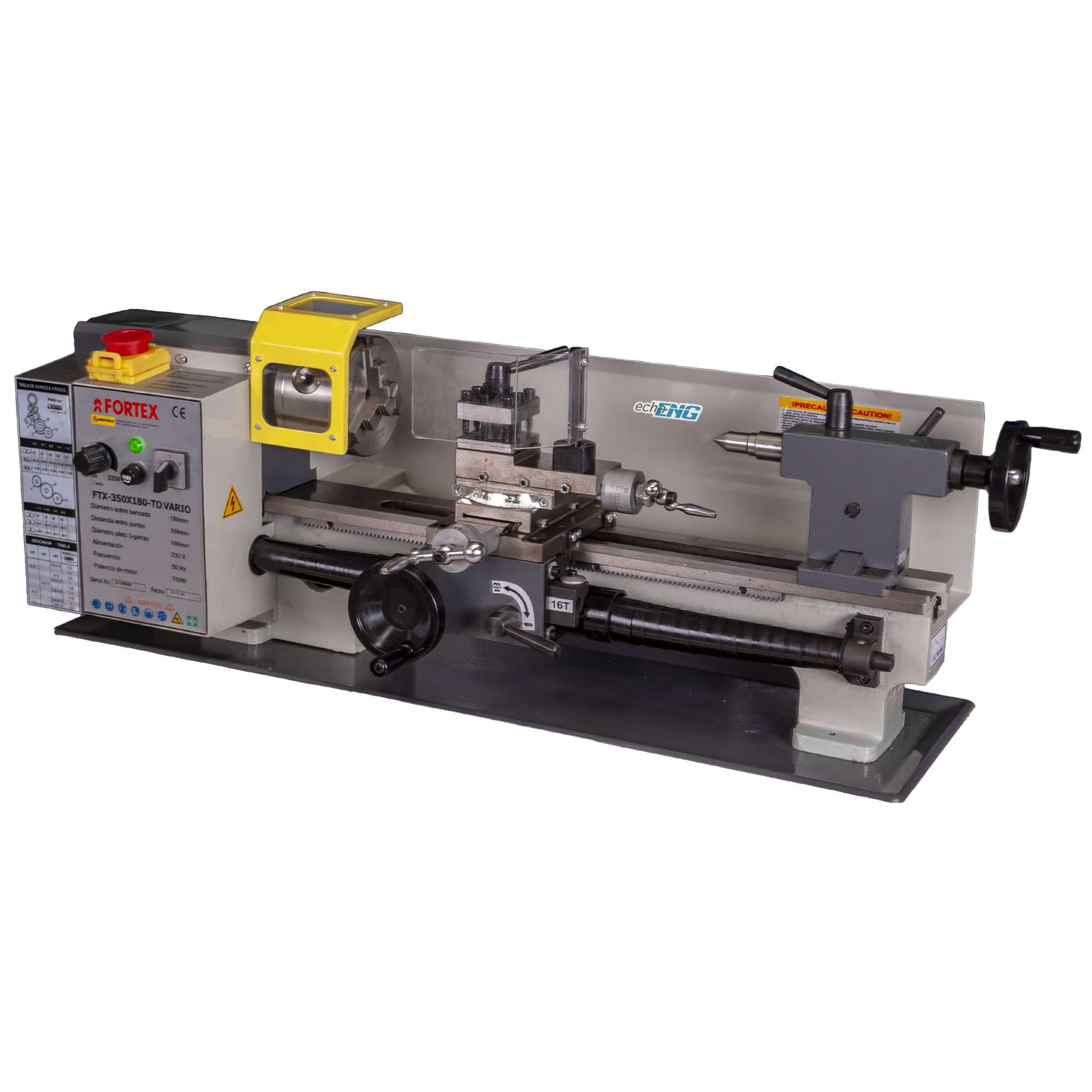

Parallel Lathe FTX-300X180-TO VARIO
Description:
The FTX-300X180-TO VARIO is a compact and reliable bench lathe, ideal for precision turning operations. It features two mechanical speeds with electronic drive and variable speed control, overload protection, and automatic longitudinal feed. Supplied with an Italian manual.
Main Features:
Two mechanical speeds with electronic drive and variable speed
Overload protection
Automatic longitudinal feed
Digital speed display
Italian user manual
Technical Specifications:
| Parameter | Value |
|---|---|
| Swing over bed | 180 mm |
| Distance between centers | 300 mm |
| Spindle bore | 21 mm |
| Spindle taper | CM5 |
| Tailstock taper | CM3 |
| Tailstock quill diameter | 22 mm |
| Tailstock quill travel | 60 mm |
| Number of speeds | 2 |
| Speed range | 50–1250 / 100–2500 rpm |
| Speed control | Gear driven |
| Digital X-Y display | No |
| Longitudinal feed | 0.08 – 0.16 mm/rev |
| Metric threading | 10 pitches / 0.5–3 mm |
| Imperial threading | 8 pitches / 8–44 TPI |
| Power supply | 230 V |
| Motor power | 0.75 kW (1 Hp) |
| Machine dimensions (L×W×H) | 800 × 480 × 460 mm |
| Weight | 60 kg |
