Description

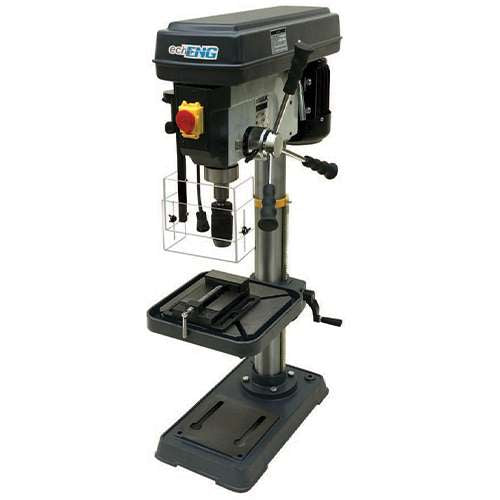

Bench Pillar Drill FTX-20-TS PRO – 20 mm – ENG PRO Fortex
The FTX-20-TS PRO is a professional bench pillar drill, ideal for workshops and job sites requiring high performance and precision. With belt-driven transmission and a powerful 1.1 kW motor, it is suitable for drilling holes up to 20 mm in diameter.
Main features
Belt-driven transmission
Spindle mounted on ball bearings
Heavy-duty cast iron motor and pulley
Table movement via rack and pinion
Table rotates 360° on the column
Safety switch on belt cover opening
Machine built according to CE standards
Standard accessories
Keyless chuck
100 mm vise
Technical specifications – FTX-20-TS PRO
| Specifications | FTX-20-TS PRO |
|---|---|
| Input voltage | 230 V – 50 Hz |
| Power | 1.1 kW |
| Number of speeds | 12 |
| Speed range (RPM) | 280 – 2,300 |
| Max. drilling capacity | Ø 20 mm |
| Distance spindle-column | 215 mm |
| Morse taper | MT2 |
| Spindle travel | 85 mm |
| Column diameter | 80 mm |
| Table dimensions | 280 x 280 mm |
| Total height | 1,085 mm |
| Weight | 70 kg |
| EAN code | 8423640200807 |
