Description

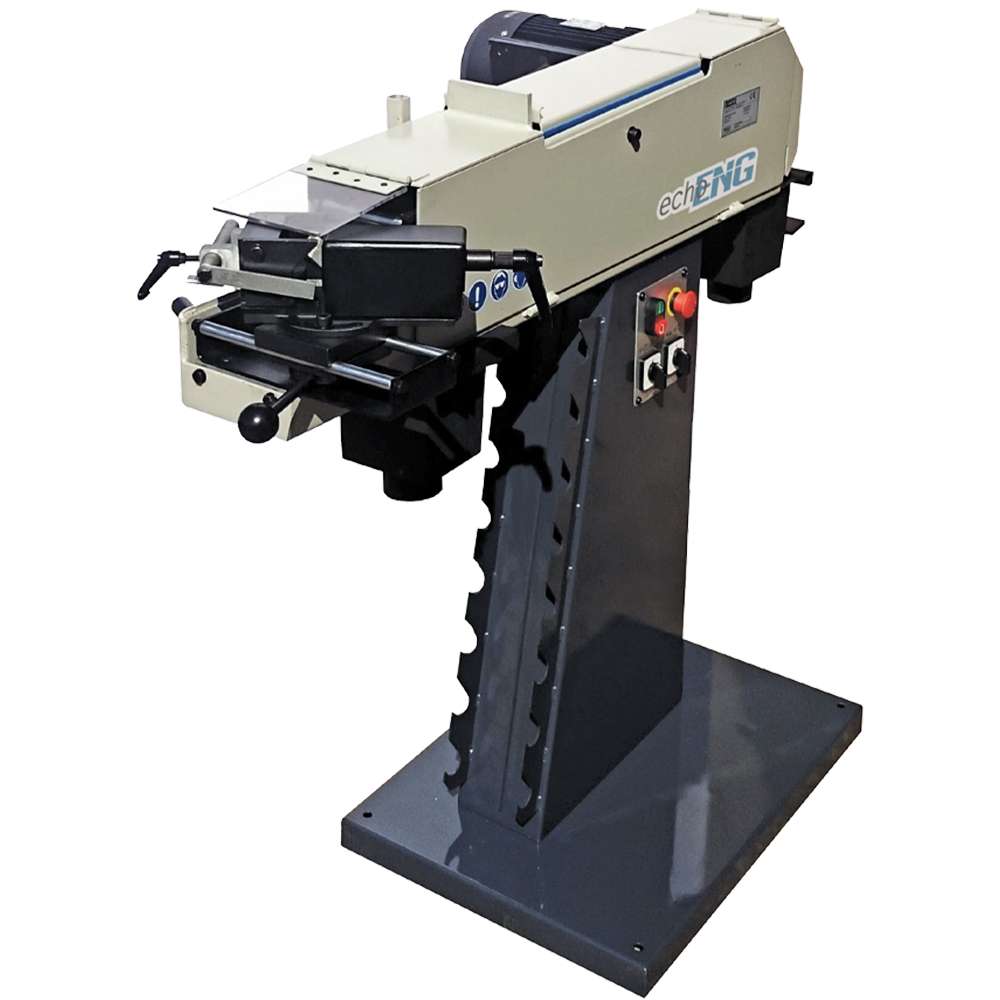

FTX-76-PBT ENG PRO Fortex Belt Polisher 2000x100mm
Multifunction machine for polishing and beveling pipes, ideal for both vertical and horizontal operations. Equipped with dust extraction connection and a pedestal with support for optional rollers of various sizes. Features two belt speeds and a special pipe clamping vise. Manufactured in compliance with CE standards, includes standard Ø28 mm rollers.
Main Features
• Multifunction machine for pipe polishing and beveling
• Suitable for both vertical and horizontal operations
• Equipped with dust extraction connection
• Pedestal with support for optional rollers from Ø20–76 mm
• Two-speed machine with exclusive pipe clamping vise
• Supplied with standard Ø28 mm rollers
• Manufactured according to CE standards
Optional Accessories
Available abrasive belts:
- Model FTX-76C 2000x100mm Corundum (A36, A60, A80, A120)
- Model FTX-76C 2000x100mm Zirconium (Z36, Z60, Z80, Z120)
Optional rollers:
- Ø20mm (Code 442170000/R20)
- Ø26mm (Code 442170000/R26)
- Ø32mm (Code 442170000/R32)
- Ø42mm (Code 442170000/R42)
- Ø48mm (Code 442170000/R48)
- Ø60mm (Code 442170000/R60)
- Ø76mm (Code 442170000/R76)
Technical Data
| Description | Value |
|---|---|
| Power supply | 400 - 50 V |
| Power | 2.2 – 3 kW |
| Speed | 15 / 30 m/sec |
| Belt dimensions | 2000 x 100 mm |
| Sanding angle | 30° – 90° |
| Dimensions | 1370 x 620 x 660 mm |
| Net/Gross weight | 188 / 218 kg |
| EAN Code | 8423640500662 |
