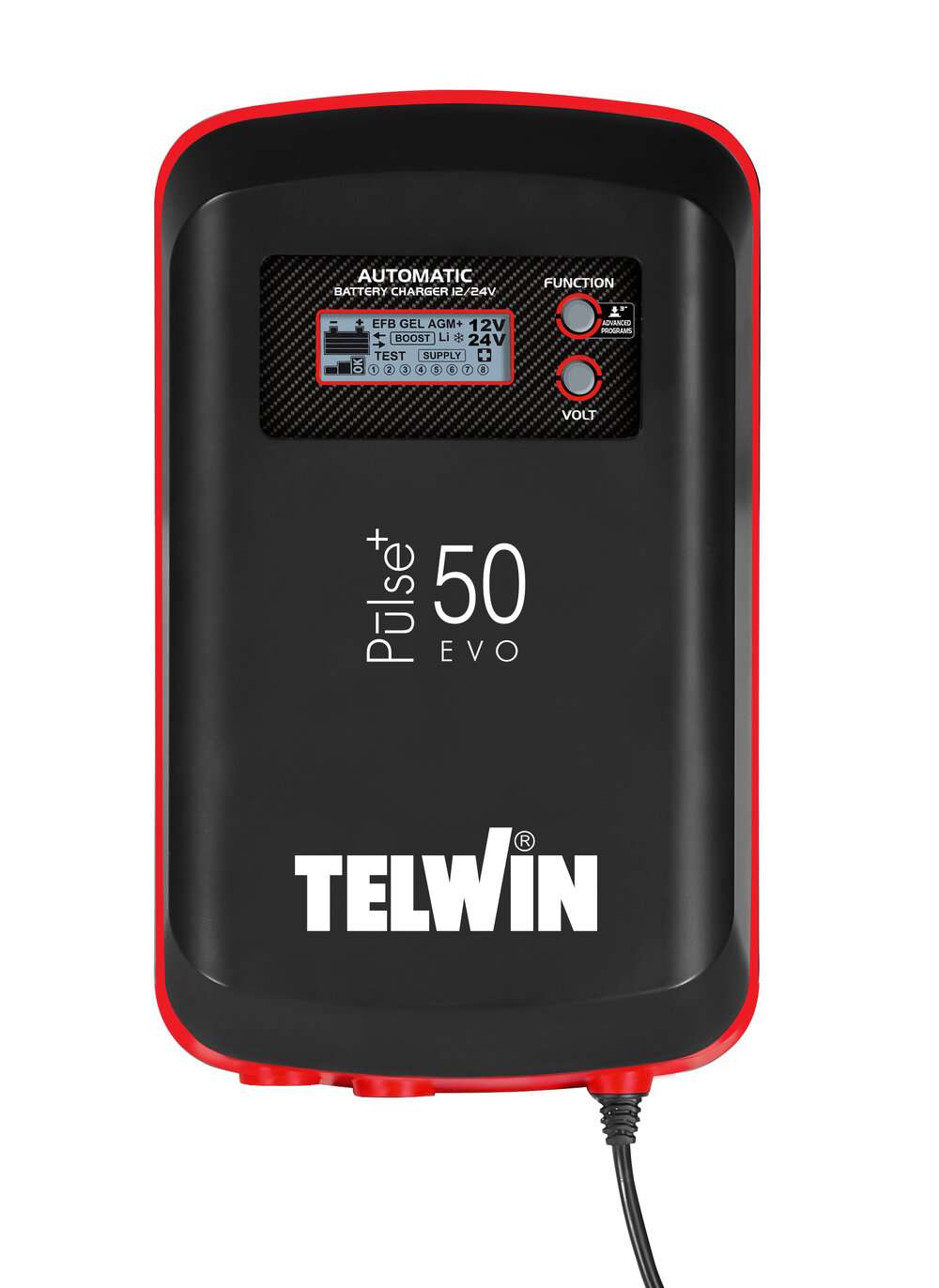

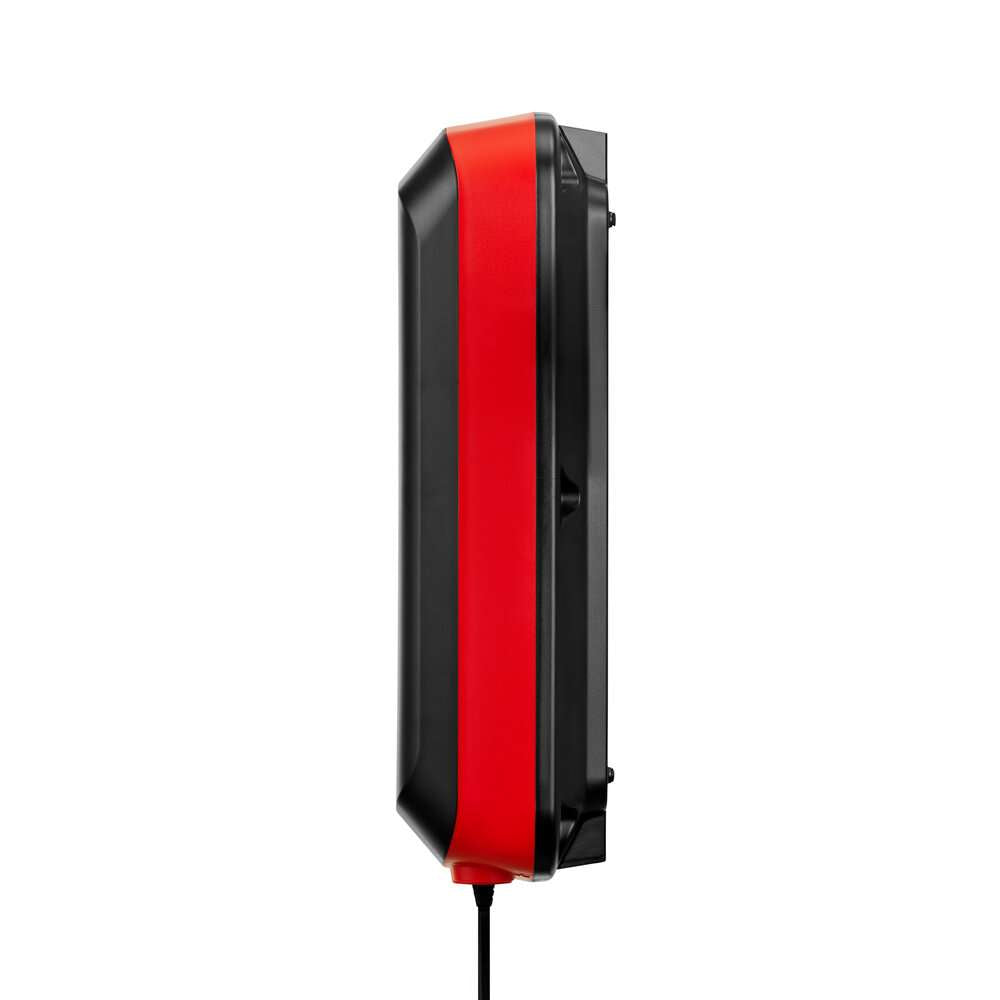

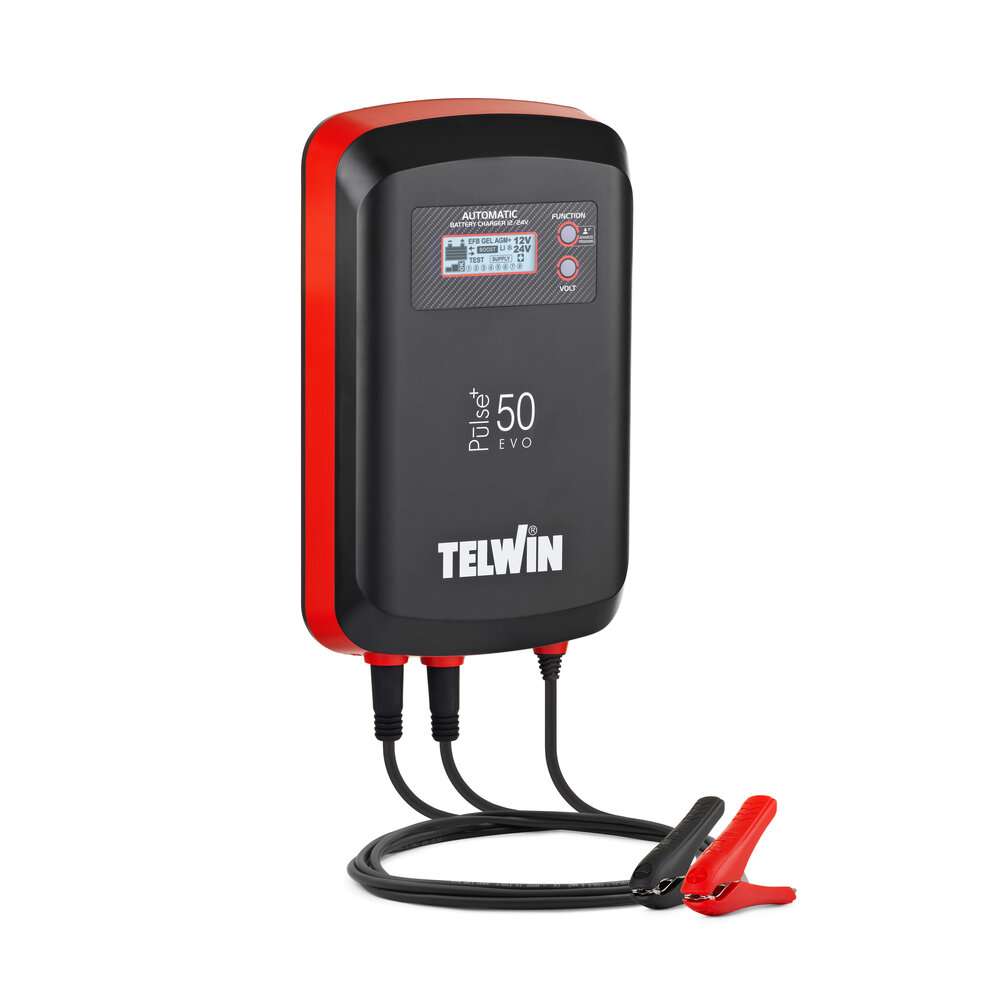

PULSE 50 EVO

Multi-functional electronic battery charger, trickle charger and tester for WET, GEL, AGM, MF, PbCa, EFB, Li 12V/24V batteries with LCD display.
Charging and maintenance programs in Pulse Tronic dedicated to the technology of the selected battery. BOOST function for quick charge. Advanced function for charging and maintenance of batteries at low temperatures. Activation of the RECOVERY function enables resetting of sulphated batteries. Tests the vehicle alternator and battery.

Continuous and reliable power supply source during battery changes.

Simplified use and immediate display of the parameters thanks to the LCD display.
Features:
- Automatic charge and maintenance in Pulse Tronic based on the technology of the selected battery;
- BOOST function for quick charge of the batteries;
- COLD function to charge and maintain batteries at low temperatures;
- RECOVERY function to recover sulphated batteries;
- TEST function for battery, starting and alternator;
- SUPPLY function for stable power supply during battery changing;

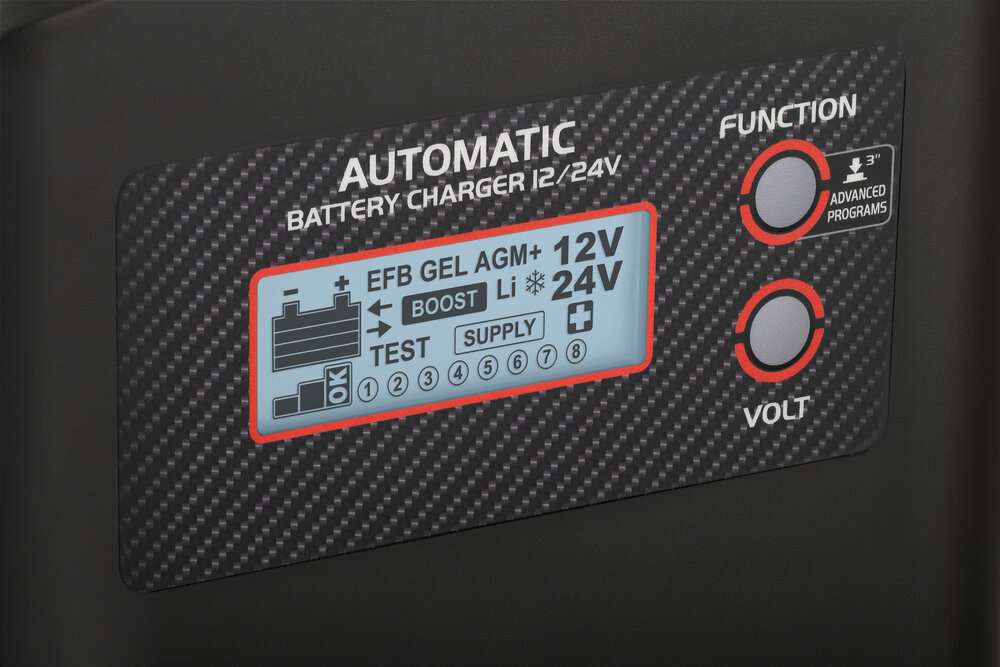

- LCD display;
- Battery voltage selection;
- Protection against overcharge, short circuit and polarity reversal.
Fit with PFC device.

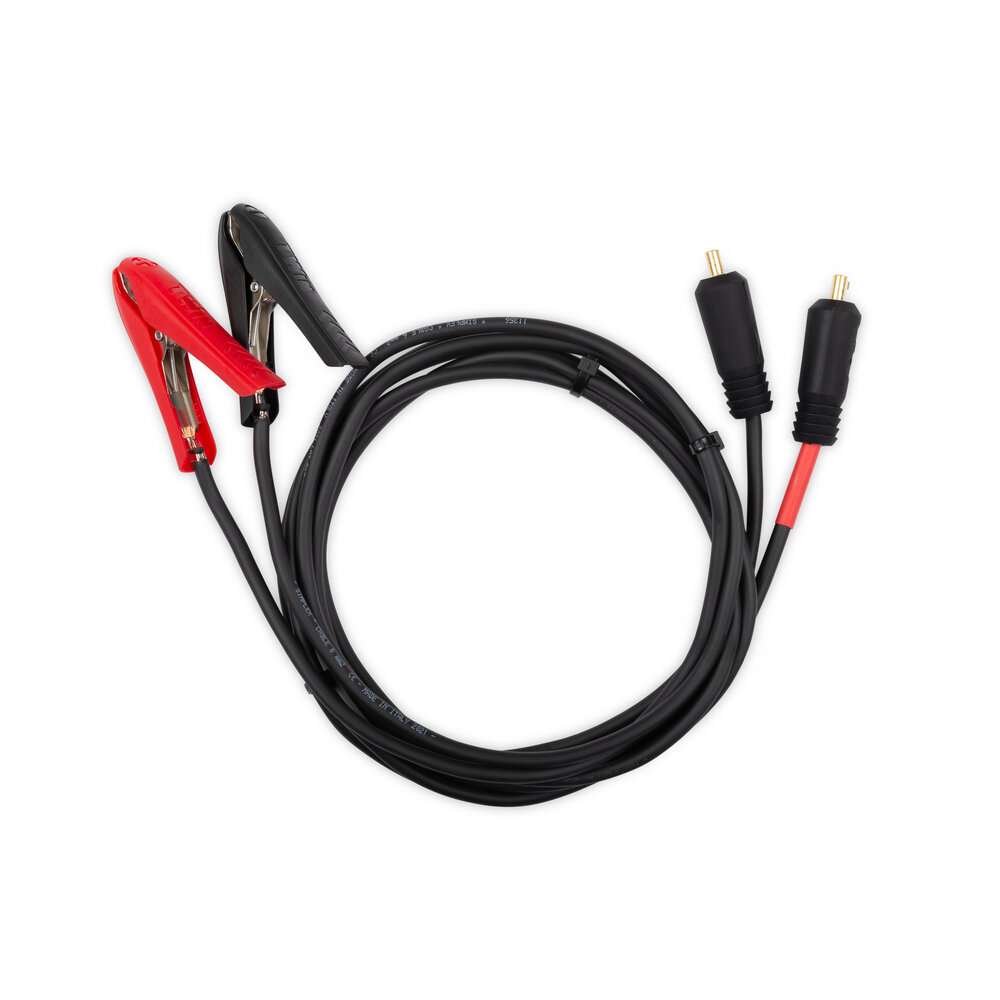

Complete with cables with clamps.

Technical data

MIN. RATED REFERENCE CAPACITY 10 Ah

SINGLE PHASE MAINS VOLTAGE 230 V

MAX RATED REFERENCE CAPACITY 600 Ah

MAINS FREQUENCY 50 / 60 Hz

PROTECTION DEGREE IP33

CHARGING ABSORBED POWER 610 W

DIMENSIONS 9,2x20x33 cm

CHARGING VOLTAGE 12 / 24 V

WEIGHT 3,13

EFFECTIVE CHARGING CURRENT 45 / 23 A

PIECES/PALLET 99 pz/pallet

RATED CHARGE CURR. EN60335-2-29 40 / 20 A

PIECES/PALLET - B 88 pz/pallet B

START CURRENT 1V/C EN60335-2-29 40 A
