Manual and Controlled Descent Bandsaw BF 270 SC M 230V
Description

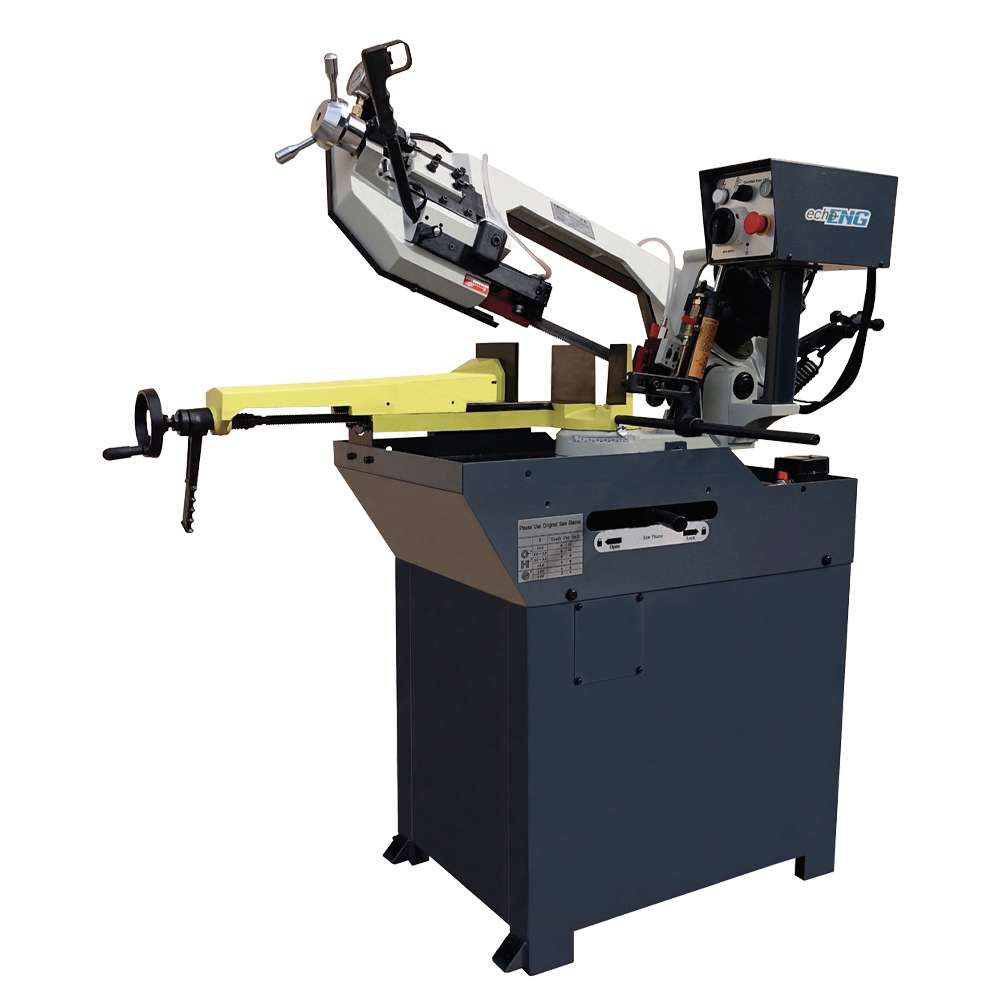

The ENG PRO BF-270-SC M is a professional bandsaw with controlled manual descent, designed for precision metalworking. Ideal for workshops and industrial environments, it enables angled cuts up to 60° with a 260 mm vise, ensuring reliability and safety in every operation.
Main Features
- Quick-action vise
- Swiveling head from 0–60°
- Lubrication pump with dual circuit
- Arm descent by hand or with manual hydraulic control
- Adjustable angle cutting stop
- Automatic stop at end of cut
- Blade mounted on cast iron flywheels supported by ball bearings
- Blade safety micro-switch
- Safety micro-switch on blade guard opening
- Main switch and emergency stop switch

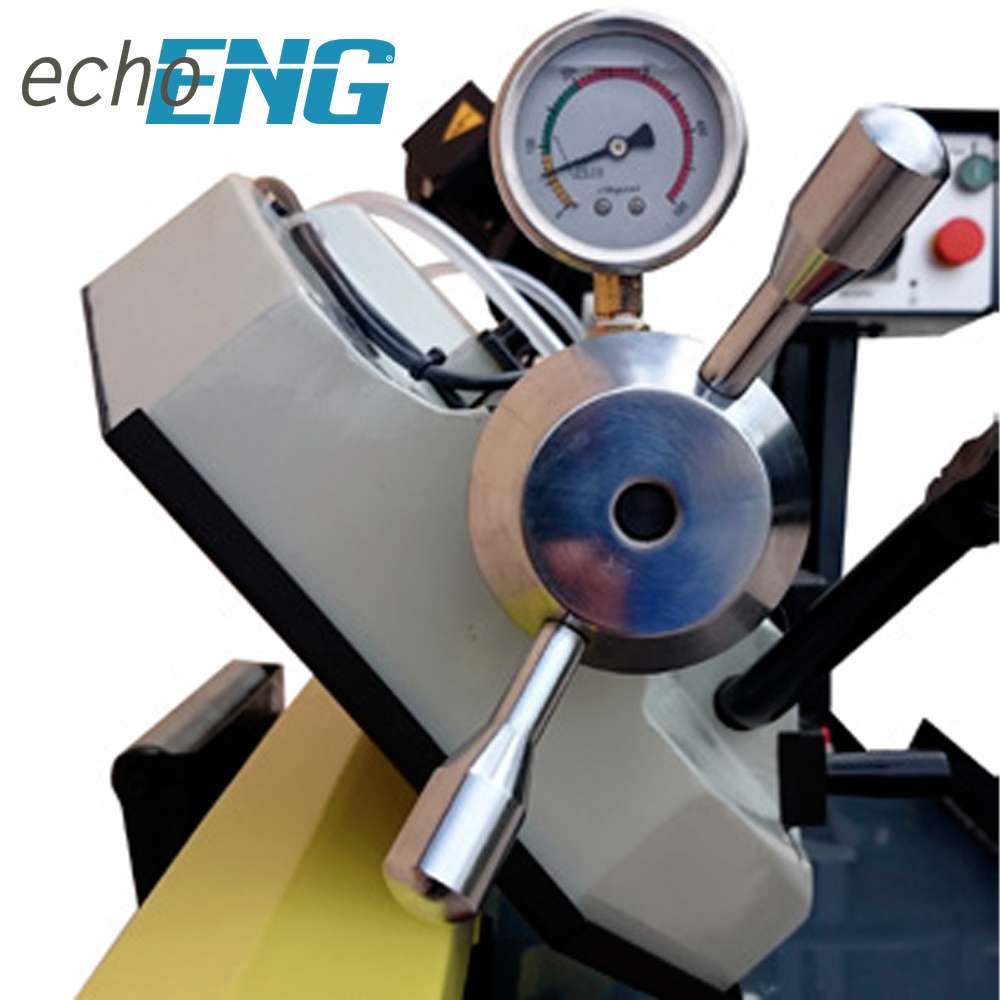

- Blade tensioner with handwheel and pressure gauge
- Machines manufactured according to CE standards
Technical Specifications
| Model | BF-270-SC M |
| Power Supply | 230 V - 50 Hz |
| Power | 1.1 kW |
| Blade Speed | 702 RPM |
|
Cutting Capacity at 90° Ø □ ▭ | Ø 227 / 260x110 / 220x220 mm |
|
Cutting Capacity at 45° Ø □ ▭ | Ø 150 / 200x125 / 145x145 mm |
|
Cutting Capacity at 60° Ø □ ▭ | Ø 90 / - / 85x85 mm |
| Vise Opening | 260 mm |
| Blade Size | 2455 x 0.9 x 27 mm |
| Weight | 190 / 263 kg |
| Machine Dimensions | 1460 x 720 x 1100 mm |
| Product Code | 8423640500907 |
Included Accessories
Optional Accessories: Bandsaw Blades
| Blade Model | Dimensions | Teeth per Inch | Code |
| 6 / 4 | 2450 x 27 x 0.9 mm | 2 | 42112300 / 8243626406545 |
| 8 / 5 | | 2 | 42112300 / 8243626406572 |
| 6 / 10 | | 2 | 42112300 / 8243626406460 |
| 8 / 12 | | 2 | 42112300 / 8243626406519 |
| 10 / 14 | | 2 | 42112300 / 8243626406492 |
| 8 / 14 | | 2 | 42112300 / 8243626406407 |
