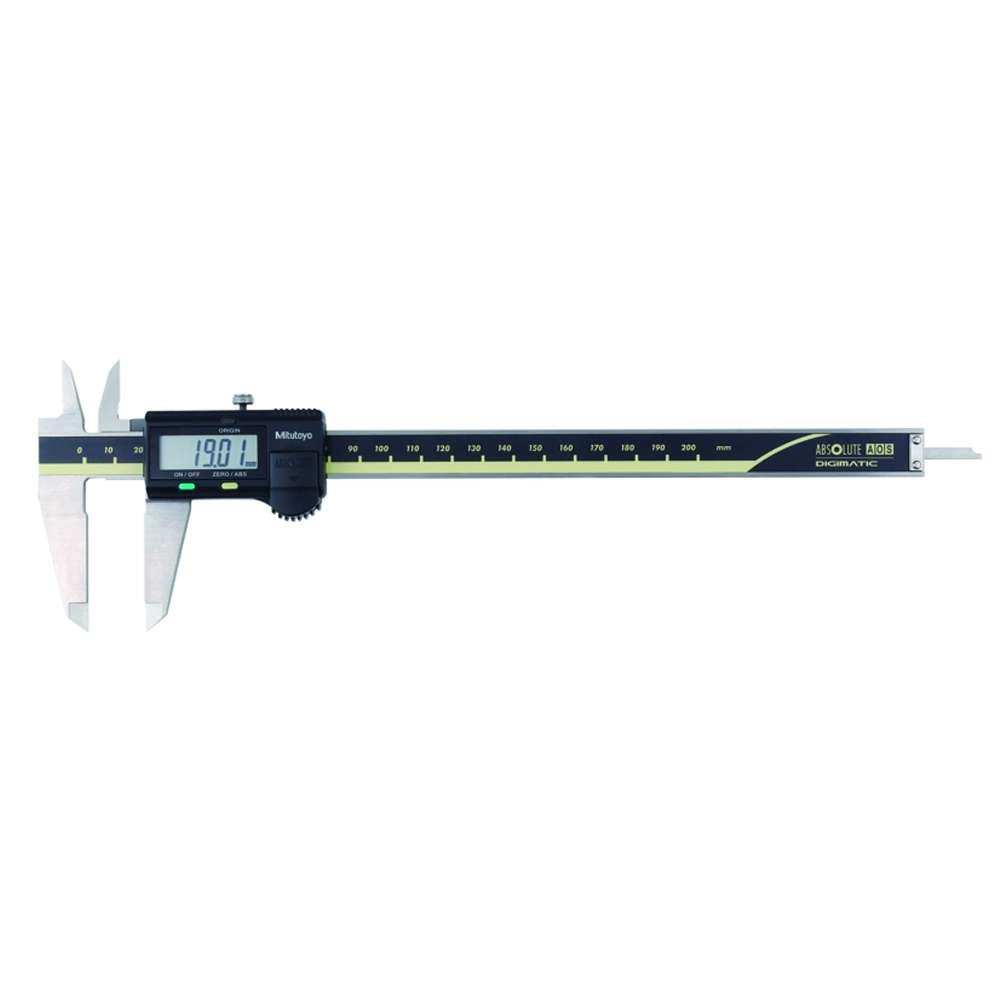

ABS AOS Digital Caliper 0–200 mm, Blade Type – Fast and Reliable Precision

The ABS AOS 0–200 mm blade-type digital caliper, without data output, is a professional measuring instrument designed to ensure fast, accurate, and consistent measurements, even in demanding working environments. It belongs to the Digimatic AOS caliper family and is equipped with the new AOS (Advanced Onsite Sensor) induction encoder, the same technology used in top-of-the-range waterproof calipers.

Thanks to the ABS electromagnetic induction encoder, the caliper is not affected by the presence of oil, water, or other contaminants on the scale surface, ensuring stable and reliable readings over time. The ABS (ABSOLUTE) system allows measurements to begin immediately upon power-on, eliminating the need for zero-setting and significantly improving operational efficiency.

The high-quality surface finish ensures smooth, fluid, and precise slider movement, while the high-contrast LCD display, with 9 mm character height, provides clear and immediate readability, reducing eye strain. The long-life battery, lasting up to approximately 5 years under normal operating conditions, makes this caliper ideal for intensive use with minimal maintenance requirements.

The blade-type configuration makes it particularly suitable for specific measuring applications, while maintaining high standards of precision and reliability. It is the ideal choice for machine shops, quality control, industrial maintenance, and professional machining operations.

Technical Specifications

• Measuring range: 0 – 200 mm

• Resolution: 0.01 mm

• Maximum permissible error (full range): ±0.02 mm

• Maximum permissible error S MPE: ±0.04 mm

• Depth rod: flat

• Response speed: unlimited

• Display: high-contrast LCD, 9 mm character height

• ABS system (absolute): yes

• Functions: ON/OFF, ZERO / ABS, ORIGIN

• Low battery alarm: yes

• Data output: no

• Battery life: approx. 5 years

• Weight: 194 g

• Supplied with: protective case and 1 battery included
