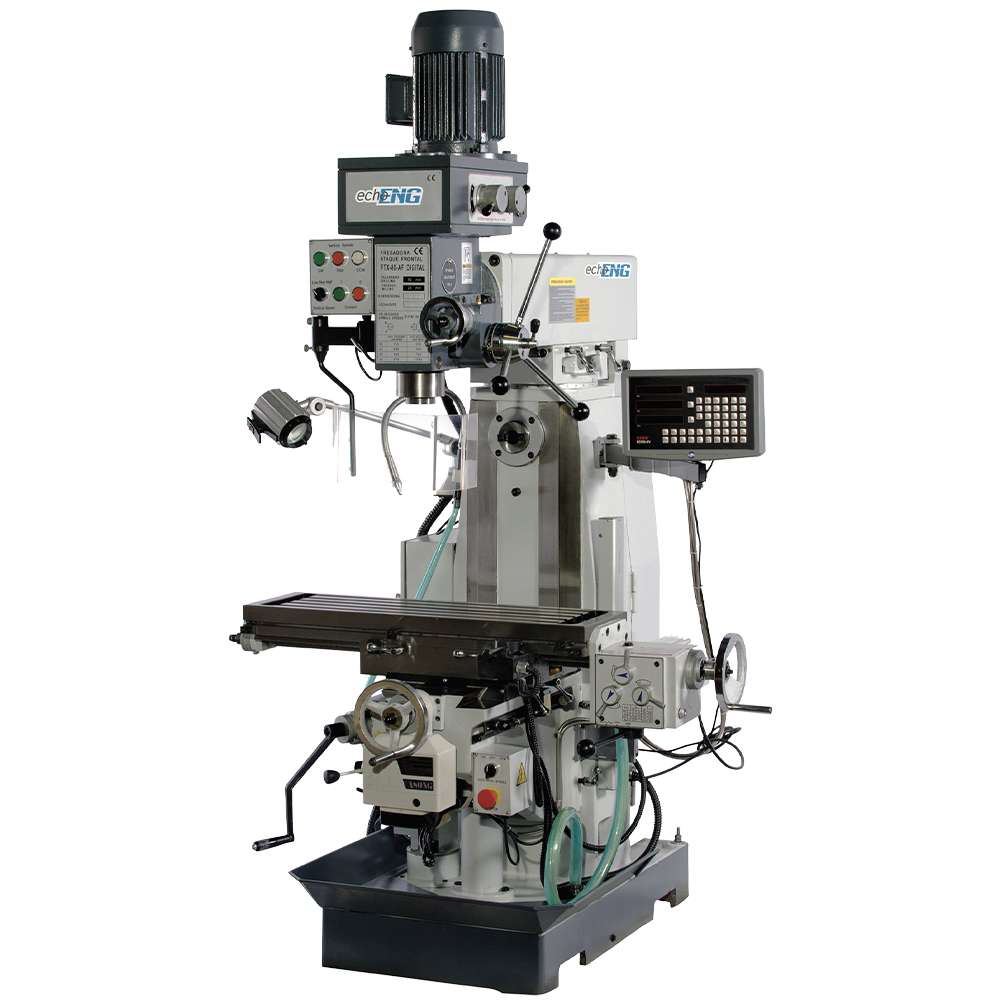

Universal Milling Machine with Digital Readout FTX-80-FC Visual 400V
Product Description
The FTX-80-FC Visual 400V is a professional universal milling machine with gear transmission, equipped with a digital readout on the X-Y-Z axes and a high-precision cross table. Designed to ensure strength, precision, and safety, it is ideal for mechanical workshops and industrial maintenance.
Main Features
Professional universal milling machine with gear transmission, robust design, and front connection
High-precision cross table
Automatic feed on X and Y axes
Manual movement on Z axis
±90° tilting head
Cooling system
Standard lamp
Coordinate digital readout
Safety micro-switch protection
Machine built in accordance with CE regulations
Drawbar available on request
ISO 40 spindle available on request
Safety micro-switch protection
Technical Specifications
| Specification | Value |
|---|---|
| Power Supply | 400V - 50Hz |
| Power | 2.2 kW |
| Spindle Motor Power (Vertical/Horizontal) | 2 Motors x 1.5 kW |
| Number of Speeds (Vertical/Horizontal) | 8 / 9 |
| Speed Range | 115–1,750 / 60–1,350 RPM |
| Digital Readout (X, Y, Z) | Yes |
| Max. Drilling Capacity | 50 mm |
| Max. Vertical Milling Capacity | 25 mm |
| Max. Horizontal Milling Capacity | 100 mm |
| Max. Tapping Capacity | M16 |
| Morse Taper | MT4 |
| T-slot Size | 14 mm |
| Spindle-to-Column Distance | 200 – 700 mm |
| Spindle-to-Table Distance | 70 – 420 mm |
| Spindle Travel | 120 mm |
| Longitudinal Travel (X-axis) | 230 mm |
| Cross Travel (Y-axis) | 350 mm |
| Vertical Travel (Z-axis) | 360 mm |
| Table Size | 800 x 240 mm |
| Machine Dimensions | 1,290 x 1,220 x 2,100 mm |
| Weight | 970 kg |
| Product Code | 8423640963412 |
Standard Accessories
Morse taper MT4
Cooling system
Halogen work lamp
Collet set 4–16 mm with collet holder
Horizontal milling arbor Ø22 and Ø27
Clamping fixture
Toolbox
B18 drill chuck 1–16 mm
MT4/MT3 reducer
MT4/MT2 reducer
Morse taper MT3
