Description

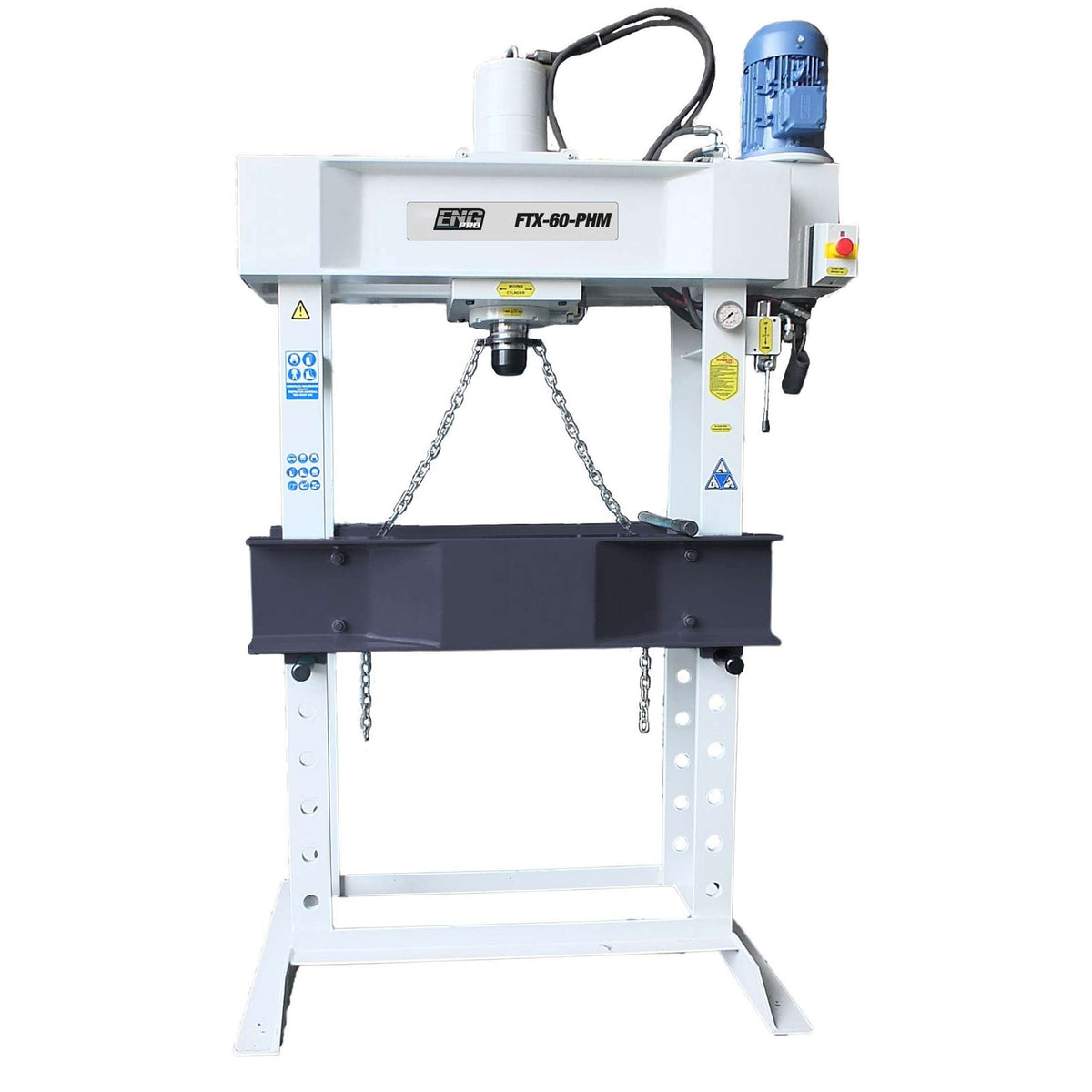

Professional Hydraulic Press FTX-60-PHM 60 Ton 400V Three-Phase with Mobile Piston and V-Block
The FTX-60-PHM hydraulic press is a high-performance professional machine designed to ensure maximum safety, operational precision, and long service life for pressing, bending, and assembly operations in industrial and workshop environments.
Built with a robust all-steel structure, the press provides high mechanical strength even under intensive loads. The mobile piston is equipped with a stainless steel shaft with hardened chrome coating, ensuring smooth operation, wear resistance, and consistent precision over time.
The machine features a piston safety system, a motor safety switch, and an emergency stop button, ensuring use in compliance with professional safety standards. The movable lower table allows quick adaptation to different applications, enhancing operational versatility.
A V-block is included as standard, ideal for bending operations and precise centering of workpieces. The 60-ton pressing force, combined with the 400V three-phase motor, makes the FTX-60-PHM a reliable and high-performance solution for mechanical workshops, metal fabrication shops, and industrial production environments.
Technical Specifications
| Feature | Value |
|---|---|
| Power Supply | 400V / Three-Phase (F3) |
| Power | 2.2–3 / 3–4.5 kW / HP |
| Pressing Force | 60 ton |
| Maximum Pressure | 300 kPa |
| Pump Flow Rate | 9.5 l/min |
| Cylinder Stroke | 400 mm |
| Usable Working Width | 900 mm |
| Net / Gross Weight | 636 / 637 kg |
| Machine Dimensions | 1300 × 750 × 2370 mm |
| Included Equipment | V-block included (36 kg) |
