Description

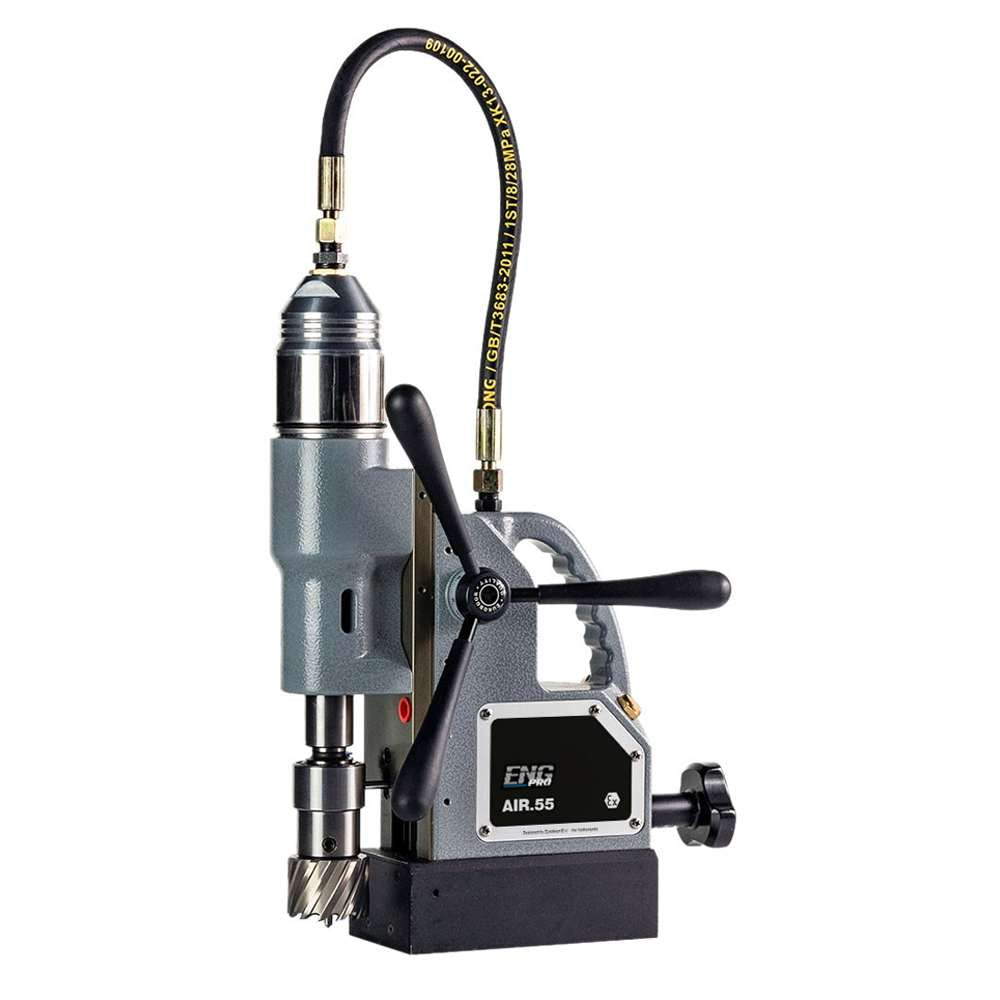

The AIR.55 Pneumatic Magnetic Drill is designed for use in high-risk industrial environments, where operational safety, continuous operation, and reliability are essential requirements. The spark-free pneumatic motor, the antistatic construction, and the protective casing make this machine particularly suitable for applications in potentially explosive atmospheres.
The automatic lubrication system ensures smooth operation over time, reducing wear on internal components and improving overall reliability. The long feed stroke allows for the drilling of deep holes with high precision and stability.
The magnetic base with fail-safe permanent magnet system guarantees a constant holding force even without electrical power, eliminating any risk of detachment due to power interruptions. This makes the drill extremely safe even in the most critical operating conditions.
Also available with a permanent magnetic base specifically for pipes and flat surfaces, the AIR.55 provides a strong hold across a wide range of steel thicknesses, making it a versatile and reliable solution for construction sites, industrial plants, heavy maintenance, and the petrochemical sector.
Technical Specifications
| Feature | Value |
|---|---|
| Power Supply | Pneumatic |
| Maximum Operating Pressure | 8 bar |
| Air Consumption | 1.1 m³/min |
| Annular Cutters | Ø 12 – 52 mm (HSS) / Ø 12 – 55 mm (TCT) |
| Twist Drills | Ø 1 – 23 mm |
| Countersinking | Ø 10 – 55 mm |
| Maximum Stroke | 167 mm |
| Magnetic Base Dimensions | 183 × 100 × 55 mm |
| Rotation Speed | 380 rpm |
| Spindle Taper | MT3 – 19.05 mm (3/4") |
| Magnetic Holding Force | 8,826 N |
| Net / Gross Weight | 16.5 / 17.5 kg |
