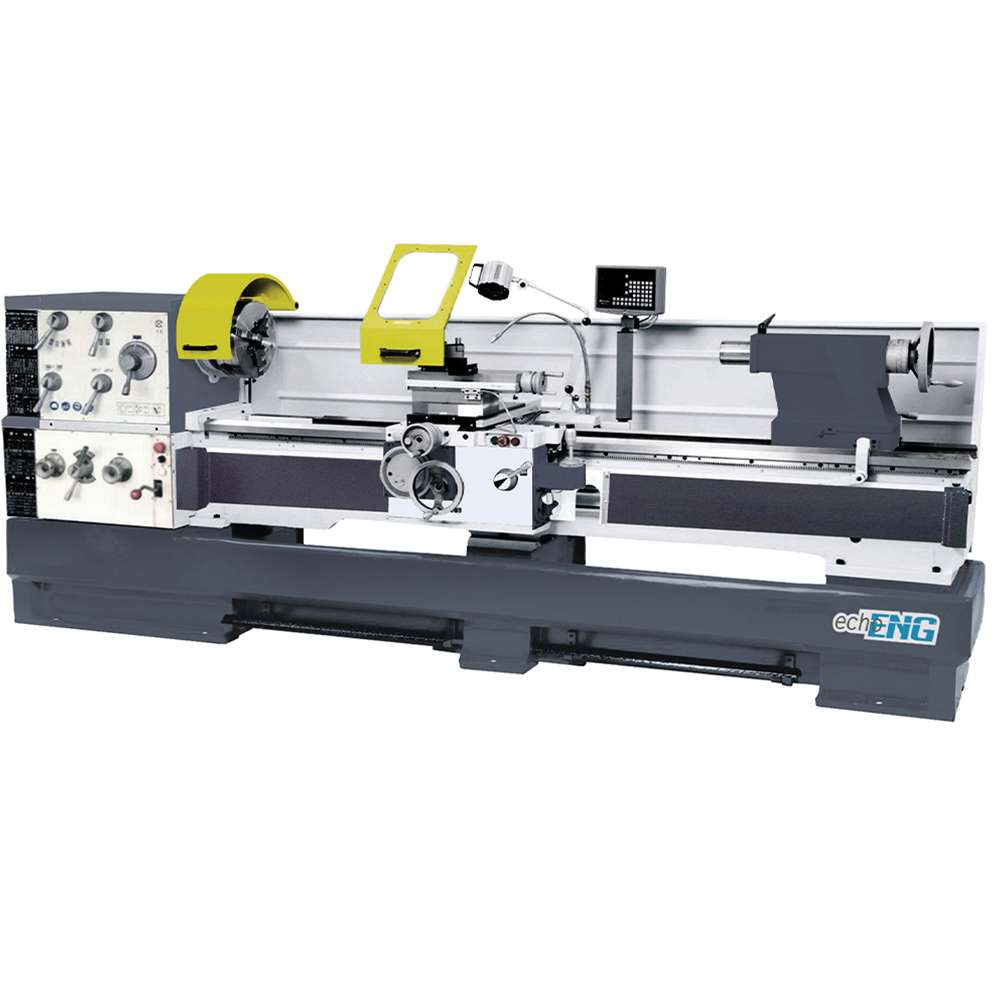

Parallel Lathe with Digital Readout FTX-3000X660-TO DCR 400V
A parallel lathe for professional machining, designed to ensure high performance, precision, and safety. Robust construction with ground prismatic guides and large turning capacity. Equipped with a digital readout on the X-Y axes for maximum machining precision.
Main Features:
Lathe for professional machining, robust design with hardened and ground prismatic guides
Rapid longitudinal and cross feeds
Emergency stop microswitch
Chuck and turret protection
Emergency stop button
Foot brake
Threading indicator
Longitudinal carriage travel stop
Quick-change turret included
Cooling system
Digital readout included as standard
Gear transmission protection
Machine built according to CE regulations
Standard Accessories:
• 3-jaw chuck Ø315 mm with 105 mm bar passage
• 4-jaw chuck Ø400 mm
• Faceplate Ø450 mm
• Fixed and traveling steady rests
• Feed bar protection
• Work lamp
• Morse taper MT5
• Reducing sleeve MT7-MT5
• Tool set
• User and maintenance manual
Technical Table:
| Feature | FTX 3000x660-TO DCR |
|---|---|
| Digital readout X-Y | Yes |
| Power supply | 400 V / 50 Hz |
| Power | 7.5 kW |
| Transmission | Gears |
| Swing over bed | 660 mm |
| Swing in gap | 900 mm |
| Swing over carriage | 440 mm |
| Spindle bore | 105 mm |
| Distance between centers | 3000 mm |
| Spindle taper | MT7 |
| Tailstock taper | MT5 |
| Tailstock diameter | 90 mm |
| Tailstock stroke | 235 mm |
| Number of speeds | 16 |
| Speed range | 25 - 1600 RPM |
| Longitudinal feeds | 0.044 - 1.28 mm/rev |
| Cross feeds | 0.022 - 0.74 mm/rev |
| Metric threading | 54 pitches / 0.45 - 120 mm |
| Imperial threading | 54 pitches / 7/16 - 80 TPI |
| Diametral pitch | 42 pitches / 7/8 - 160 DP |
| Modular pitch | 46 pitches / 0.25 - 60 MP |
| Net/Gross weight | 3710 / 4310 kg |
| Dimensions | 4740 x 1140 x 1840 mm |
| Barcode | 8423640293953 |
