Description

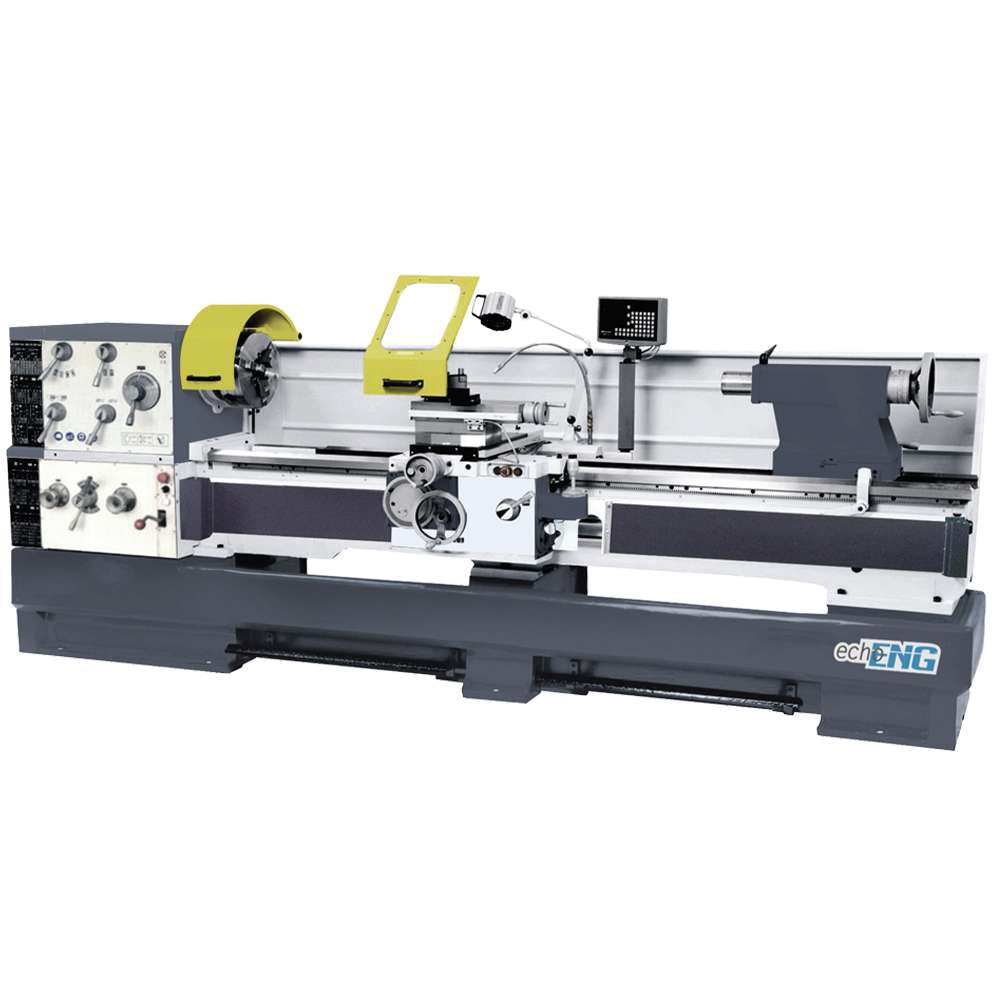

Parallel Lathe with Digital Readout FTX-2000X660-TO DCR 400V ENG PRO
The FTX-2000X660-TO is a parallel lathe designed for professional machining operations. Featuring a robust design and a comprehensive set of standard equipment, it ensures precision, safety, and reliability. Ideal for general turning, workshops, and industrial maintenance.
Main Features
- Lathe for professional machining, robust design with hardened and ground guideways.
- Rapid longitudinal and cross feeds.
- Emergency stop micro switch.
- Spindle and turret guard.
- Emergency stop button.
- Foot brake.
- Threading indicator.
- Longitudinal carriage travel stop.
- Programmable lubrication system.
- Machine manufactured in compliance with CE standards.
- Bar capacity: 105 mm
- Coolant system.
- Digital readout included as standard.
- Distribution chain guard.
- Automatic longitudinal and cross feed.
Standard Accessories
- 3-jaw chuck Ø315 mm
- 4-jaw chuck Ø400 mm
- Faceplate Ø450 mm
- Fixed and traveling steady rests
- Feed rod guard
- Lamp
- Morse taper MT5
- Reducing sleeve MT7–MT5
- Tool set
- Quick-change tool post included
Technical Specifications
| Digital Readout X-Y (DRO X-Y) | Yes |
| Power Supply | 400V - 50 Hz |
| Power | 7.5 kW |
| Transmission | Gears |
| Turning Diameter Over Gap | 900 mm |
| Turning Diameter Over Bed | 660 mm |
| Turning Diameter Over Cross Slide | 440 mm |
| Spindle Bore Diameter | 105 mm |
| Distance Between Centers | 2000 mm |
| Spindle Taper | MT7 |
| Tailstock Taper | MT5 |
| Tailstock Quill Diameter | 90 mm |
| Tailstock Quill Travel | 235 mm |
| Number of Speeds | 16 |
| Speed Range | 25–1600 RPM |
| Metric Threading | 54 threads / 0.45–120 mm |
| Inch Threading | 54 threads / 7/16–80 TPI |
| DP Threading Range | 42 threads / 7/8–160 DP |
| Module Threading Range | 46 threads / 0.25–60 Mod |
| Longitudinal Feeds | 0.044–1.28 mm/rev |
| Cross Feeds | 0.022–0.74 mm/rev |
| Weight | 3345 kg |
| Machine Dimensions | 3740x1140x1840 mm |
| Product Code | 8423640293908 |
