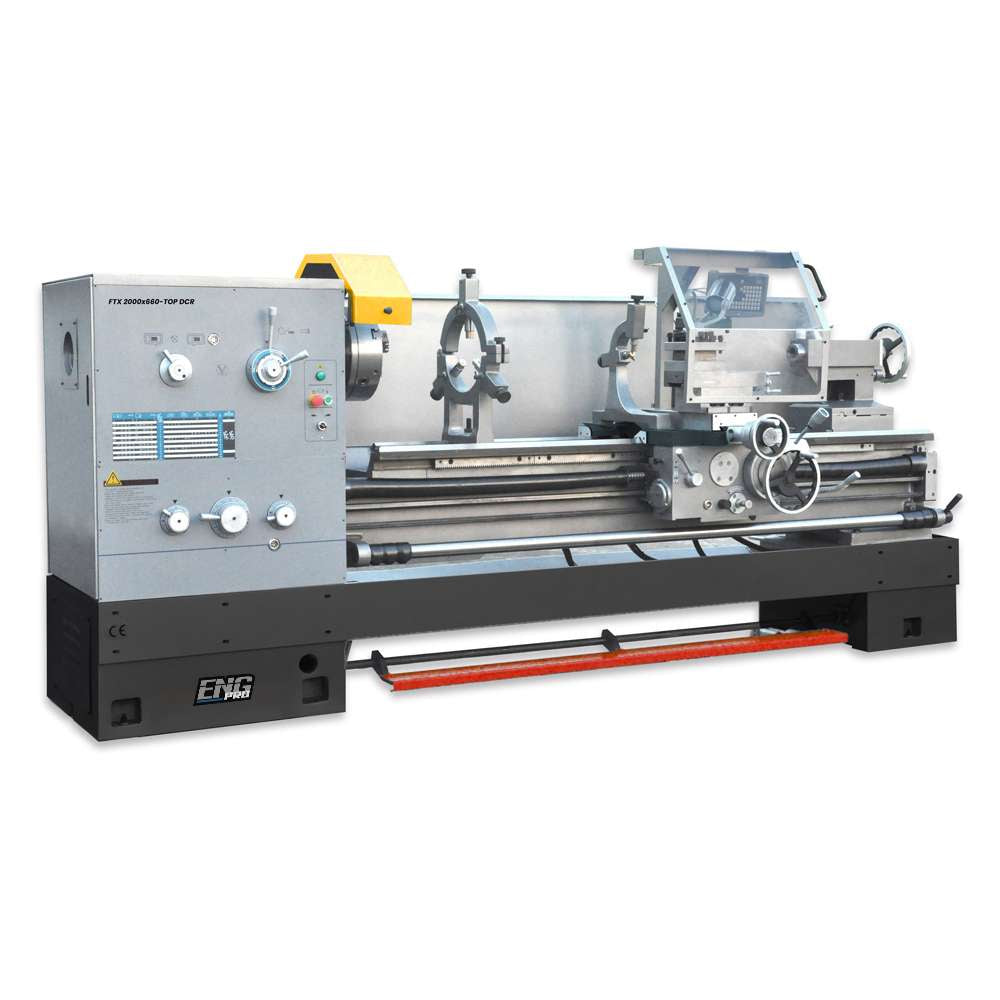

Metal Lathe FTX-2000X660-TOP DCR
The FTX-2000X660-TOP DCR is a professional metal lathe designed for high-precision machining on large workpieces. Its extremely robust structure, featuring laminated and ground prismatic guides and a hardened carriage (HRC43), ensures rigidity, stability, and consistent accuracy even under heavy loads.
With a distance between centres of 2000 mm and a maximum swing over bed of 660 mm, this lathe is ideal for machining shafts, tubes, cylinders, and large components used in mechanical workshops, heavy fabrication, and advanced industrial applications. The 113 mm spindle bore allows the passage of large-diameter bars.
The powerful 10 HP motor, supplied at 400 V three-phase, is matched with a 12-speed mechanical gearbox, providing a rotation range from 36 to 1600 rpm. This allows both high-torque roughing operations and extremely precise finishing work.
The lathe is equipped with automatic longitudinal and cross feeds, and the intermediate carriage features rapid feeds:
– 4500 mm/min longitudinal
– 1900 mm/min cross
The machine includes numerous professional safety devices: micro-switches on guards, spindle safety mechanism, emergency stop, foot brake, chuck guard, and tool post protection. Standard equipment also includes X/Y digital readout, threading dial, steady rest, tailstock, and longitudinal feed limit stops, in full compliance with CE standards.
The FTX-2000X660-TOP DCR is the ideal solution for companies requiring a highly reliable, powerful, and versatile lathe capable of delivering high performance and repeatability in demanding industrial machining operations.
Technical Specifications
| Feature | Value |
|---|---|
| X/Y coordinate display | Yes |
| Power supply | 400 V / 3-Phase |
| Motor power | 7.5 – 10 kW-HP |
| Speed change system | Gear transmission |
| Swing over bed | 660 mm |
| Swing over gap (under headstock) | 870 mm |
| Swing over cross slide | 420 mm |
| Spindle bore diameter | 113 mm |
| Distance between centres | 2000 mm |
| Headstock taper | 1:20 |
| Tailstock taper | MT5 |
| Tailstock diameter | — |
| Tailstock quill travel | 150 mm |
| Number of speeds | 12 |
| Speed range | 36 – 1600 rpm |
| Longitudinal feed range | 0.063 – 2.52 mm/rev |
| Cross feed range | 0.027 – 1.07 mm/rev |
| Rapid feed (intermediate carriage), longitudinal | 4500 mm/min |
| Rapid feed (intermediate carriage), cross | 1900 mm/min |
| Metric thread range | 22 types / 1 – 14 mm |
| Inch thread range | 26 types / 28 – 2 tpi |
| Diametral pitch threads | 24 types / 56 – 4 d.p. |
| Modular threads | 18 types / 0.5 – 7 m.p. |
| Net / gross weight | 3300 / 3645 kg |
| Machine dimensions | 3650 × 1150 × 2060 mm |
