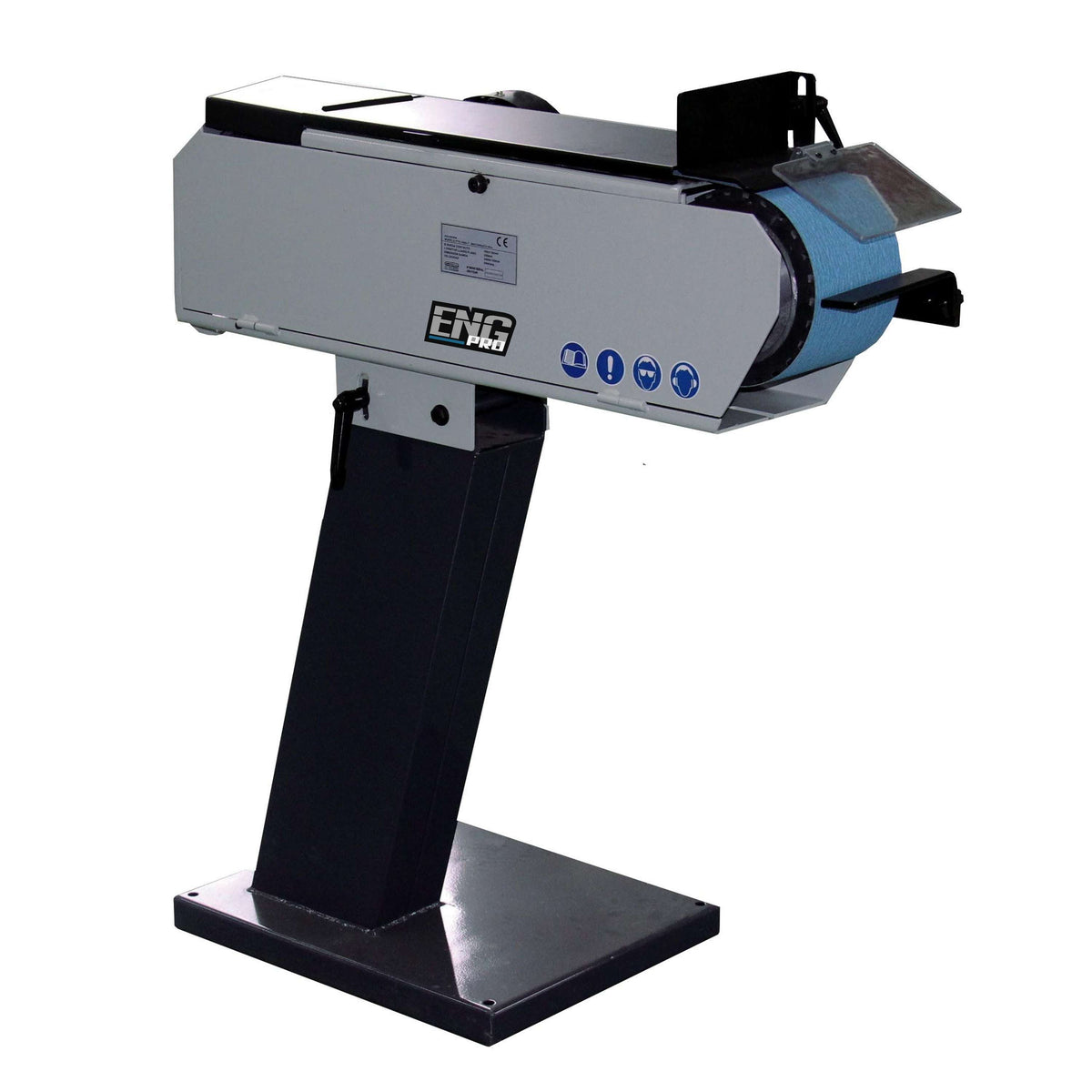

230V Single-Phase Metal Belt Grinder FTX-75-PM 2000×75
The FTX-75-PM belt grinder is a professional machine designed for grinding, satin finishing, and metal finishing operations, making it ideal for mechanical workshops, metal fabrication shops, craft laboratories, and industrial environments.
Featuring a large contact area, the FTX-75-PM ensures uniform and effective processing even on extended surfaces. The large flat top grinding surface allows precise and controlled machining of workpieces with different geometries, improving both the quality of the final result and overall productivity.
Powered by 230V single-phase supply, the machine is equipped with a powerful 3–4 kW/HP motor, capable of delivering constant torque and reliable performance even during intensive use. The optimized working speed and the 2000×75 mm abrasive belt make this grinder particularly suitable for continuous finishing and deburring operations.
Built in compliance with CE regulations, the FTX-75-PM stands out for its robust construction, operational stability, and long-term reliability, representing a complete professional solution for metalworking applications.
Technical Specifications
| Feature | Value |
|---|---|
| Power supply | 230V / Single-phase (F1) |
| Power | 3 – 4 kW / HP |
| Speed | 34 m/min |
| Abrasive belt dimensions | 2000 × 75 mm |
| Contact wheel diameter | 200 × 75 mm |
| Flat grinding length | 530 mm |
| Net / gross weight | 75 / 105 kg |
| Machine dimensions | 1150 × 570 × 570 mm |
