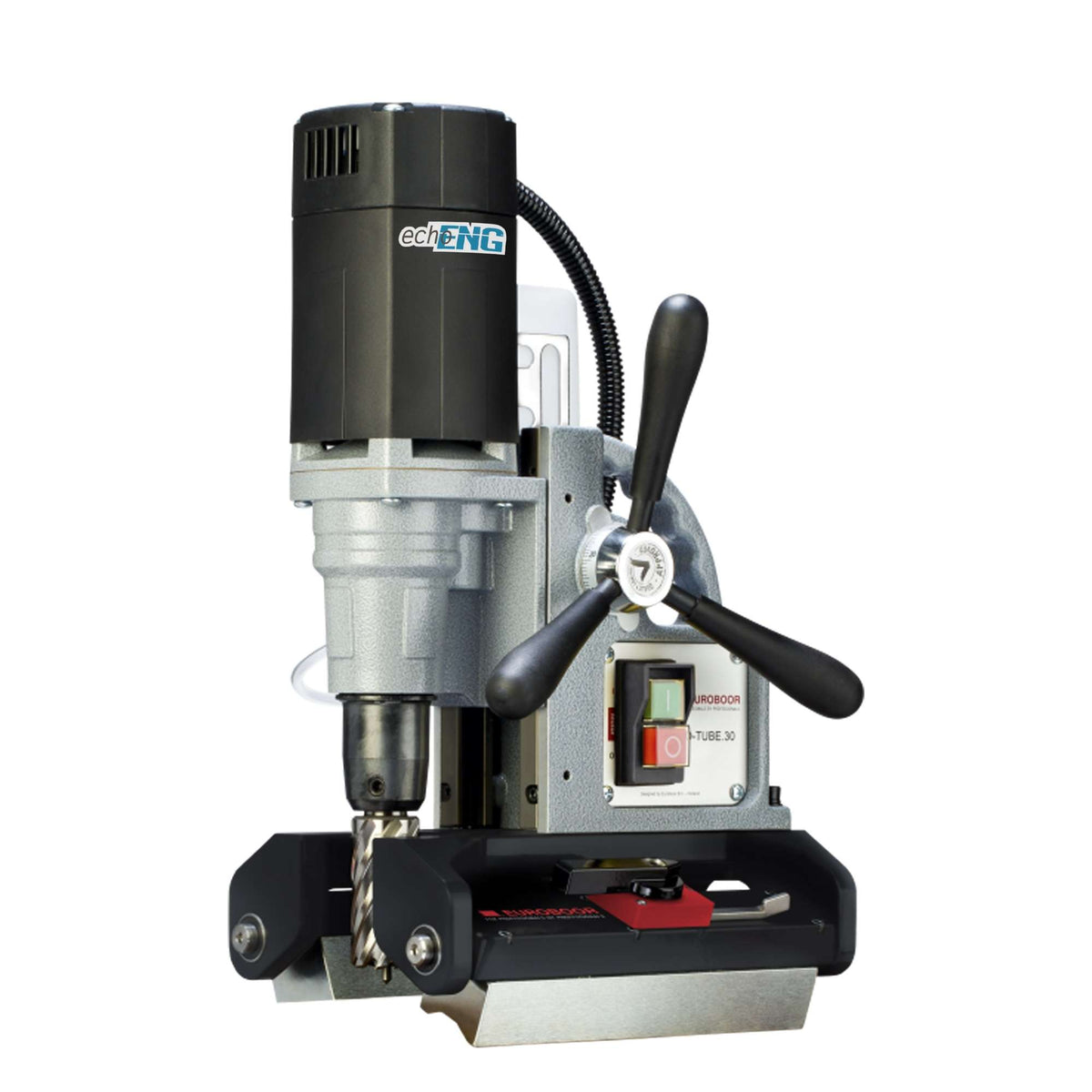

Magnetic Drill Ø 13 mm ECO-TUBE.30 ENG PRO
The ECO-TUBE.30 ENG PRO is a professional magnetic drill designed specifically for safe and efficient operation on curved and tubular surfaces. Thanks to its permanent magnetic base, it does not require electrical power for magnetic adhesion, ensuring maximum stability even under challenging conditions.
Key Features
Permanent magnetic base: no electrical power needed
Suitable for both tubes and flat or curved surfaces
High stability and strong adhesion to metal surfaces
Simple and intuitive operation
Direct spindle drive
Lightweight: only 11 kg
Lubricant tank with overpressure protection
Safe operation without loss of adhesion
Included Standard Accessories
Spindle guard
Allen keys: 2.5 / 3 / 4 / 5 mm
Lubrication system
Cutting oil
Safety chain
IBK.50 spindle extension
IBC.K25 pilot pin for extension
Safety ear protection
Safety glasses
Safety gloves
Carrying case
Technical Specifications
| Specification | Value |
|---|---|
| Voltage | 230 V – 50 Hz |
| Power | 950 W |
| Annular cutter capacity | Ø 12 – 30 mm |
| Twist drill capacity | Ø 13 mm |
| Countersink capacity | Up to Ø 35 mm |
| Max. travel | 90 mm |
| Speed (I) | 400 RPM |
| Morse taper | Weldon 3/4” (19.05 mm) |
| Magnet dimensions | 187 × 165 × 83 mm |
| Magnetic retention capacity | 5,220 N |
| Weight | 11 kg |
EAN Code: 8718375411162
