Description

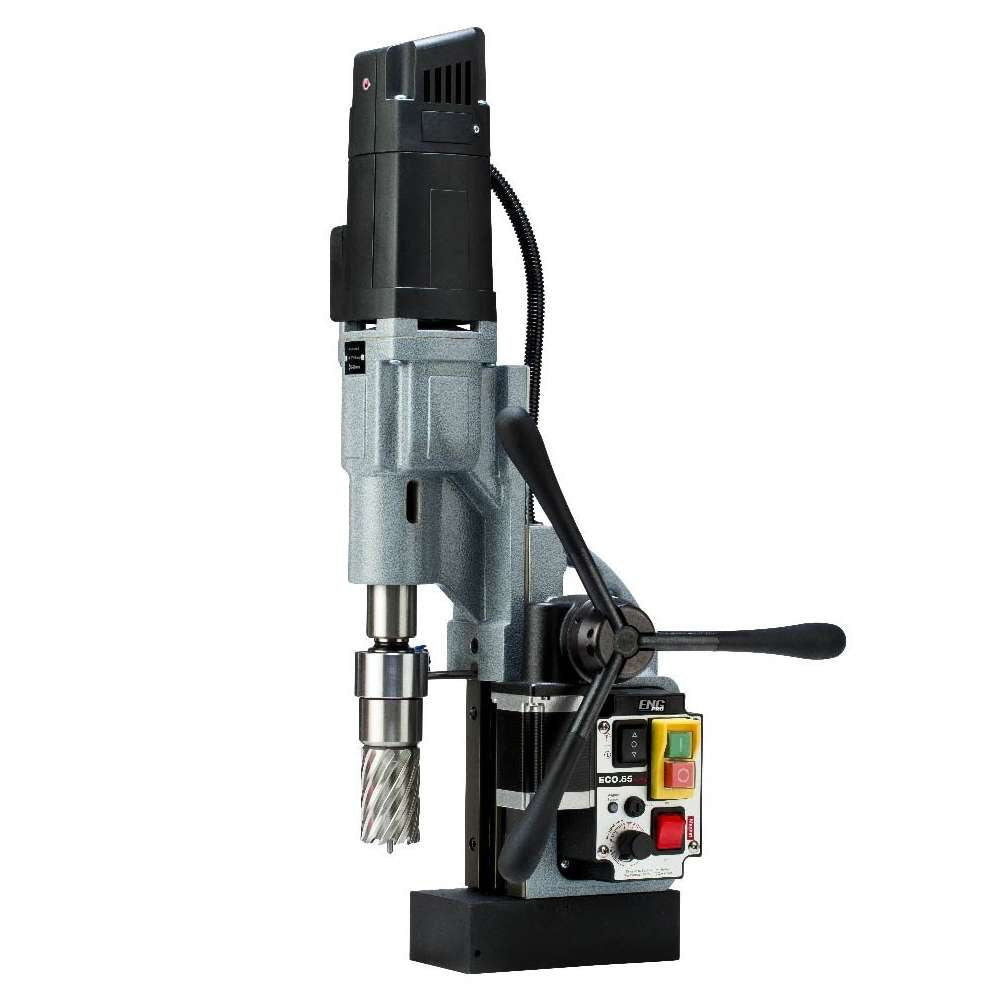

The ECO.55S+/TA (PLUS) Magnetic Drill is a high-end professional machine designed to deliver maximum power, precision, and operational safety in drilling and tapping operations on metal surfaces. The high-precision sliding guide structure ensures stability, rigidity, and smooth feed movements even in the most demanding applications.
Equipped with an integrated 2-speed oil-bath gearbox, it provides constant, quiet, and long-lasting power transmission. The MT3 Morse taper spindle allows the use of large-diameter tools, expanding the machine’s versatility in industrial and maintenance environments.
The ECO.55S+/TA model integrates advanced features such as a digital power display, Smart Restart technology for safe restart after power interruptions, and external access to carbon brushes with automatic shut-off, simplifying maintenance and reducing machine downtime. The high-holding-force magnetic base ensures stable and secure anchoring, reducing vibrations and improving machining quality.
Thanks to its ability to work with annular cutters up to 55 mm, twist drills up to 23 mm, countersinking up to 60 mm, and to perform tapping from M3 to M20, this magnetic drill represents an ideal solution for machine shops, metal fabrication workshops, and professional industrial applications.
Technical Specifications
| Feature | Value |
|---|---|
| Power supply | 230V / F1 |
| Power | 1.7 – 2.31 kW / HP |
| Annular cutters | Ø 12 – 55 mm |
| Twist drills | Ø 1 – 23 mm |
| Countersinking | Ø 10 – 60 mm |
| Maximum stroke | 170 mm |
| Tapping | M3 – M20 |
| Magnetic base dimensions | 168 × 84 × 49 mm |
| Rotational speed | I: 60–275 rpm / II: 100–500 rpm |
| Spindle taper | MT3 – 19.05 mm (3/4") |
| Magnetic holding force | 18,142 N |
| Net / gross weight | 15.8 / 17 kg |
| Transmission | 2-speed oil-bath gearbox |
| Advanced features | Digital power display, Smart Restart |
| Construction features | High-precision sliding guides, external brush access with automatic shut-off |
