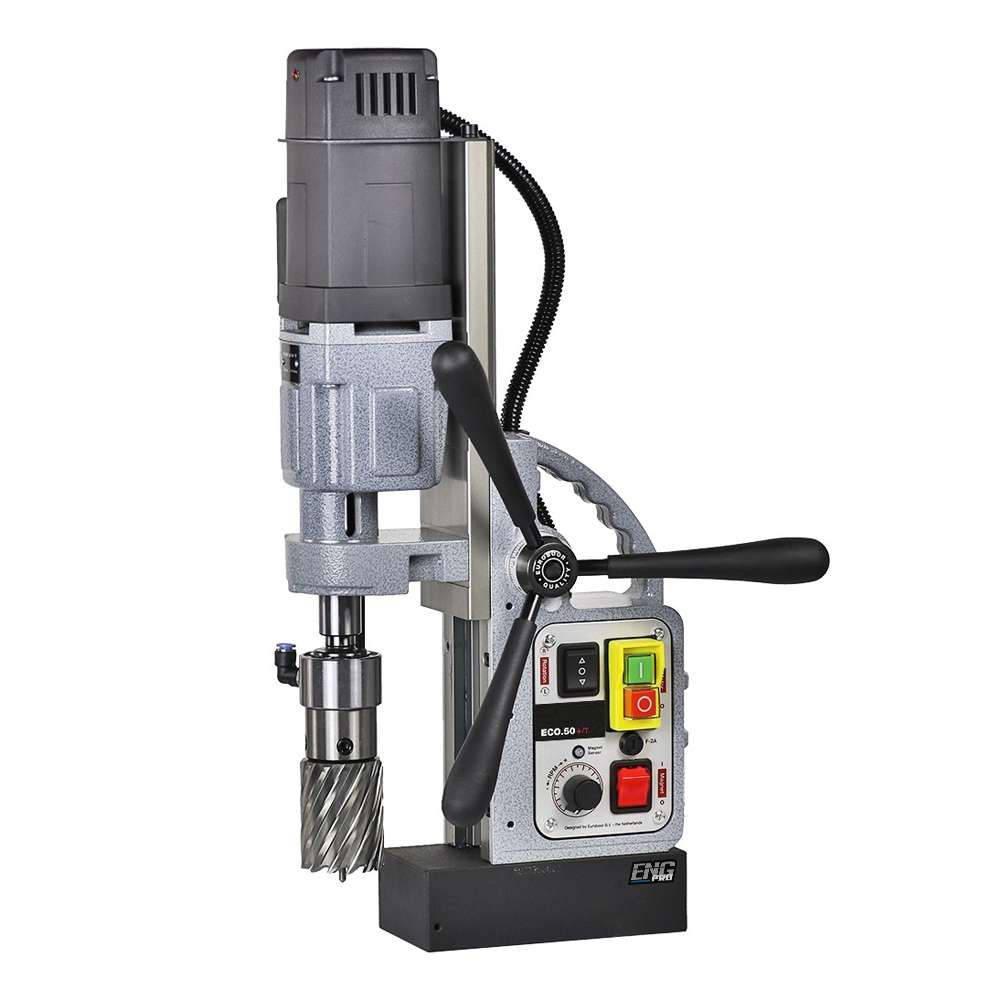

Magnetic Drill ECO.50+/T (PLUS) 230V/F1
The Magnetic Drill ECO.50+/T (PLUS) is a professional solution designed to deliver power, precision, and versatility for drilling and threading operations on metal surfaces. Thanks to its 2-speed gearbox and MT2 spindle, this machine can easily adapt to various applications.
The drill features electronically adjustable rotation, allowing both clockwise and counterclockwise operation for maximum flexibility. The long 170 mm stroke enables work with tools of different lengths and facilitates demanding applications, while the enhanced magnetic base provides stable and secure anchoring to the metal surface, reducing vibrations and improving overall drilling accuracy.
The ECO.50+/T supports annular cutters up to 50 mm, twist drills up to 23 mm, and countersinking up to 55 mm, as well as threading from M3 to M20, making it ideal for professional workshops and complex industrial applications.
Technical Specifications:
| Feature | Value |
|---|---|
| Power Supply | 230V / F1 |
| Power | 1.375 – 1.87 kW / HP |
| Annular Cutters | Ø 12 – 50 mm |
| Twist Drills | Ø 1 – 23 mm |
| Countersinking | Ø 10 – 55 mm |
| Maximum Stroke | 170 mm |
| Threading | M3 – M20 |
| Magnetic Base Dimensions | 170 × 85 × 48 mm |
| Rotation Speed | I: 250 rpm, II: 460 rpm |
| Spindle Taper | MT2 19.05 mm (3/4") |
| Magnetic Adhesion Force | 18,142 N |
| Net / Gross Weight | 13.5 / 14 kg |
| Additional Features | 2-speed gearbox, clockwise/counterclockwise rotation, electronic speed adjustment, long stroke |
