Description

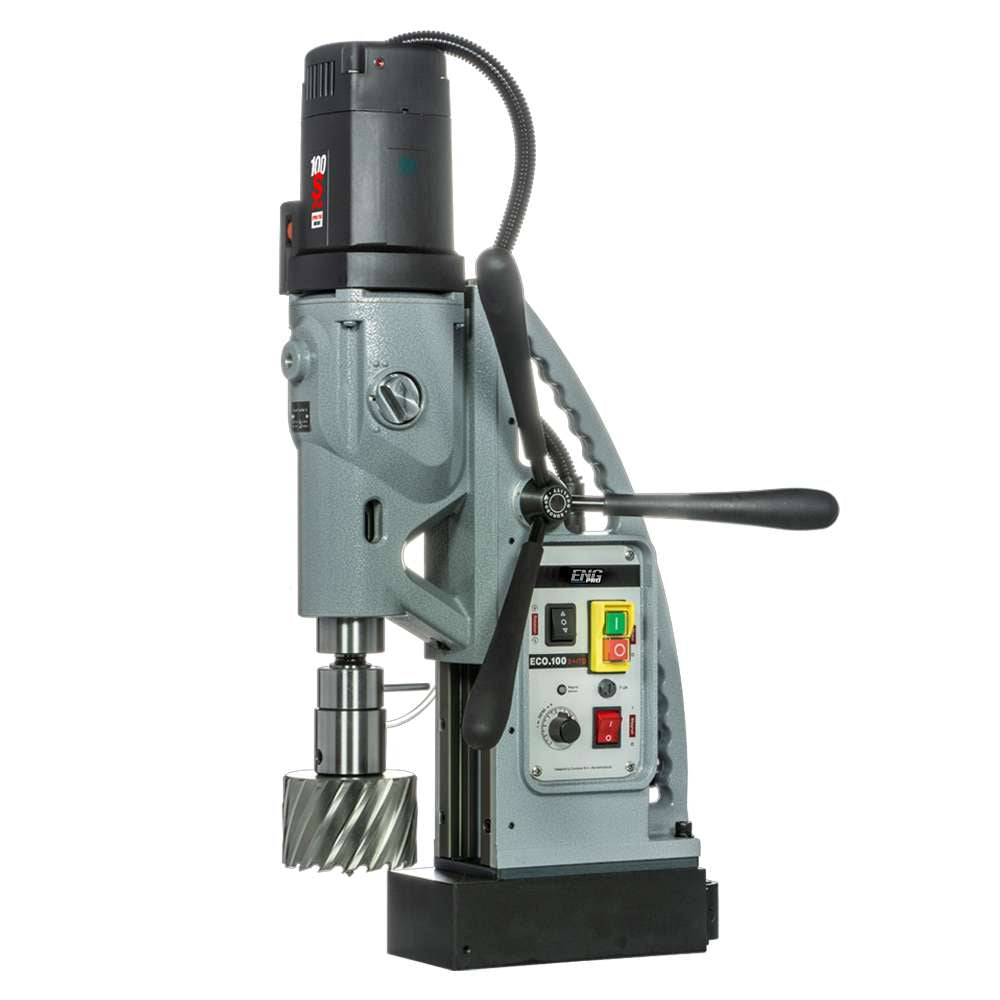

The ECO.100S+/TD (PLUS) Magnetic Drill is a top-of-the-range professional machine designed for extremely demanding industrial applications that require high power, precision, and maximum operational safety. It is particularly suitable for tapping operations, as well as drilling and countersinking on metal surfaces.
Equipped with an extremely powerful 1,900 W (17.3 A) motor and a 4-speed mechanical gearbox lubricated in an oil bath, it ensures constant, reliable, and long-lasting power transmission even under heavy loads. The wide 260 mm stroke and the MT3 Morse taper spindle with 31.75 mm (1-1/4") capacity allow the use of large-diameter tools while maintaining rigidity and precision.
The integrated advanced electronics provide greater operator safety, significantly reducing the risk of damage to the machine, the tool, and the workpiece. The protection system intervenes in the event of excessive vibrations or sudden displacement, increasing reliability during the most demanding operations.
Thanks to reversible rotation and electronic adjustment of speed and torque, the ECO.100S+/TD model is ideal for tapping from M3 to M30, ensuring total control and high-quality results.
The high-adhesion magnetic base guarantees stable and secure anchoring even during the heaviest applications. Capable of working with annular cutters up to 100 mm, twist drills up to 31.75 mm, and countersinks up to 105 mm, this magnetic drill represents the ideal solution for mechanical workshops, steel fabrication shops, and professional industrial environments where uncompromising performance is required.
Technical Specifications
| Feature | Value |
|---|---|
| Power supply | 230V / F1 |
| Power | 2.05 – 2.79 kW / HP (1,900 W – 17.3 A) |
| Annular cutters | Ø 12 – 100 mm |
| Twist drills | Ø 1 – 31.75 mm |
| Countersinking | Ø 10 – 105 mm |
| Maximum stroke | 260 mm |
| Tapping capacity | M3 – M30 |
| Magnetic base dimensions | 220 × 110 × 64 mm |
| Rotation speed | I: 85 rpm · II: 152 rpm · III: 270 rpm · IV: 480 rpm |
| Spindle taper | MT3 – 31.75 mm (1-1/4") |
| Magnetic adhesion force | 29,420 N |
| Net / gross weight | 31 / 32 kg |
| Gearbox | 4-speed mechanical, oil-bath lubricated |
| Safety and electronics | Protection against excessive vibration and sudden displacement, electronic speed and torque control, reversible rotation |
