Description

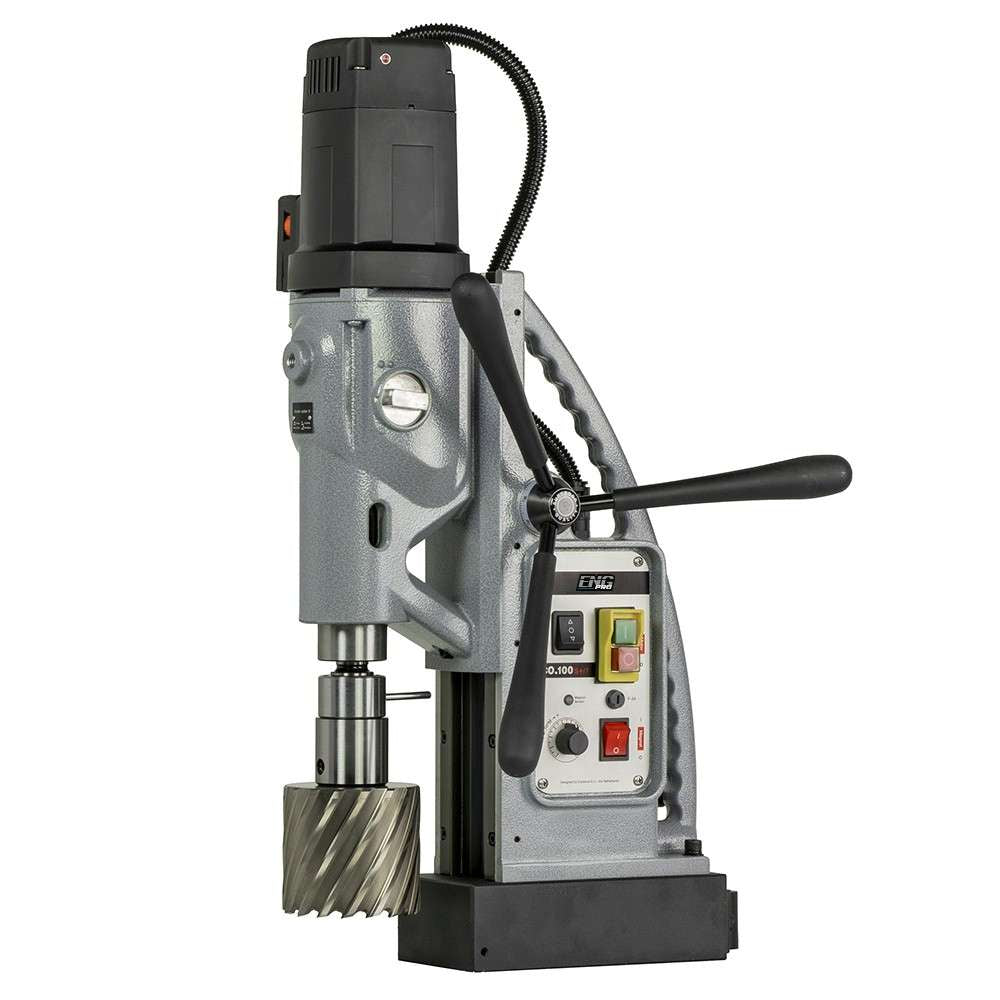

The ECO.100S+/T (PLUS) Magnetic Drill is a high-end professional machine designed to handle the most demanding drilling, countersinking, and tapping operations on metal surfaces. Developed for industrial environments and heavy steel fabrication, it combines high power output, large working capacity, and advanced operational control.
Equipped with a 4-speed mechanical gearbox, a MT3 Morse taper spindle with 31.75 mm (1-1/4") capacity, and a long stroke of 260 mm, the ECO.100S+/T allows the use of large-diameter tooling while ensuring structural rigidity and consistent precision. Reversible rotation, combined with electronic speed and torque control, makes this machine particularly suitable for tapping operations from M3 to M30, guaranteeing maximum safety and control.
The high-strength magnetic base ensures stable and secure anchoring even during heavy-duty operations, reducing vibration and improving hole quality. Capable of working with annular cutters up to 100 mm, twist drills up to 31.75 mm, and countersinking tools up to 105 mm, the ECO.100S+/T is the ideal solution for machine shops, steel fabricators, and professional industrial applications that demand high performance, reliability, and maximum operational versatility.
| Feature | Value |
|---|---|
| Power supply | 230V / Single-phase |
| Power output | 2.05 – 2.79 kW / HP |
| Annular cutters | Ø 12 – 100 mm |
| Twist drills | Ø 1 – 31.75 mm |
| Countersinking | Ø 10 – 105 mm |
| Maximum stroke | 260 mm |
| Tapping capacity | M3 – M30 |
| Magnetic base dimensions | 220 × 110 × 64 mm |
| Spindle speed | I: 85 rpm · II: 152 rpm · III: 270 rpm · IV: 480 rpm |
| Spindle taper | MT3 – 31.75 mm (1-1/4") |
| Magnetic holding force | 29,420 N |
| Net / gross weight | 27.8 / 29 kg |
| Gearbox | 4-speed mechanical gearbox |
| Advanced functions | Reversible rotation, electronic speed and torque control |
