Description

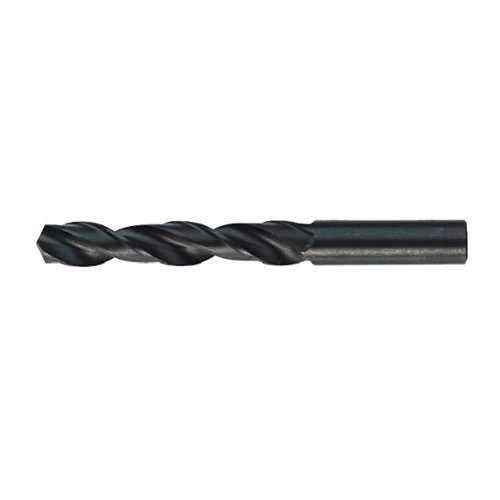

HSS twist drill with cylindrical straight shank, 118°, black, forged.
Model UT 10 PE00 Specifications:
Ø mm 1
L mm 34
l mm 12
Model UT 10 PE01 Specifications:
Ø mm 1.25
L mm 38
l mm 16
Model UT 10 PE02 Specifications:
Ø mm 1.5
L mm 40
l mm 18
Model UT 10 PE03 Specifications:
Ø mm 1.75
L mm 46
l mm 22
Model UT 10 PE04 Specifications:
Ø mm 2
L mm 49
l mm 24
Model UT 10 PE05 Specifications:
Ø mm 2.25
L mm 53
l mm 27
Model UT 10 PE06 Specifications:
Ø mm 2.5
L mm 57
l mm 30
Model UT 10 PE07 Specifications:
Ø mm 2.75
L mm 61
l mm 33
Model UT 10 PE08 Specifications:
Ø mm 3
L mm 61
l mm 33
Model UT 10 PE10 Specifications:
Ø mm 3.25
L mm 65
l mm 36
Model UT 10 PE11 Specifications:
Ø mm 3.5
L mm 70
l mm 39
Model UT 10 PE12 Specifications:
Ø mm 3.75
L mm 61
l mm 33
Model UT 10 PE13 Specifications:
Ø mm 4
L mm 75
l mm 43
Model UT 10 PE15 Specifications:
Ø mm 4.25
L mm 75
l mm 43
Model UT 10 PE16 Specifications:
Ø mm 4.5
L mm 61
l mm 33
Model UT 10 PE17 Specifications:
Ø mm 4.75
L mm 80
l mm 47
Model UT 10 PE18 Specifications:
Ø mm 5
L mm 86
l mm 52
Model UT 10 PE19 Specifications:
Ø mm 5.25
L mm 86
l mm 52
Model UT 10 PE20 Specifications:
Ø mm 5.5
L mm 93
l mm 57
Model UT 10 PE21 Specifications:
Ø mm 5.75
L mm 93
l mm 57
Model UT 10 PE22 Specifications:
Ø mm 6
L mm 93
l mm 57
Model UT 10 PE23 Specifications:
Ø mm 6.25
L mm 101
l mm 63
Model UT 10 PE24 Specifications:
Ø mm 6.5
L mm 101
l mm 63
Model UT 10 PE25 Specifications:
Ø mm 6.5
L mm 101
l mm 63
Model UT 10 PE26 Specifications:
Ø mm 7
L mm 109
l mm 69
Model UT 10 PE27 Specifications:
Ø mm 7.25
L mm 109
l mm 69
Model UT 10 PE28 Specifications:
Ø mm 7.5
L mm 109
l mm 69
Model UT 10 PE29 Specifications:
Ø mm 7.75
L mm 117
l mm 75
