Description

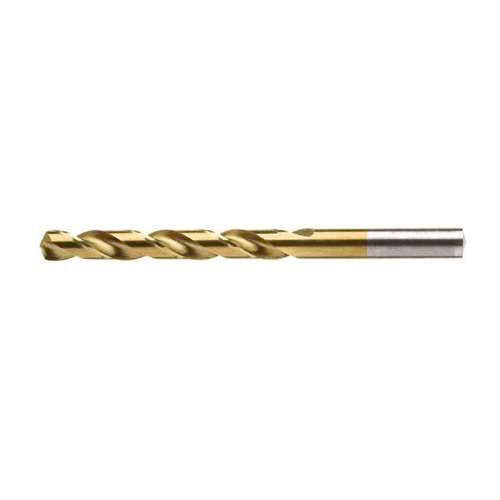

Ground drills with cylindrical straight shank, 135°, self-centring, HSS-TiN.
Model UT 10 PC00 Specifications:
Ø mm 1
L mm 34
l mm 12
Model UT 10 PC01 Specifications:
Ø mm 1.25
L mm 38
l mm 16
Model UT 10 PC02 Specifications:
Ø mm 1.5
L mm 40
l mm 18
Model UT 10 PC03 Specifications:
Ø mm 1.75
L mm 46
l mm 22
Model UT 10 PC04 Specifications:
Ø mm 2
L mm 49
l mm 24
Model UT 10 PC05 Specifications:
Ø mm 2.25
L mm 53
l mm 27
Model UT 10 PC07 Specifications:
Ø mm 2.75
L mm 61
l mm 33
Model UT 10 PC08 Specifications:
Ø mm 3
L mm 61
l mm 33
Model UT 10 PC09 Specifications:
Ø mm 3.25
L mm 65
l mm 36
Model UT 10 PC10 Specifications:
Ø mm 3.5
L mm 70
l mm 39
Model UT 10 PC11 Specifications:
Ø mm 3.75
L mm 70
l mm 39
Model UT 10 PC12 Specifications:
Ø mm 4
L mm 75
l mm 43
Model UT 10 PC13 Specifications:
Ø mm 4.25
L mm 75
l mm 43
Model UT 10 PC14 Specifications:
Ø mm 4.5
L mm 80
l mm 47
Model UT 10 PC15 Specifications:
Ø mm 4.75
L mm 80
l mm 47
Model UT 10 PC16 Specifications:
Ø mm 5
L mm 86
l mm 52
Model UT 10 PC17 Specifications:
Ø mm 5.25
L mm 86
l mm 52
Model UT 10 PC18 Specifications:
Ø mm 5.5
L mm 93
l mm 57
Model UT 10 PC19 Specifications:
Ø mm 5.75
L mm 93
l mm 57
Model UT 10 PC20 Specifications:
Ø mm 6
L mm 93
l mm 57
Model UT 10 PC21 Specifications:
Ø mm 6.25
L mm 101
l mm 63
Model UT 10 PC22 Specifications:
Ø mm 6.5
L mm 101
l mm 63
Model UT 10 PC23 Specifications:
Ø mm 6.75
L mm 109
l mm 69
Model UT 10 PC24 Specifications:
Ø mm 7
L mm 109
l mm 69
Model UT 10 PC25 Specifications:
Ø mm 7.25
L mm 109
l mm 69
Model UT 10 PC26 Specifications:
Ø mm 7.5
L mm 109
l mm 69
Model UT 10 PC27 Specifications:
Ø mm 7.75
L mm 117
l mm 75
Model UT 10 PC28 Specifications:
Ø mm 8
L mm 117
l mm 75
Model UT 10 PC29 Specifications:
Ø mm 8.25
L mm 117
l mm 75
Model UT 10 PC30 Specifications:
Ø mm 8.5
L mm 117
l mm 75
