Description

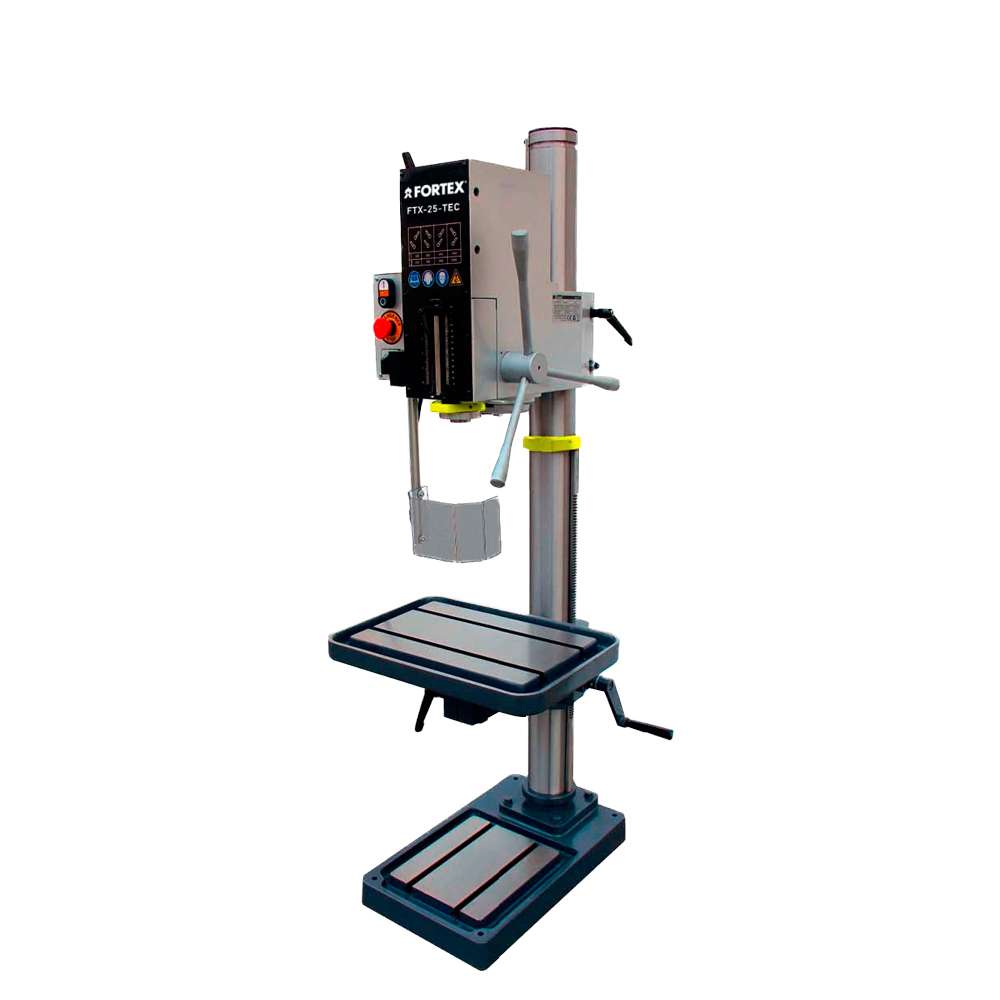

FTX-25-TEC ENG PRO Gear-Driven Column Drill
Gear-driven column drill with speed change via gears and lever, depth indicator, and safety switch. Includes spindle guard with safety microswitch and complies with CE regulations.
Main Features
Speed change via gears
Speed change via lever
Depth indicator
Safety switch
Spindle safety guard with safety microswitch
Machine manufactured in compliance with CE regulations
Standard Accessories
Keyless chuck
Morse taper CM3
Technical Data
| Description | Value |
|---|---|
| Power supply | 400 - 50 V |
| Power | 0.65 / 0.9 kW |
| Number of speeds | 8 |
| Speed range | 105 - 2,900 R.P.M. |
| Max. drilling capacity | 16 - 31.5 mm |
| Max. tapping capacity | M16 |
| Spindle-to-column distance | 255 mm |
| Morse taper | CM3 |
| Spindle travel | 125 mm |
| Spindle-to-base distance | 1,250 mm |
| Spindle-to-table distance | 840 mm |
| Column diameter | 100 mm |
| Table dimensions | 500 x 350 mm |
| Total height | 1,710 mm |
| Machine dimensions | 1,670 x 570 x 720 mm |
| Weight (net/gross) | 190 / 220 kg |
| EAN Code | 8423640137509 |
