Description

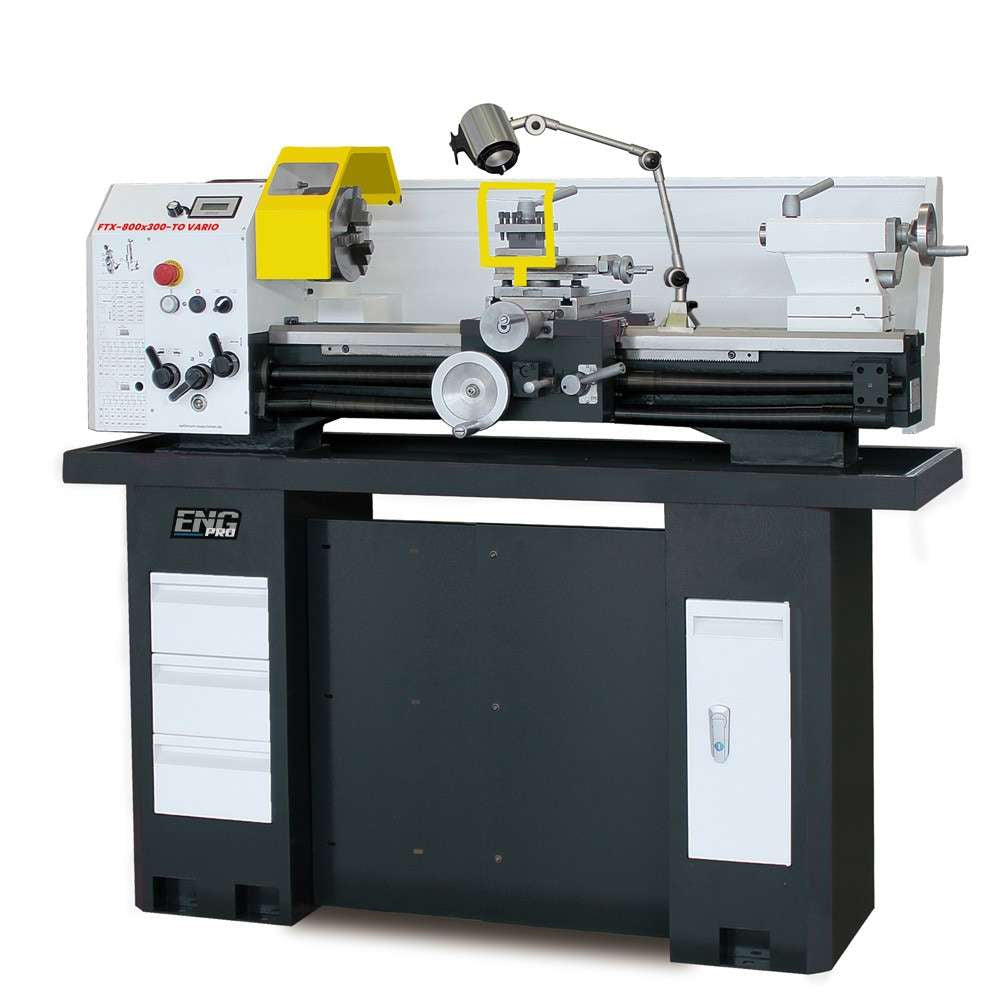

The high-precision FTX-800X300-TO VARIO lathe is designed to deliver professional performance, mechanical reliability, and operational safety. This machine is ideal for small- to medium-sized metalworking tasks, ensuring accuracy and control at every stage of work.
Key features include:
Automatic longitudinal and transverse carriage feed, allowing more efficient and precise operations without constant manual intervention.
Double “V” guides, hardened and ground, ensuring durability and precision in carriage movement.
Precision spindle mounted on tapered bearings, providing excellent stability and concentricity during machining.
Adjustable keys, eliminating play in the guides to ensure greater rigidity and accuracy.
Easily adjustable tailstock, with metric and imperial graduated cylinder.
Independent lead screw for threading operations, reducing wear on other components.
Brushless motor, providing quieter, more efficient, and maintenance-free operation.
Reversible lead screw, allowing left-hand threading.
Large intermediate carriage, with two T-slots for mounting accessories or special tools.
Safety micro-switches on the pulley cover and spindle guard, which automatically stop operation when opened.
Spindle and turret guards for increased operator safety.
Emergency stop button, always accessible.
Thread dial indicator, for precise control during threading operations.
The lathe is built according to CE standards, ensuring high safety and quality standards.
Technical Specifications:
| Feature | Value |
|---|---|
| X/Y Coordinate Display | No |
| Power Supply | 230V/F1 |
| Power | 1.5 – 2 kW / HP |
| Speed Change | Variable |
| Swing over Bed | 300 mm |
| Swing over Gap | - mm |
| Swing over Carriage | 190 mm |
| Bed Width | 180 mm |
| Spindle Bore | 38 mm |
| Distance Between Centers | 800 mm |
| Spindle Taper | MT5 |
| Tailstock Taper | MT3 |
| Tailstock Diameter | - mm |
| Tailstock Travel | 70 mm |
| Number of Speeds | Variable |
| Speed Range | 80 – 2000 rpm |
| Longitudinal Feed | 0.085 – 0.832 mm/rev |
| Cross Feed | 0.01 – 0.1 mm/rev |
| Rapid Longitudinal Carriage Feed | - m/min |
| Rapid Cross Carriage Feed | - m/min |
| Metric Threads | 18 types / 0.2 – 3.5 mm |
| Inch Threads | 18 types / 8 – 56 tpi |
| Diametral Pitch | - d.p. |
| Module Pitch | - m.p. |
| Net/Gross Weight | 260 kg |
| Overall Dimensions | 1500 × 720 × 690 mm |
