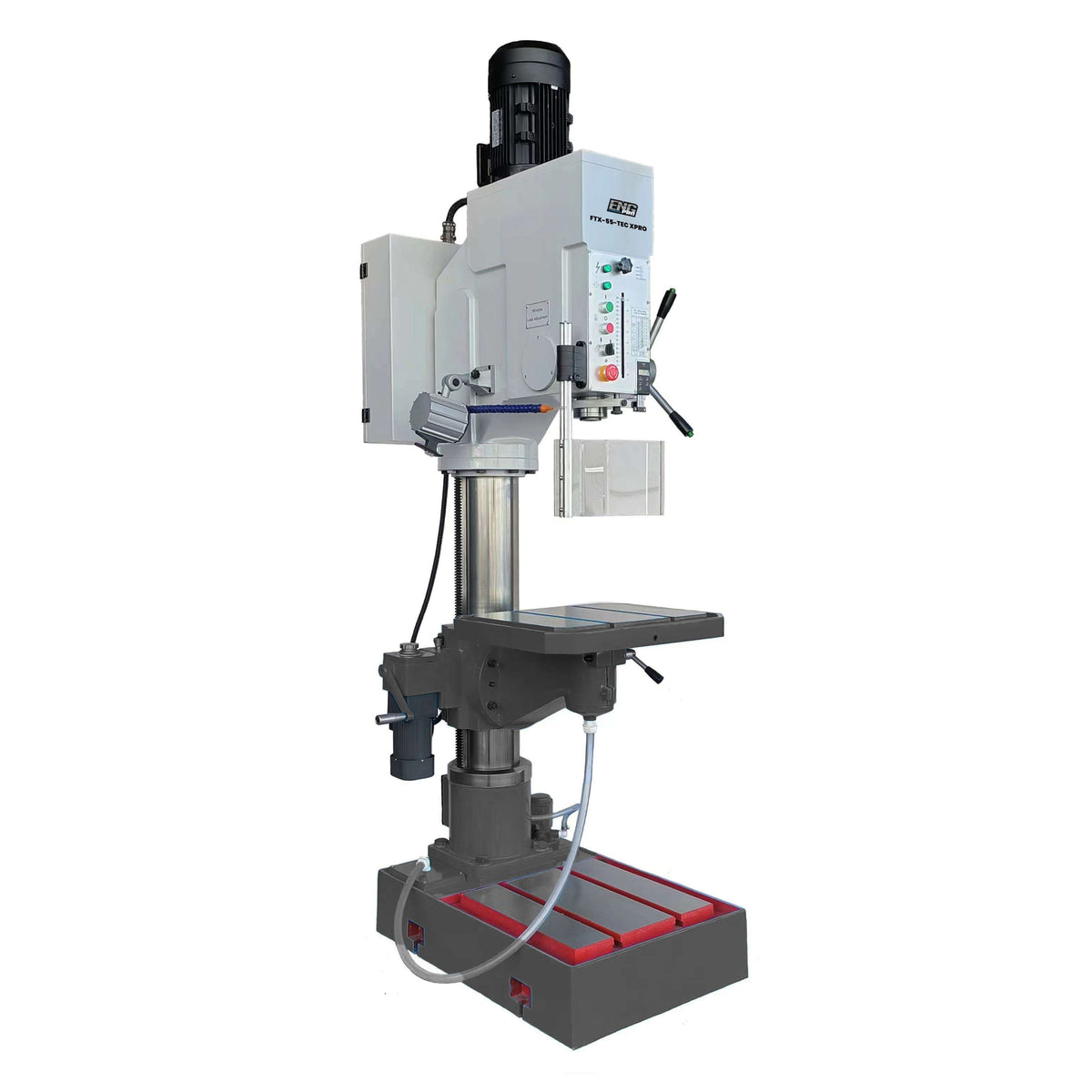

FTX-55-TEC XPRO Gear Drill 400V Three-Phase with Vise
The FTX-55-TEC XPRO Gear Drill is a professional machine tool designed for high-precision machining operations that require stability, reliability, and continuous performance even during long working cycles. Its robust structure and high-quality components make it ideal for mechanical workshops, industrial maintenance departments, and medium-to-heavy carpentry operations.
The spindle mounted on ball bearings ensures smooth rotation, high concentricity, and long-lasting performance, while cast iron motors and pulleys provide durability under stress and consistent performance. The gear transmission delivers high torque and precision across a wide speed range, easily adapting to different materials and machining types.
The worktable rotates 360° on the column and tilts ±45°, allowing extremely flexible positioning of the workpiece and facilitating angled operations without external fixtures. The rack-and-pinion table movement system ensures controlled, smooth, and repeatable motion, while the motorized table increases productivity and precision during repetitive tasks.
Equipped with SIEMENS electrical components, synonymous with quality and reliability, the FTX-55-TEC XPRO integrates a safety switch with automatic stop when the cover is opened, enhancing operator protection. The spindle rotation reversal allows optimal management of tapping operations. The cooling system completes a machine designed for intensive professional machining.
Manufactured in compliance with CE regulations, the FTX-55-TEC XPRO is a complete and reliable solution for those seeking power, precision, and safety in an industrial-grade column drill, supplied with a clamping vise for immediate use.
Technical Specifications – FTX-55-TEC XPRO Gear Drill
| Feature | Value |
|---|---|
| Power Supply | 400 V / Three-Phase (F3) |
| Power | 2.2 / 2.8 – 3 / 3.75 kW (HP) |
| Transmission | Gears |
| Number of Speeds | 12 |
| Spindle Speed | 42 – 1,865 rpm |
| Maximum Drilling Capacity | 50 mm |
| Threading Capacity | M32 |
| Spindle–Column Distance | 360 mm |
| Spindle Taper | Morse MT4 |
| Maximum Drilling Depth | 180 mm |
| T-Slots on Table | 2 × 14 / 2 × 16 mm |
| Spindle–Base Distance | 1,205 mm |
| Spindle–Table Distance | 600 mm |
| Maximum Table Travel | 525 mm |
| Column Diameter | 170 mm |
| Base Dimensions | 575 × 565 mm |
| Table Dimensions | 370 × 500 mm |
| Table Tilt | ±45° |
| Spindle Feed | 0.07 / 0.15 / 0.26 / 0.40 mm/rev |
| Cooling System | Yes |
| Motorized Table | Yes |
| Machine Dimensions (L × W × H) | 700 × 1,150 × 2,200 mm |
| Net / Gross Weight | 676 / 758 kg |
| Equipment | Vise included |
| Compliance | CE Regulations |
