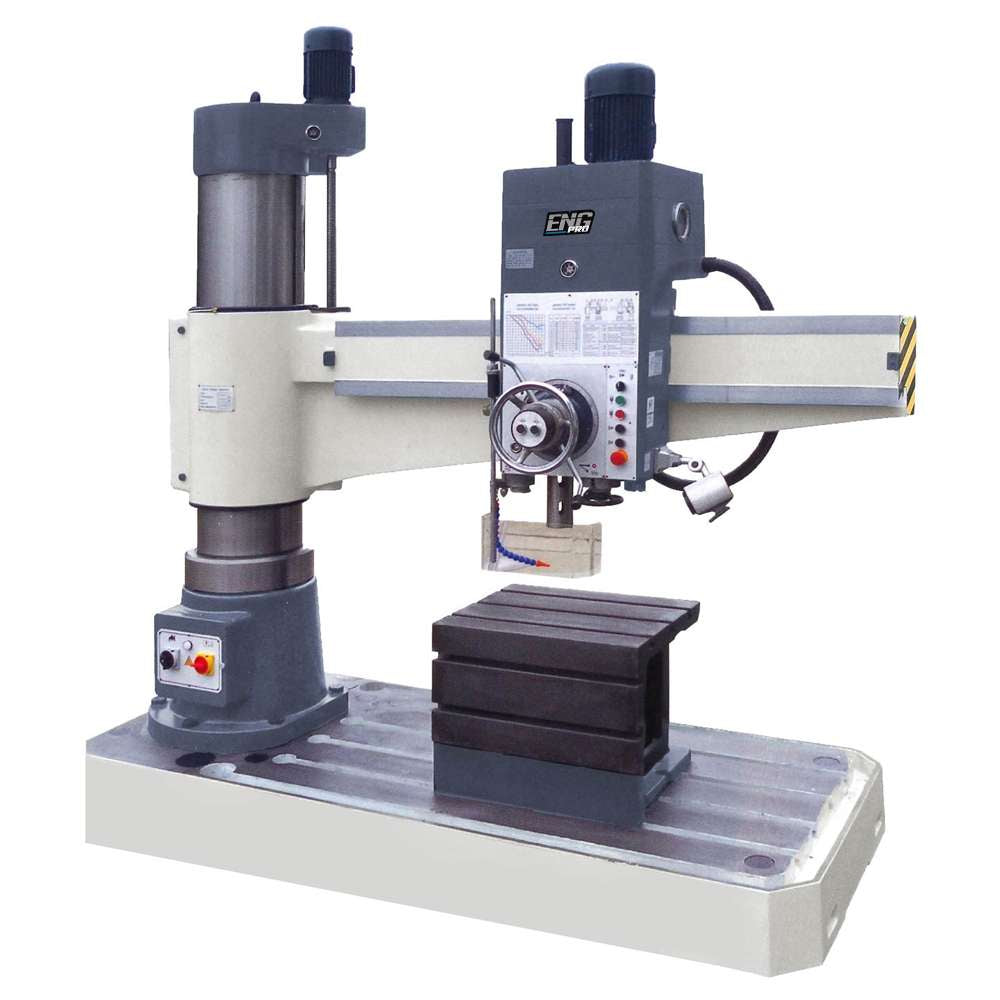

FTX-50X16-TR Radial Drilling Machine 400V Three-Phase
The FTX-50X16-TR Radial Drilling Machine is an industrial machine tool designed for high-precision drilling and tapping operations on large and heavy workpieces. Thanks to its robust construction and the rotating radial arm, it allows extremely flexible machining without the need to reposition the workpiece, significantly increasing productivity and operational efficiency.
The oil-bath lubricated gearbox, equipped with hardened and ground gears, ensures smooth, quiet, and long-lasting power transmission even under heavy-duty conditions. The wide range of 16 speeds, adjustable from 25 to 2000 rpm, makes the machine suitable for a variety of applications and materials, from precision drilling to more demanding operations.
The arm height is electrically adjustable via motor and lifting screw, while the spindle feed, selectable between manual and automatic, ensures maximum control and versatility. The spindle guard with automatic shut-off enhances operator safety, while the high-quality electrical components and compliance with CE standards guarantee long-term reliability.
With a drilling capacity up to 50 mm and tapping capacity up to M36/M42, the FTX-50X16-TR is the ideal solution for machine shops, heavy steel fabrication, industrial maintenance departments, and structural machining applications where power, precision, and absolute stability are required.
| Feature | Value |
|---|---|
| Power supply | 400 V / Three-phase (F3) |
| Power | 4 – 5.3 kW (Hp) |
| Transmission | Gears |
| Number of speeds | 16 |
| Spindle speed | 25 – 2000 rpm |
| Maximum drilling capacity | 50 mm |
| Tapping capacity | M36 / M42 |
| Spindle-to-column distance | 350 – 1600 mm |
| Max spindle-to-table distance | 320 – 1200 mm |
| Spindle taper | Morse MT5 |
| Maximum drilling depth | 1250 mm |
| Spindle feed | Manual or automatic |
| Feed rate | 0.04 – 3.2 mm/rev (16 steps) |
| Radial arm | Rotating and electrically height-adjustable |
| Spindle protection | With automatic shut-off |
| Cooling system | Not included |
| Base dimensions | 2400 × 1000 × 200 mm |
| Table dimensions | 630 × 500 × 500 mm |
| Machine dimensions (L×W×H) | 2580 × 1140 × 2550 mm |
| Net / gross weight | 3500 / 3800 kg |
| Standards | CE compliant |
