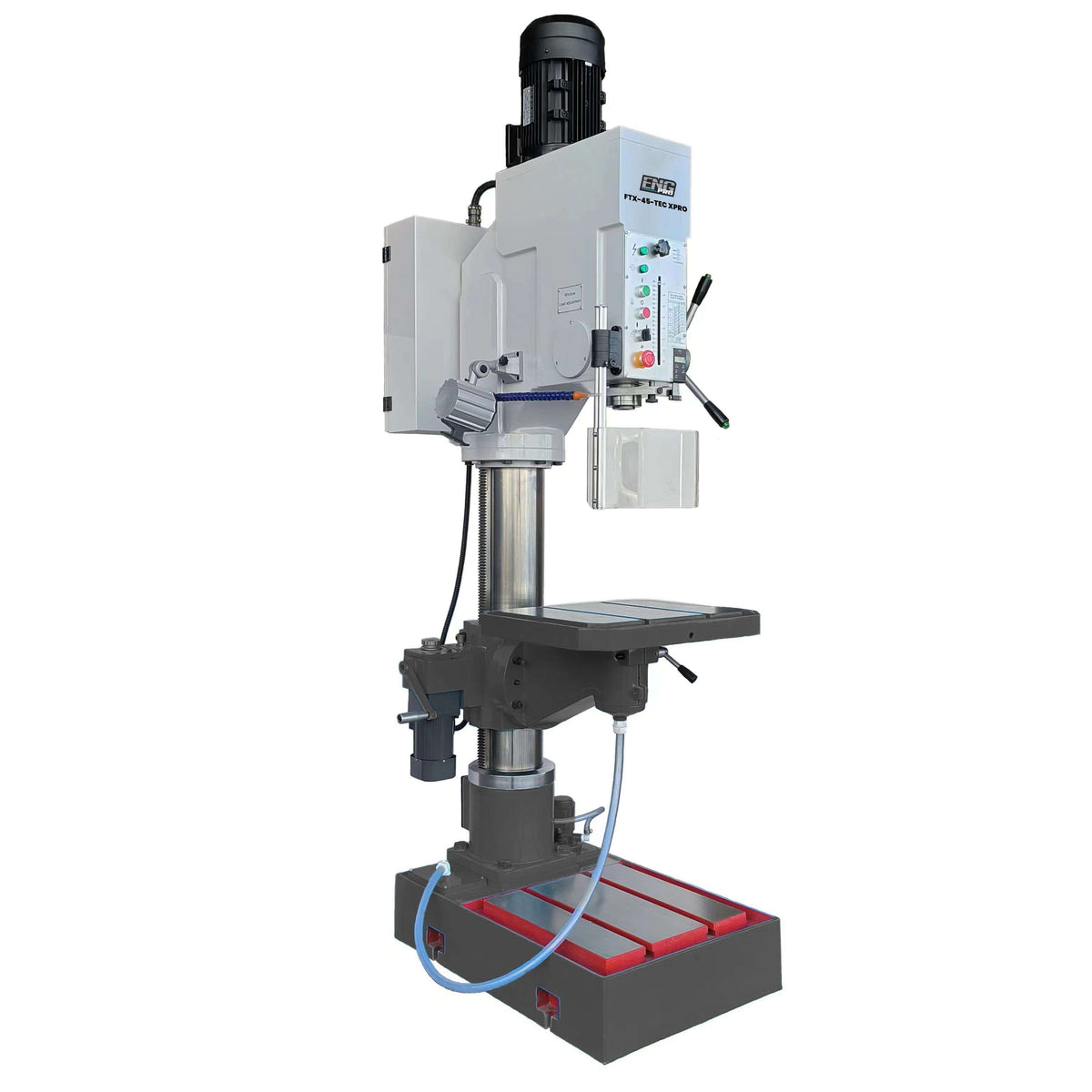

Gear Drill Press with Vice Three-Phase 400V FTX-45-TEC XPRO
The FTX-45-TEC XPRO Gear Drill Press is an industrial machine tool designed to ensure high precision, operational reliability, and low noise levels during continuous machining operations. Thanks to its robust construction and advanced technical solutions, it is the ideal choice for mechanical workshops, industrial maintenance departments, and medium-to-heavy fabrication applications.
The gear transmission with soundproof gearbox delivers consistent performance with reduced noise emissions, significantly improving operator comfort during prolonged working cycles. The high-precision spindle and quill ensure excellent concentricity and superior drilling quality, while the automatic spindle feed increases productivity and process uniformity.
The tilting worktable provides great versatility for angular machining operations, while the lever-operated speed change system allows quick and intuitive adjustments. The spindle rotation reversal facilitates tapping operations, supported by the electromagnetic clutch, which enables smooth and precise spindle engagement without stopping the motor.
The equipment is completed by an integrated cooling system, essential for maintaining stable operating temperatures and extending tool life, as well as SIEMENS electrical components, ensuring safety, quality, and long-term reliability. Manufactured in full compliance with CE standards, the FTX-45-TEC XPRO is supplied complete with a vice, ready for immediate professional use.
| Feature | Value |
|---|---|
| Power Supply | 400 V / Three-Phase (F3) |
| Power | 2.2 / 2.8 – 3 / 3.75 kW (HP) |
| Transmission | Gear-driven |
| Number of Speeds | 12 |
| Spindle Speed Range | 42 – 2,050 rpm |
| Maximum Drilling Capacity | 40 mm |
| Tapping Capacity | M28 |
| Spindle-to-Column Distance | 360 mm |
| Spindle Taper | Morse MT4 |
| Maximum Drilling Depth | 180 mm |
| T-slots on Table | 2 × 14 / 2 × 16 mm |
| Spindle-to-Base Distance | 1,215 mm |
| Spindle-to-Table Distance | 600 mm |
| Maximum Table Travel | 560 mm |
| Column Diameter | 160 mm |
| Base Dimensions | 575 × 565 mm |
| Table Dimensions | 370 × 500 mm |
| Table Tilt | ±45° |
| Spindle Feed | 0.07 / 0.15 / 0.26 / 0.40 mm/rev |
| Cooling System | Yes |
| Motorized Worktable | Yes |
| Machine Dimensions (L × W × H) | 700 × 1,150 × 2,200 mm |
| Net / Gross Weight | 658 / 740 kg |
| Standard Equipment | Vice included |
| Compliance | CE Standards |
