Description

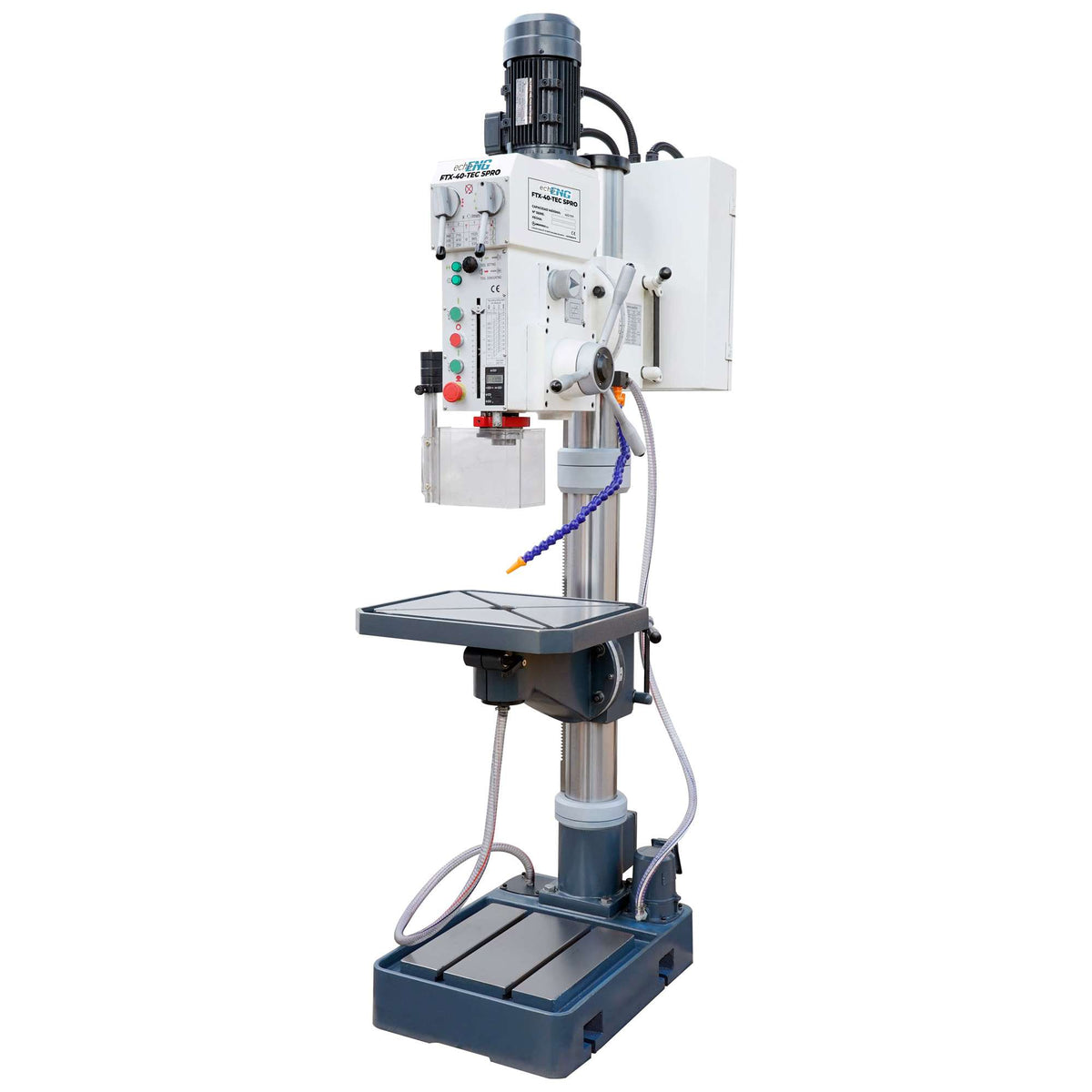

The FTX-40-TEC SPRO is a professional high-precision drill milling machine designed for reliability, versatility, and high performance in mechanical machining. Equipped with a silent gearbox, automatic spindle feed, and tapping function M24, it ensures precise and consistent results.
The machine features a high-precision spindle and collet, tilting table ±45°, reverse gear, and electromagnetic clutch, along with a coolant system and LED work lamp. Manufactured according to CE standards, it guarantees safety and durability.
Main Features:
Drilling capacity: 40 mm
Max tapping capacity: M24
Morse taper: CM4
Spindle travel: 180 mm
Speed range: 50–1450 rpm, 18 speeds
Table: 560x560 mm, max travel 560 mm
Base: 730x500 mm, column diameter 160 mm
Voltage: 400V/50Hz, power 0.85–1.5 kW
Included accessories: MT4/B16 chuck, MT4/MT3/MT2 reducers, wedge extractor, coolant system
