Description

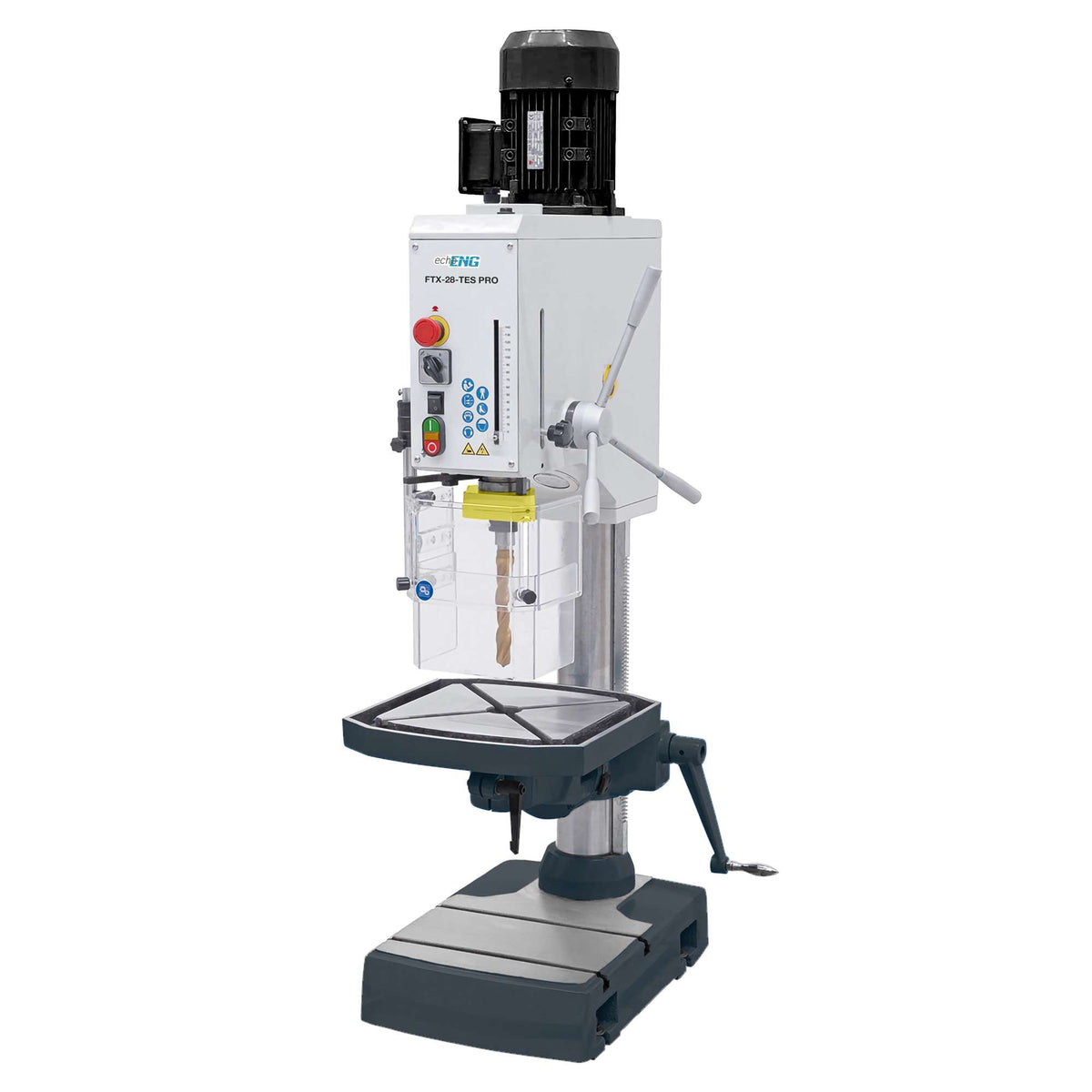

The FTX-28-TES PRO is a high-precision professional bench drill, designed for mechanical workshops, laboratories, and industrial maintenance departments. Featuring ground gears and a high-precision MT3 spindle, it ensures perfect concentricity and smooth, accurate drilling performance.
Equipped with an adjustable drilling depth stop with graduated scale, a robust steel column, and a cast-iron worktable that rotates 360° and tilts from -45° to +45°, this model offers maximum flexibility for a wide range of machining applications.
The reverse gear function, integrated LED work light, and automatic tool ejector enhance operator comfort and efficiency, while the machine’s CE-compliant construction ensures long-lasting safety and reliability.
Main Technical Features:
Voltage: 400V three-phase
Power: 0.85/1.1 – 1.1/1.5 kW
Transmission: Gear drive
Speed range: 12 steps, 75 – 3200 rpm
Drilling capacity: 13 – 28 mm
Tapping capacity: M12
Spindle taper: MT3
Spindle travel: 140 mm
Table size: 375 x 375 mm, tilting ±45°, 360° rotation
Net weight: 200 kg
Dimensions: 375 x 620 x 1430 mm
Standard Equipment:
Automatic drill chuck 1–13 mm / B16
MT3/MT2 reducer
Automatic tool ejector
Adjustable chuck guard
LED work light
