Description

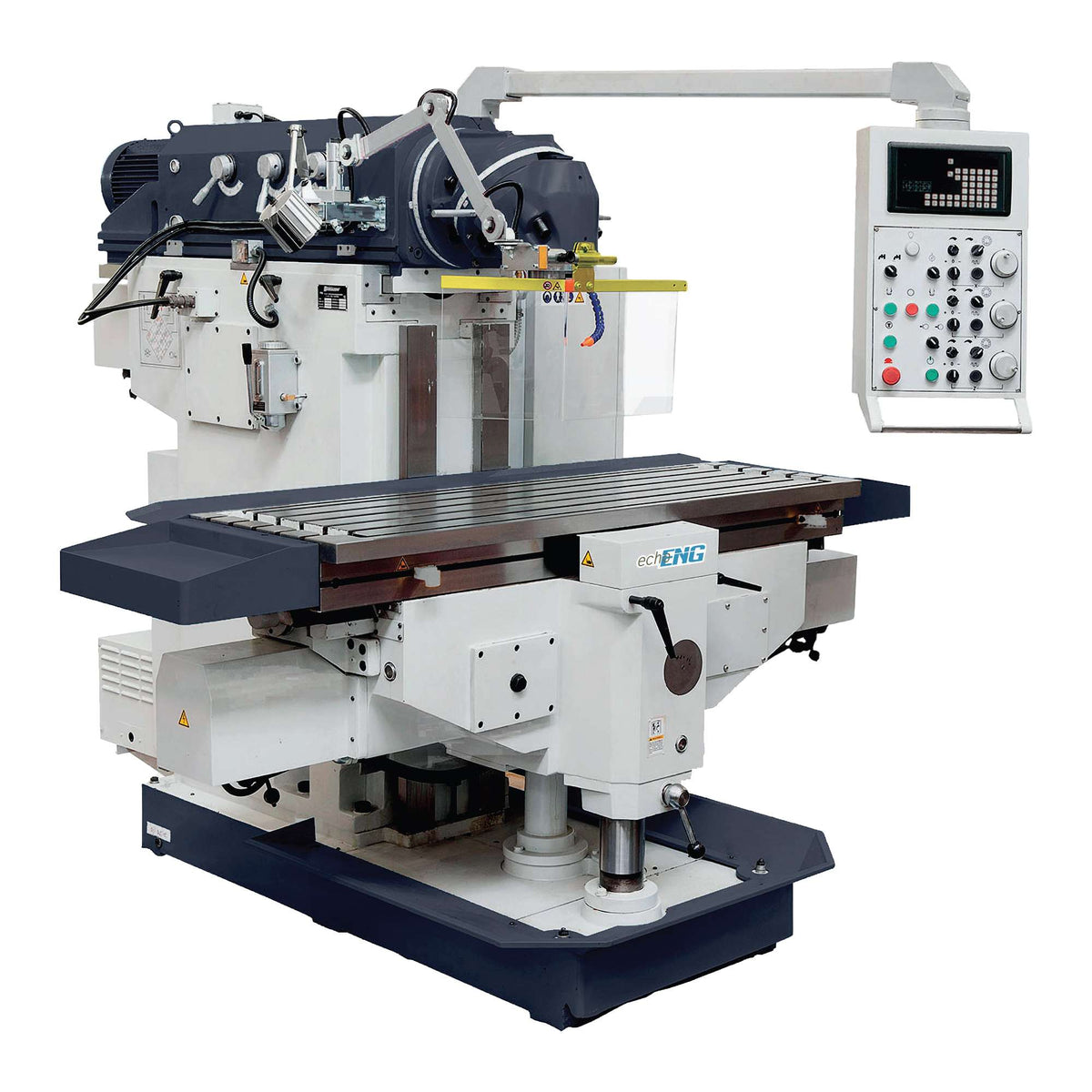

The FTX-200-FC Visual is a professional universal milling machine designed to provide precision, robustness, and versatility for complex machining operations. Equipped with a gear-driven transmission, this machine ensures reliability and long-lasting performance, supporting both vertical and horizontal milling up to 200 mm.
The machine features a 360° adjustable rotating head and standard automatic X-Y-Z axis feeds, making it easy to handle complex and repetitive machining tasks. The ISO 50 spindle taper ensures compatibility with high-quality professional tools.
The design includes a working table of 1400 x 700 x 500 mm, rapid feeds up to 2200 mm/min, and a LED work lamp, along with a cooling system and chip tray, making the machine suitable for intensive use in industrial workshops.
Main Features:
Table: 2000 x 500 mm with 5 T-slots (18–80 mm)
360° adjustable rotating head
Automatic X/Y/Z axis feeds: 10–1000 / 10–1000 / 5–500 mm/min
Rapid feeds: 2200 / 2200 / 1100 mm/min
Vertical/Horizontal milling capacity: 200 mm
Spindle taper: ISO 50
Transmission: gears, speed range 30–2050 rpm
Motor power: 7.5 kW
Voltage: 400V/50 Hz
Machine dimensions: 2025 x 2460 x 2080 mm
Weight: 4700 kg
Included accessories: cooling system, LED lamp, chip tray
Robust, versatile, and precise, the FTX-200-FC Visual is ideal for industrial workshops, technical laboratories, and production departments requiring high reliability and consistent performance.
