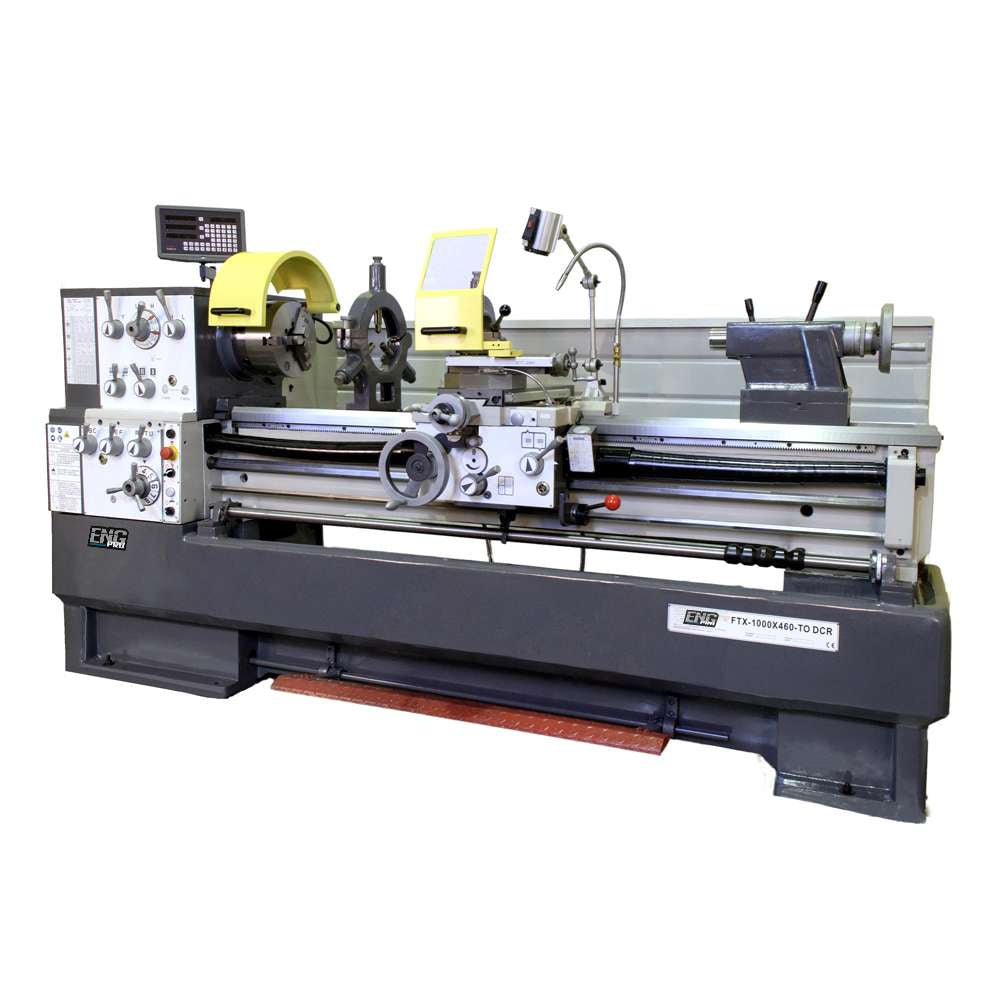

The FTX-1000X460-TO DCR 400/F3 industrial lathe is a professional metalworking machine designed to ensure robustness, precision, and continuous performance. Its solid structure with laminated and ground prismatic guides provides maximum stability during demanding machining operations, while the dedicated guide shaft allows smooth and consistent automatic feeds.
The safety system includes micro-switches that stop the machine when the pulley cover or chuck guard is opened. Additional protective features include the chuck guard, turret guard, emergency stop button, and foot brake, ensuring full operator control at all times. The revolver stop automatically shuts down the machine once the preset workpiece length is reached.
The lathe is equipped with a thread dial indicator for precise threading operations and a longitudinal carriage end-stop for controlled movements. The X/Y DRO digital readout ensures accurate coordinate monitoring. The machine is designed in compliance with CE standards, guaranteeing high levels of safety and reliability.
With a power range from 5.5 to 7.5 HP, gear-driven speed change system, 460 mm swing over bed, 1000 mm distance between centers, and a wide selection of metric, imperial, diametral, and module threads, this lathe is an ideal solution for mechanical workshops, maintenance departments, and industries requiring a highly efficient professional machine.
| Specification | Value |
|---|---|
| X/Y Coordinate Readout | Yes (DRO) |
| Power Supply | 400 V / F3 |
| Power | 5.5 – 7.5 kW / HP |
| Speed Change | Gears |
| Swing Over Bed | 460 mm |
| Swing Over Gap | 690 mm |
| Swing Over Carriage | 274 mm |
| Bed Width | 300 mm |
| Spindle Bore | 82 mm |
| Distance Between Centers | 1000 mm |
| Spindle Taper | MT7 |
| Tailstock Taper | MT4 |
| Tailstock Diameter | 60 mm |
| Tailstock Quill Travel | 120 mm |
| Number of Speeds | 12 |
| Speed Range | 125 – 2000 rpm |
| Longitudinal Feed Range | 0.031 – 1.7 mm/rev |
| Cross Feed Range | 0.014 – 0.784 mm/rev |
| Metric Threads | 47 types / 0.2 – 14 mm |
| Inch Threads | 50 types / 112 – 4 tpi |
| Diametral Pitch Threads | 50 types / 4 – 112 d.p. |
| Module Threads | 34 types / 0.1 – 7 m.p. |
| Net/Gross Weight | 1695 / 1960 kg |
| Overall Dimensions | 2250 × 1120 × 1620 mm |
