Description

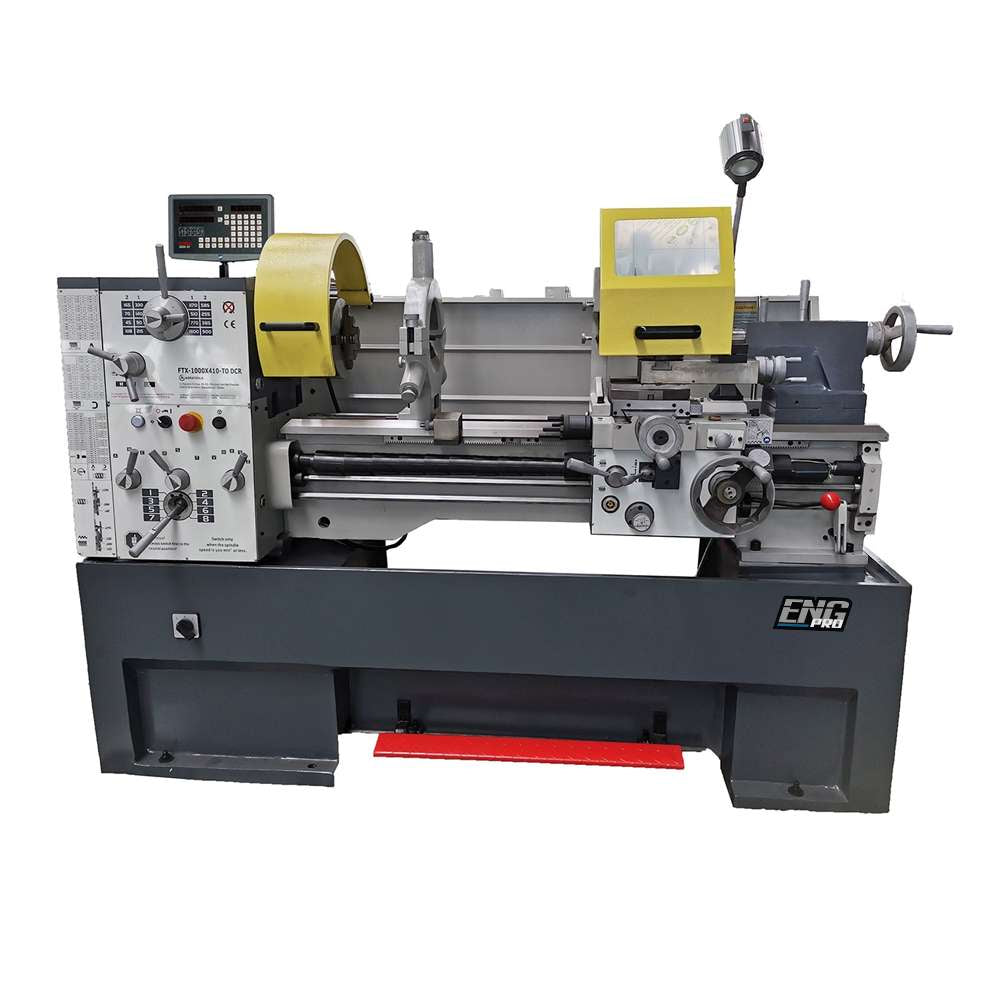

The FTX-1000X410-TO DCR 400V/F3 industrial lathe is a professional metalworking machine designed to ensure solidity, precision, and consistent performance in the most demanding applications. Its robust structure with laminated and ground prismatic guides ensures high rigidity and smooth carriage movement, while the guide shaft for automatic feeds enables uniform and controlled machining.
The safety system includes automatic shut-off micro-switches that stop the machine when the pulley cover or chuck guard is opened. Additional safety features include the chuck guard, turret guard, emergency stop button, and foot brake, providing the operator with maximum control during every phase of work. The thread dial indicator enables precise threading, while the longitudinal carriage end-stop ensures repeatable and controlled machining.
The lathe is equipped with a DRO X/Y digital readout, compliant with CE standards, and features a gear transmission system, 16 selectable speeds, and a turning capacity over the bed of 410 mm. With a distance between centers of 1000 mm and a wide range of metric, inch, diametral, and module threads, it represents an ideal solution for mechanical workshops, maintenance departments, and companies requiring a reliable and precise professional machine.
TECHNICAL DATA TABLE
| Specification | Value |
|---|---|
| X/Y Coordinate Readout | Yes (DRO) |
| Power Supply | 400 V / F3 |
| Power | 2.2 / 3 – 3 / 4.5 kW / HP |
| Speed Change | Gears |
| Swing Over Bed | 410 mm |
| Swing Over Gap | 580 mm |
| Swing Over Carriage | 255 mm |
| Bed Width | 250 mm |
| Spindle Bore | 52 mm |
| Distance Between Centers | 1000 mm |
| Spindle Taper | MT6 |
| Tailstock Taper | MT4 |
| Tailstock Diameter | 50 mm |
| Tailstock Quill Travel | 120 mm |
| Number of Speeds | 16 |
| Speed Range | 42 – 1800 rpm |
| Longitudinal Feed Range | 0.05 – 1.7 mm/rev |
| Cross Feed Range | 0.025 – 0.85 mm/rev |
| Metric Threads | 39 types / 0.2 – 14 mm |
| Inch Threads | 54 types / 2 – 72 tpi |
| Diametral Pitch Threads | 21 types / 8 – 44 d.p. |
| Module Threads | 15 types / 0.3 – 3.5 m.p. |
| Net / Gross Weight | 1160 / 1340 kg |
| Overall Dimensions | 2060 × 1140 × 1640 mm |
