Description

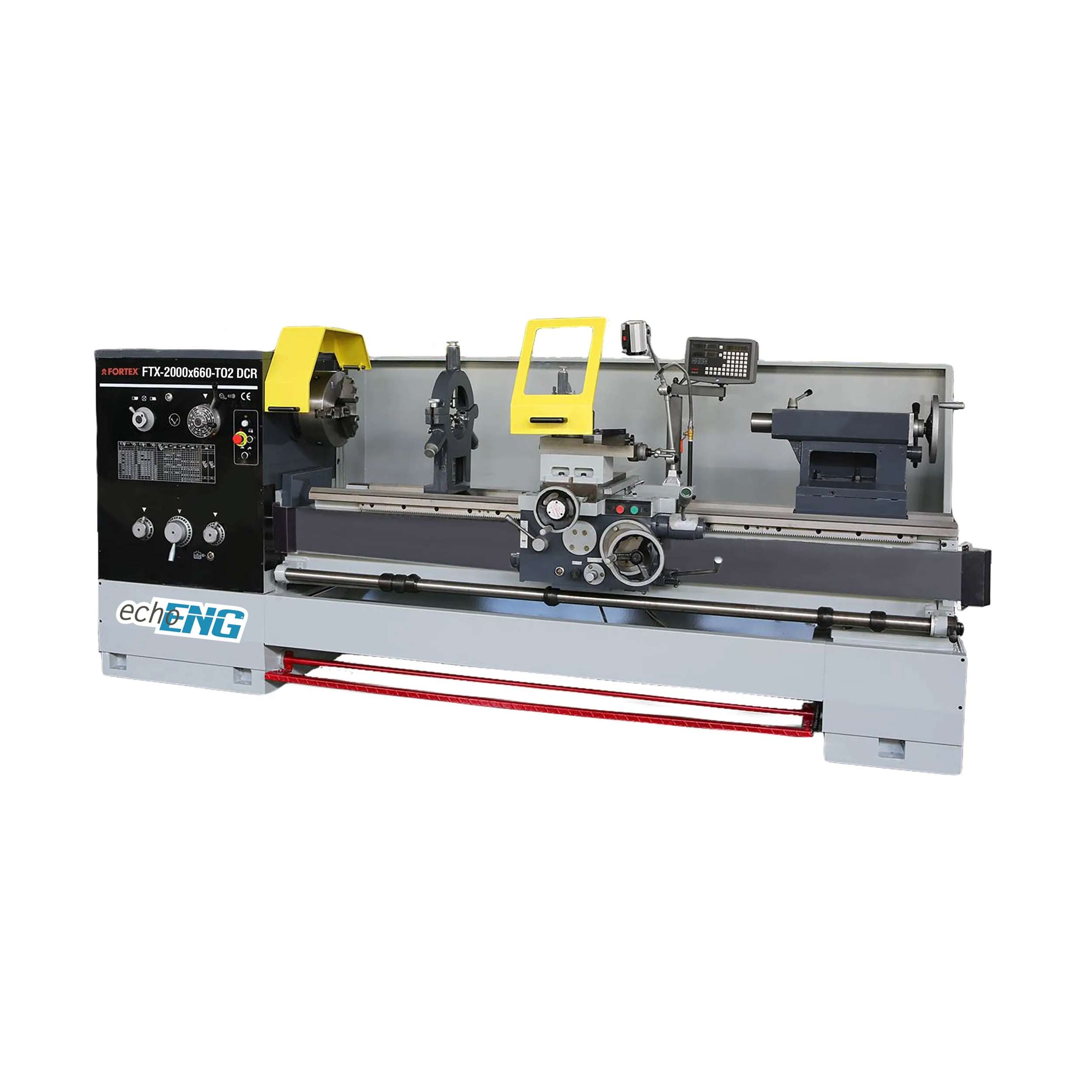

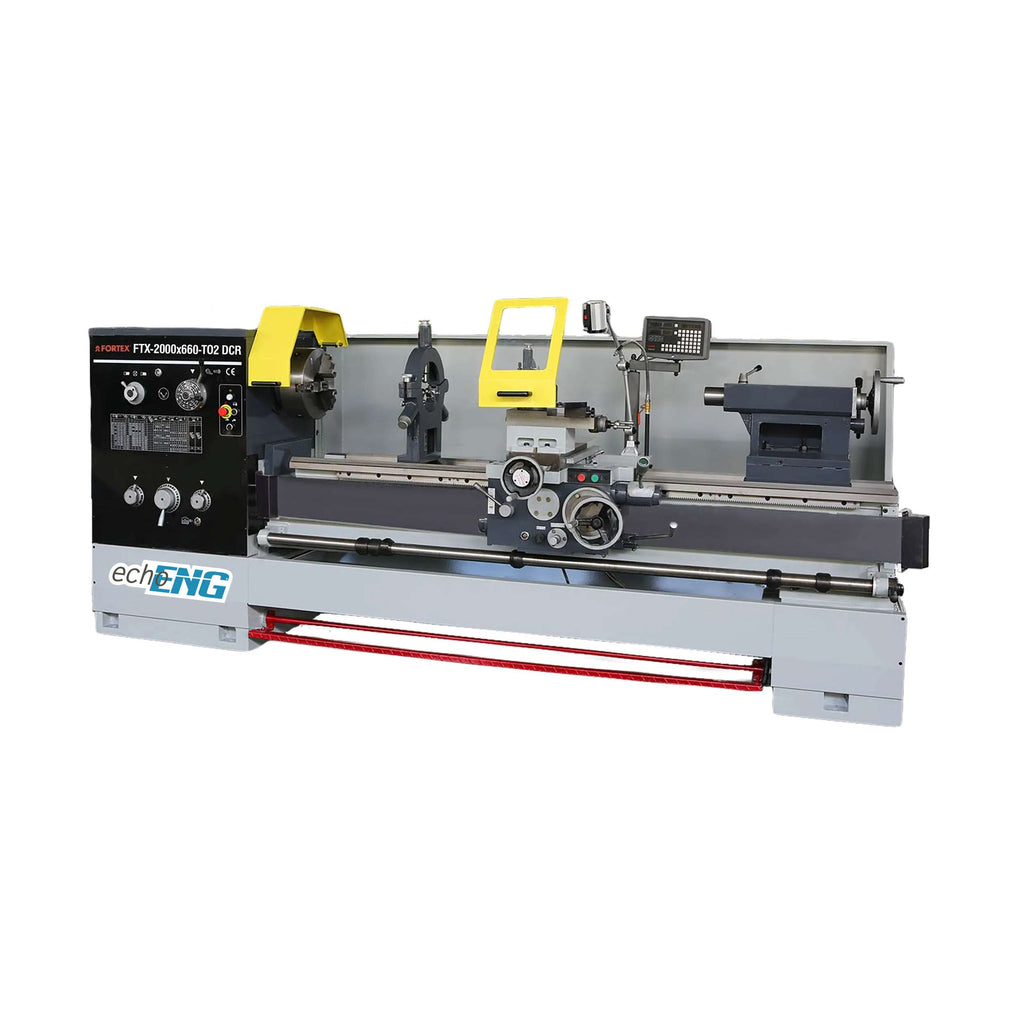

Lathe ENG PRO FTX-2000X660-TO2 DCR
- Metalworking lathe for professional use, sturdy structure with rolled and ground prismatic guides.
- Hardened sliding guides to HRC43.
- With guide shaft for automatic feed.
- Rapid longitudinal and transverse travel of intermediate slide.
- Microswitch to stop the machine when the pulley cover or spindle guard is opened.
- Claw and turret plate protection.
- Emergency stop.
- Foot brake.
- Thread indicator dial.
- Stroke stop for longitudinal carriage feed.
INCLUDED ACCESSORIES
3 jaws Chuck Ø320 mm
4 jaws Chuck Ø400 mm
Face plate Ø450 mm
Steady and Follow Rests
Chuck Guard
Work lamp
Morse taper MT5
Kit of Tools
Leadscrew cover
| Digital display X-Y | yes | |
| Voltage | V | 400-F3 |
| Power | Kw-Hp | 7,5 - 10 |
| Trasmission | Gears | |
| Max. swing over bed | mm | 660 |
| Max. swing over cross slide | mm | 420 |
| Spindle bore | mm | 105 |
| Distance between centers | mm | 2000 |
| Taper spindle bore | 113 | |
| Taper of tailstock sleeve | MT5 | |
| Diameter tailstock sleeve | mm | 75 |
| Travel tailstock sleeve | mm | 150 |
| Spindle speeds | 12 | |
| Spindle speed range | R.P.M. | 36-1600 |
| Longitudinal feeds range | mm/rev | 0,063-2,52 |
| Transversal feed range | mm/rev | 0,027-1,07 |
| Rapid longitudinal feeds | m/min | 4,5 |
| Rapid transversal advances | m/min | 1,9 |
| Metric threads range | mm | 22 steps / 1-14 |
| Inch threads range | tpi | 25 steps / 28-2 |
| Diametral threads range | d.p. | 24 steps / 56-4 |
| Modular threads range | m.p. | 18 steps / 0,5-7 |
| Weight net - gross | kg | 3900/4300 |
