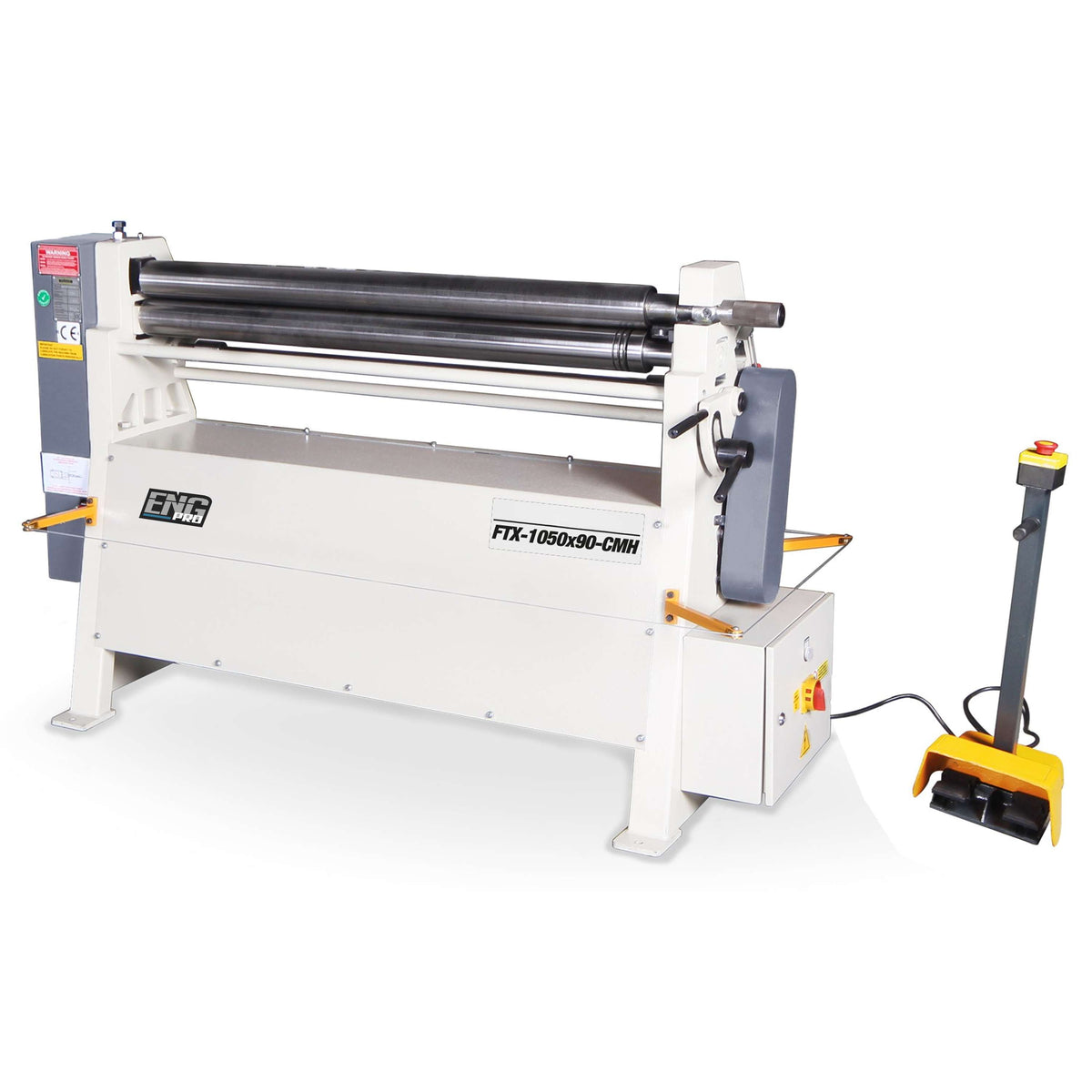

Electric Plate Rolling Machine for Sheet Metal Bending FTX-1050×90-CMH 400V Three-Phase with Hardened Rollers
The FTX-1050×90-CMH electric plate rolling machine is a professional machine designed for the bending and rolling of light and medium sheet metal in aluminum and stainless steel, engineered to deliver high precision, operational safety, and ease of use in mechanical workshops and industrial environments.
Operation is intuitive thanks to the mobile control panel with push buttons, allowing the operator to manage the machine in a practical and safe manner. The conical bending device enables versatile, high-quality processing, while the manual drop-out end facilitates removal of the finished workpiece, reducing processing time.
The machine is equipped with SAE 1050 (CK45) steel rollers, hot-rolled and supplied with a quality certificate, characterized by high tensile strength. The main frames made of spheroidal cast iron ensure structural robustness, stability, and long service life, even under intensive operating conditions.
The main motor with braking system ensures precise control of the bending process and a high level of safety during operation. The upper and lower rollers, driven by a single transmission gearbox with an gear system (RM), guarantee efficient and reliable power transmission. The wire grooves at the roller ends further enhance application versatility.
Manufactured in compliance with CE safety regulations, the FTX-1050×90-CMH electric plate rolling machine represents a reliable, precise, and professional solution for sheet metal bending and rolling operations.
Technical Specifications
| Feature | Value |
|---|---|
| Power Supply | 400V / Three-Phase (F3) |
| Power | 1.1 – 1.5 kW / HP |
| Bending Capacity | 3 mm |
| Useful Working Length | 1050 mm |
| Roller Diameter | 90 mm |
| Roller Speed | 6 rpm |
| Wire Groove Diameter | 4 / 6 / 9 mm |
| Machine Dimensions | 1630 × 700 × 1200 mm |
| Net / Gross Weight | 480 kg |
