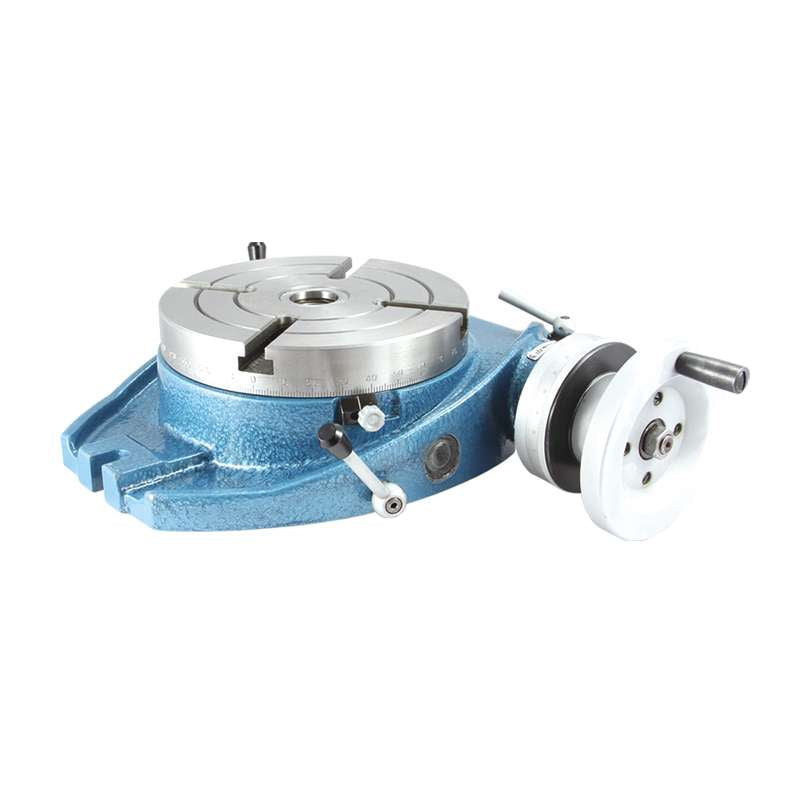

echoENG TS160A Ø 160 mm Rotary Indexing Table
The echoENG TS160A indexing table is a milling machine accessory designed for precise indexing, angular positioning and circular milling. Its rotary table, graduated through 360°, allows accurate workpiece positioning during a variety of machining operations.
The TS160A features a 160 mm diameter table with T-slots for secure mounting of the workpiece or clamping equipment. The central bore with an MT2 Morse taper facilitates centring and expands its range of milling machine applications.
The rotary mechanism, with a 1:90 worm gear ratio, allows smooth, precise adjustment of the table position. The 360° graduation and vernier enable angular and repetitive machining operations with high accuracy.
Robust and versatile, the echoENG TS160A rotary indexing table is suitable for machine shops, production departments and milling operations requiring controlled workpiece positioning.
Key features: 160 mm table diameter, MT2 Morse taper, 10 mm T-slots, 360° graduation, 1:90 transmission ratio and maximum load capacity of up to 100 kg.
