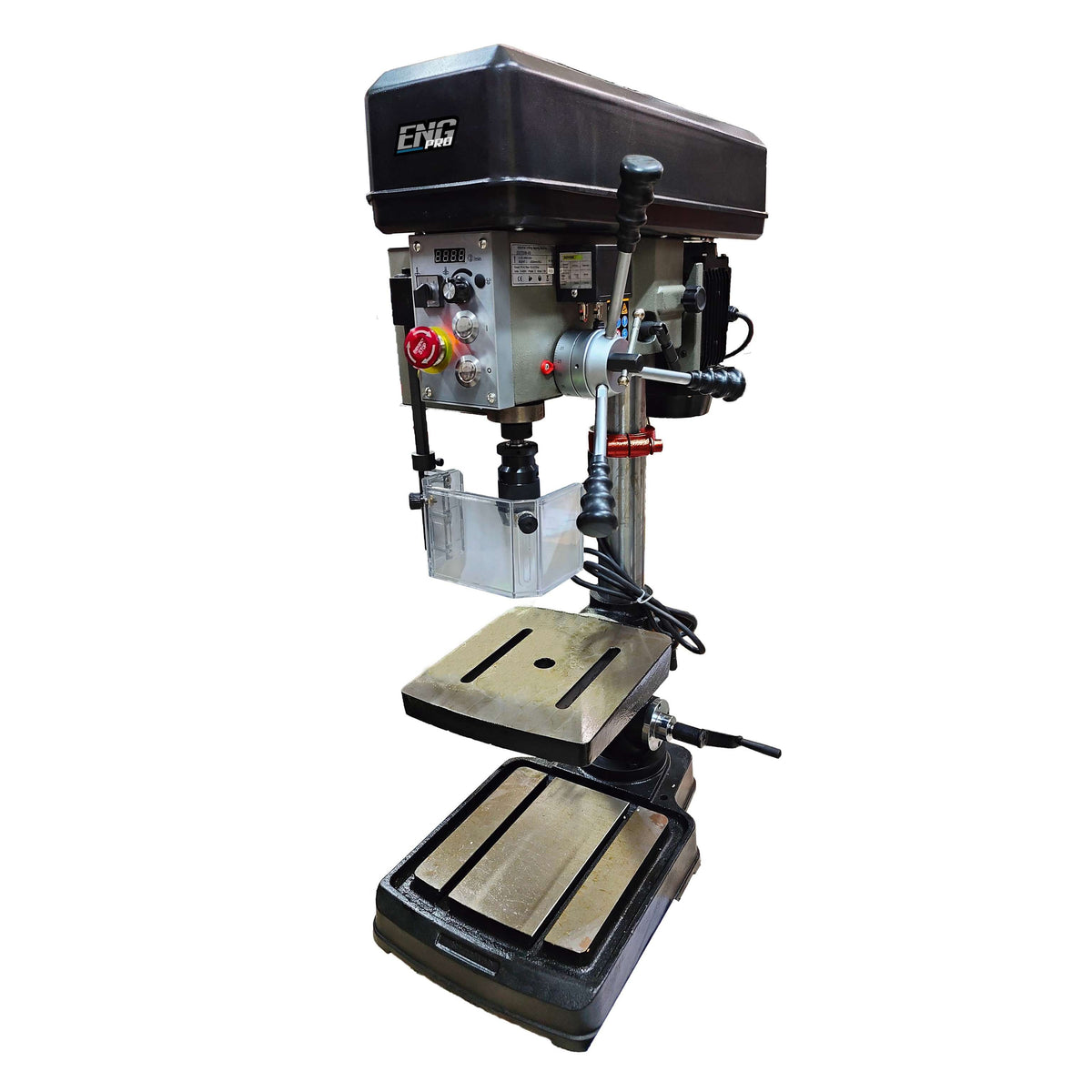

230V Variable Speed Pillar Drill with Tapping Function FTX-20S-ZS VARIO
The FTX-20S-ZS VARIO pillar drill is a compact professional machine tool designed to ensure precision, versatility, and reliability in drilling and tapping operations for mechanical workshops, maintenance departments, and production environments.
The multi-groove belt transmission provides high traction efficiency and a significant reduction in noise levels, while the ball-bearing-mounted spindle ensures stability and precision even during continuous operations. The drill is powered by 230V single-phase supply, while using an industrial three-phase motor managed by a vector frequency inverter, allowing continuous electronic speed control from 0 to 2100 rpm, optimizing operational control and energy consumption.
The machine is equipped with a tapping function up to M12 with automatic spindle reverse and adjustable tapping depth, micrometric spindle feed control, a 360° rotating worktable with rack-and-pinion movement, cross laser pointer, LED work light, and LED tachometer for immediate monitoring of working speed.
Additional features include high-durability metal controls, a safety switch on the belt guard, an automatic chuck, and construction compliant with CE standards, making the FTX-20S-ZS VARIO an ideal solution for those seeking professional performance in compact dimensions.
Technical Specifications
| Feature | Value |
|---|---|
| Power supply | 230V / Single-phase (F1) |
| Power | 0.75 – 1 kW / HP |
| Transmission | Multi-groove belt drive |
| Number of speeds | 2 – Variable |
| Spindle speed | 0 – 2100 rpm |
| Max drilling capacity | 20 mm |
| Tapping capacity | M12 |
| Spindle-to-column distance | 205 mm |
| Spindle-to-table distance | 300 mm |
| Spindle-to-base distance | 540 mm |
| Morse taper | MT2 |
| Max drilling depth | 100 mm |
| Column diameter | 70 mm |
| Table dimensions | 283 × 248 mm |
| Overall height | 1010 mm |
| Net / gross weight | 93 / 98 kg |
| Machine dimensions | 1055 × 610 × 380 mm |
