Description

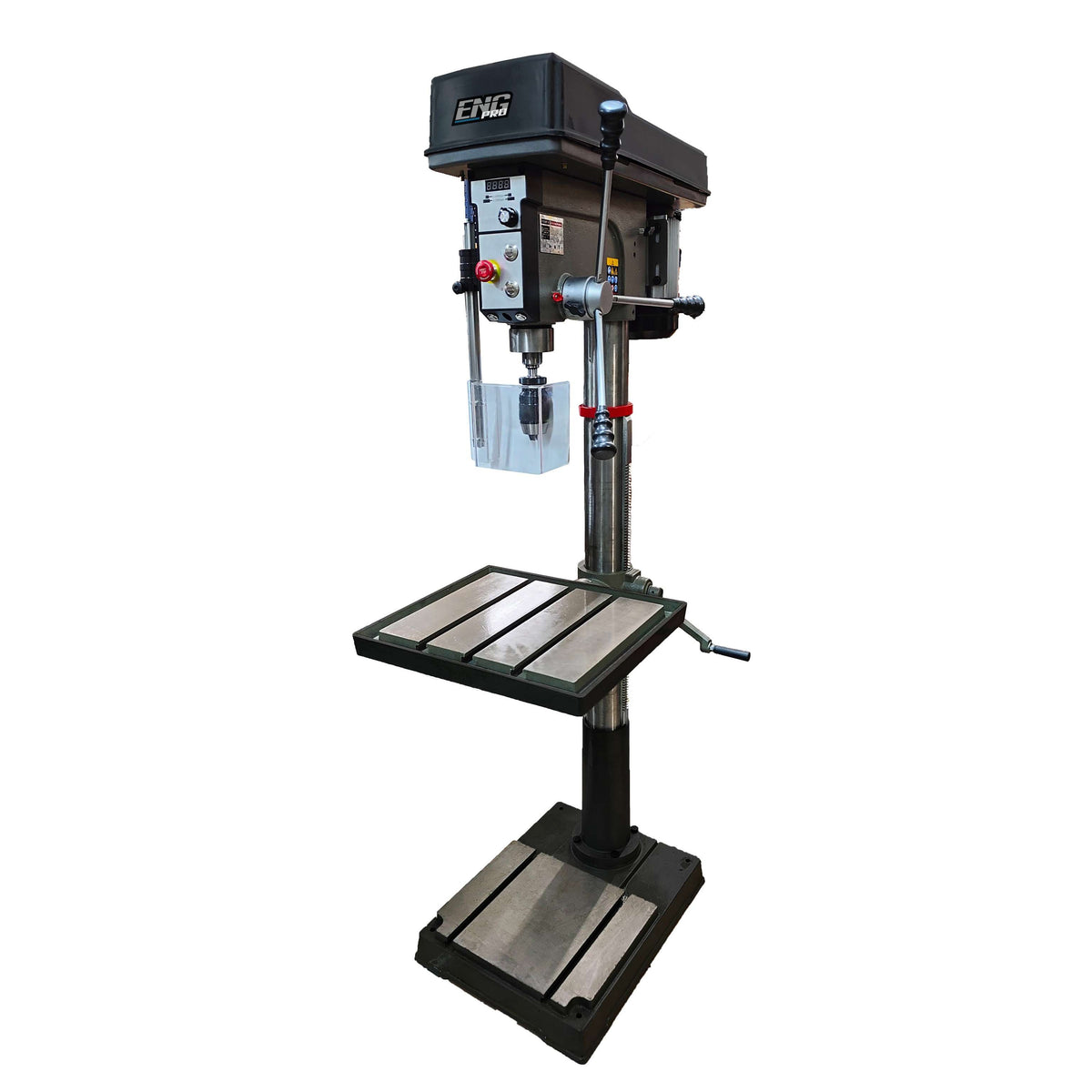

230V Variable Speed Column Drill FTX-35C-VS VARIO with Automatic Chuck
The FTX-35C-VS VARIO column drill is a high-performance professional machine tool, designed to ensure precision, power, and operational control in drilling operations for mechanical workshops, production departments, and industrial environments.
The multi-groove belt drive ensures high traction capacity and a significant reduction in noise levels, while the spindle mounted on ball bearings guarantees stability, precision, and long-term reliability. The machine is powered by 230V single-phase supply but features an industrial three-phase motor controlled by a vector frequency inverter, enabling continuous electronic speed adjustment with a dual range of 0–700 and 0–3000 rpm, optimizing energy consumption and machining control.
The drill is equipped with a 360° rotating worktable, tiltable ±45°, with rack-and-pinion vertical movement, making it ideal for angular machining and large workpieces. The equipment is completed by a cross laser pointer, LED lighting, an LED tachometer for immediate speed monitoring, micrometric control of spindle downfeed, and an automatic chuck for practical and efficient operation.
High-durability metal controls, a safety switch on the belt cover, and construction compliant with CE standards make the FTX-35C-VS VARIO a reliable and safe solution for intensive professional applications, where robustness, precision, and versatility are essential.
Technical Specifications
| Feature | Value |
|---|---|
| Power supply | 230V / Single-phase (F1) |
| Power | 1.5 – 2 kW / HP |
| Transmission | Multi-groove belt drive |
| Number of speeds | 2 – Variable |
| Spindle speed | 0 – 700 / 0 – 3000 rpm |
| Max drilling capacity | 32 mm |
| Spindle-to-column distance | 255 mm |
| Spindle-to-table distance | 680 mm |
| Spindle-to-base distance | 1170 mm |
| Morse taper | MT3 |
| Max drilling depth | 120 mm |
| Column diameter | 92 mm |
| Table dimensions | 475 × 425 mm |
| Total height | 1690 mm |
| Net / gross weight | 111 / 116 kg |
| Machine dimensions | 1450 × 655 × 390 mm |
