Description

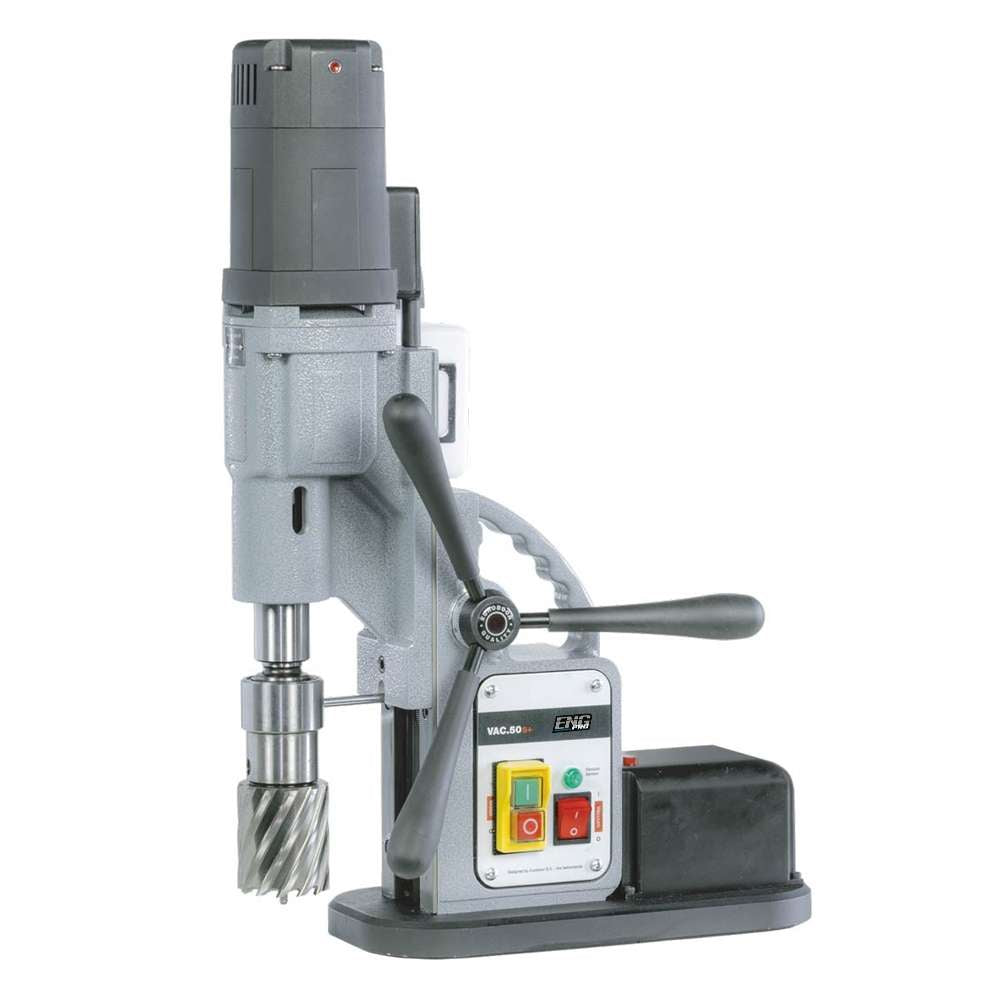

The VAC.50S+ Vacuum Base Drill is a professional solution designed to operate on non-ferromagnetic surfaces or in applications where the use of a magnetic base is not possible, such as aluminum, thin stainless steel, composite materials, or painted surfaces.
Thanks to the vacuum pump fixing system, the machine ensures stable and secure adhesion without damaging the workpiece.
Equipped with a powerful and reliable electric motor, the VAC.50S+ allows drilling, countersinking, and annular cutter operations with high precision. The 170 mm stroke enables deep machining, while the two-speed mechanical gearbox ensures correct tool adaptation to the material.
The large vacuum base provides an adhesion force of up to 300 kg, ensuring stability even during the most demanding operations. The low weight makes this drill particularly suitable for on-site work, industrial maintenance, and machining on lightweight structures.
Technical Specifications
| Feature | Value |
|---|---|
| Power supply | 230V / F1 |
| Power | 1,300 W |
| Annular cutters | Ø 12 – 30 mm |
| Twist drills | Ø 1 – 23 mm |
| Countersinking | Ø 10 – 55 mm |
| Maximum stroke | 170 mm |
| Fixing system | Vacuum base |
| Vacuum base dimensions | 300 × 140 × 21 mm |
| Maximum vacuum pressure | −80 kPa |
| Air consumption | 15 m³/min |
| Adhesion force | 300 kg |
| Rotational speed | I: 235 rpm · II: 415 rpm |
| Spindle taper | MT3 – 19.05 mm (3/4") |
| Net weight | 9.9 kg |
