Description

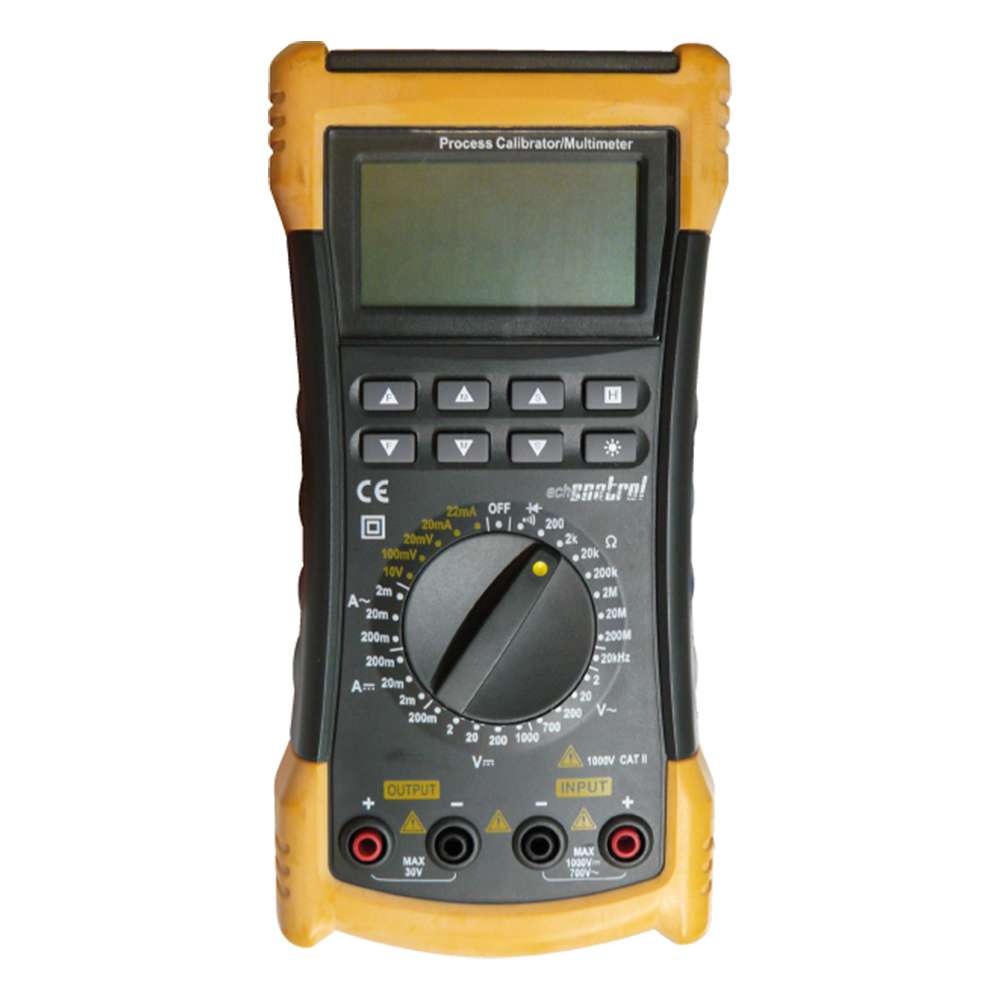

The PCM222 is a multifunction digital multimeter and portable process calibrator, designed for precision electrical measurements and for testing, maintaining and calibrating industrial instruments and systems.
Equipped with a backlit 4½-digit LCD with 19,999 counts, it measures AC/DC voltage and current, resistance and frequency, and performs diode and audible continuity tests. It provides accuracy of up to 0.05% for DC voltage and current.
In addition to its multimeter functions, the PCM222 can be used as a DC signal source and simulator, with outputs of 0–10 V, 0–100 mV, 0–20 mV, 0–20 mA and 0–22 mA, making it particularly useful for instrument calibration and testing.
The 24 V DC power output, up to 30 mA, also supplies operating power to two-wire instruments during testing and calibration.
The multimeter measures up to 1000 V DC and 700 V AC, currents up to 200 mA DC and 100 mA AC, resistances up to 200 MΩ and frequencies up to 20 kHz.
Powered by a built-in rechargeable battery, its portable design is suitable for professional field work, laboratory use and industrial maintenance.
Key features: backlit 19,999-count LCD; DC voltage up to 1000 V; AC voltage up to 700 V; DC current up to 200 mA; AC current up to 100 mA; resistance up to 200 MΩ; frequency up to 20 kHz; 20 mA current source/simulator; 24 V DC power output; diode and continuity tests; low-battery indicator.
