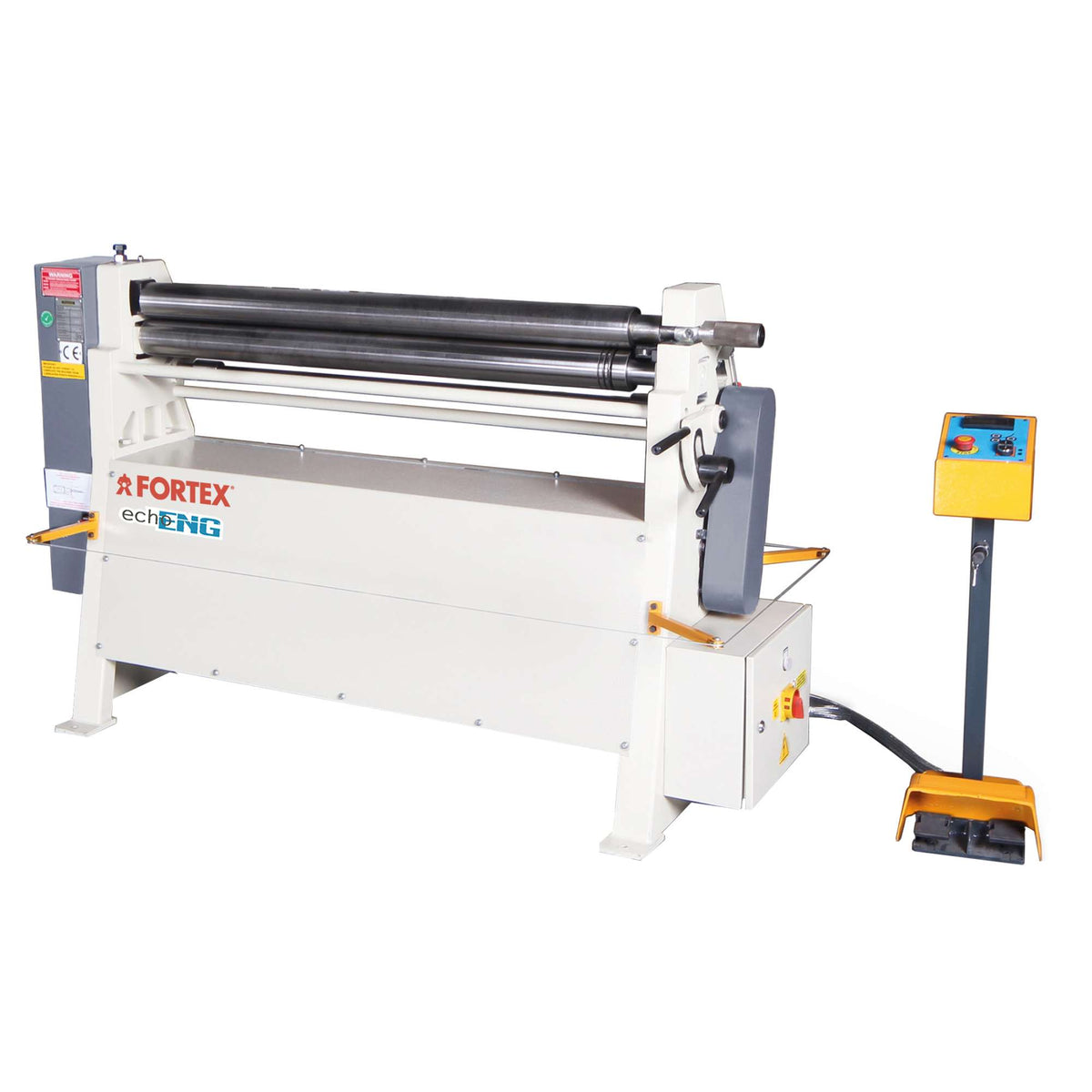

Electric roll bending machine FTX-1050X90-CM - ENG PRO
Description
The FTX-1050X90-CM ENG PRO is an electric plate rolling machine designed to provide precision, reliability, and ease of use in rolling operations on light and medium sheet metal, whether aluminum or stainless steel. The robust spheroidal cast iron frame and SAE 1050 steel rollers ensure long-lasting performance and consistent quality during operation.
Main Features
- Mobile control panel with buttons for simple and intuitive use
- Bending and rolling of wires, tubes, and sheets Ø 4 / 6 / 9 mm
- Integrated conical rolling device
- Ideal for working with light and medium sheet metal in aluminum or stainless steel
- Manual drop-end for easy removal of the finished piece
- Hot-rolled SAE 1050 (CK45) steel rollers with certified high strength
- Main motor equipped with brake system for precise control
- Precision rolling thanks to the brake motor
- Wire grooves on the ends of the rollers
- Spheroidal cast iron frame for increased stability
- Upper and lower rollers driven by a single gearbox
- Built in compliance with CE safety regulations
Technical Data
| Description | FTX-1050X90-CM | FTX-1550X90-CM | FTX-1550X90-CMH |
|---|---|---|---|
| Power supply | 400 V – 3 Phase | 400 V – 3 Phase | 400 V – 3 Phase |
| Power | 1.1–1.5 kW/HP | 1.5–2 kW/HP | 1.5–2 kW/HP |
| Roller speed | 6 RPM | 6 RPM | 6 RPM |
| Working width | 1,050 mm | 1,550 mm | 1,550 mm |
| Max sheet thickness | 3.0 mm | 2.0 mm | 2.0 mm |
| Roller diameter | 90 mm | 90 mm | 90 mm |
| Net/gross weight | 480 kg | 580 kg | 580 kg |
| Overall dimensions | 1200×700×1630 mm | 1200×700×2130 mm | 1200×700×2130 mm |
