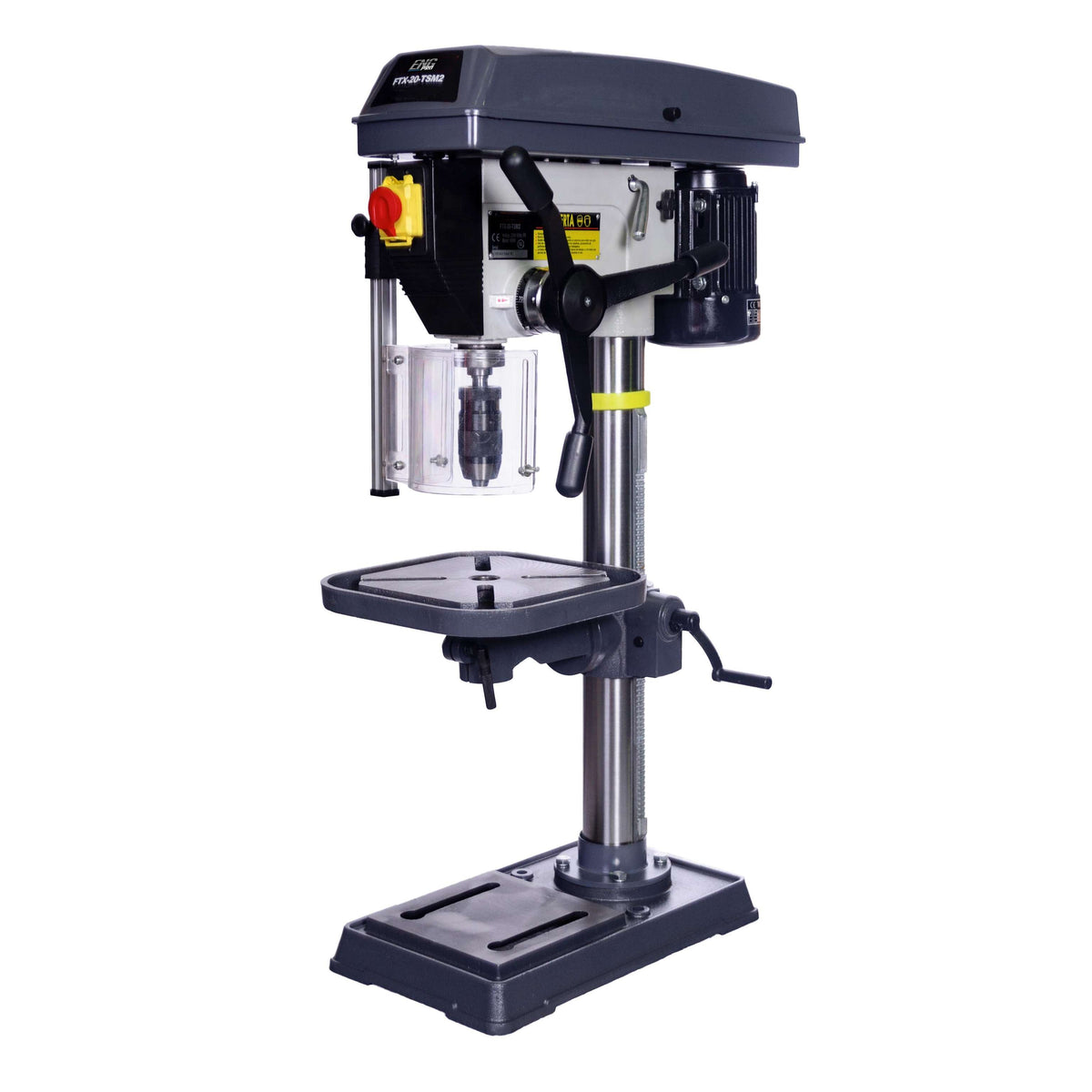

230V Pillar Drill with Belt Drive and Automatic Chuck FTX-20-TSM2
The FTX-20-TSM2 pillar drill is a compact and reliable machine tool, designed for precise drilling operations in machine shops, laboratories, and craft environments.
The belt drive transmission ensures smooth and quiet operation, while the aluminum motor guarantees robustness and long service life. The cast-iron handles provide stable control during machining. The drill is equipped with an automatic chuck, a right/left rotation inverter (R+L), and 16 selectable speeds, allowing for high operational versatility.
The 360° rotating and tilting worktable up to 45° enables angular machining and flexible workpiece positioning. Safety is ensured by a magnetic switch, a safety switch on the pulley guard, and construction compliant with CE standards.
An ideal solution for those seeking precision, safety, and reliability in a compact single-phase pillar drill.
Technical Specifications
| Feature | Value |
|---|---|
| Power Supply | 230V / Single-phase (F1) |
| Power | 0.55 – 0.75 kW / HP |
| Transmission | Belt drive |
| Number of Speeds | 16 |
| Spindle Speed | 180 – 2770 rpm |
| Max Drilling Capacity | 20 mm |
| Spindle-to-Column Distance | 180 mm |
| Spindle-to-Table Distance | 410 mm |
| Spindle-to-Base Distance | 600 mm |
| Morse Taper | MT2 |
| Max Drilling Depth | 85 mm |
| Column Diameter | 72 mm |
| Table Dimensions | 290 × 290 mm |
| Overall Height | 1000 mm |
| Net / Gross Weight | 49 kg |
| Machine Dimensions | 820 × 500 × 290 mm |
