Description

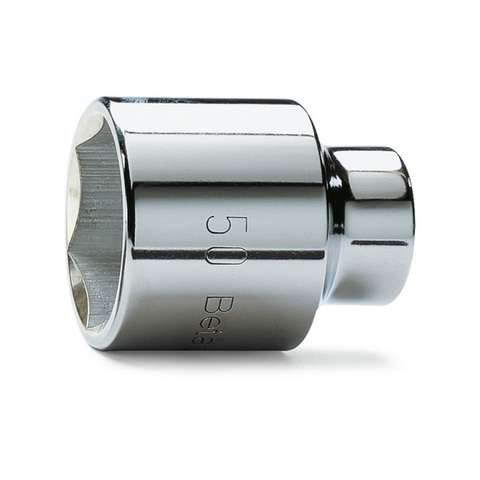

Hexagon hand sockets

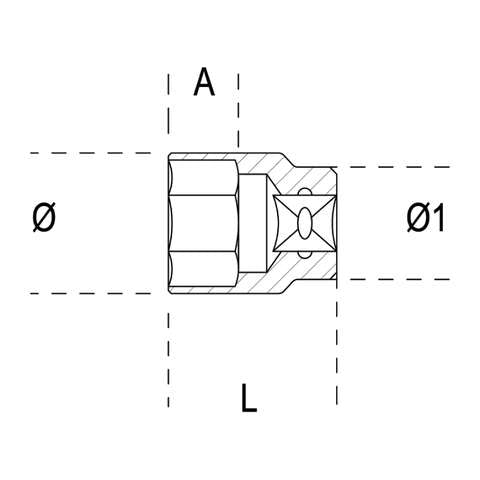

Product name |
Art. |
mm |
Ø mm |
L mm |
Ø1 mm |
A mm |
g |
|---|---|---|---|---|---|---|---|
| 009280019 | 928A 19 | 19 | 29,2 | 50 | 34 | 14,0 | 173 |
| 009280023 | 928A 23 | 23 | 33,3 | 53 | 34 | 14,0 | 217 |
| 009280024 | 928A 24 | 24 | 34,5 | 53 | 34 | 16,0 | 211 |
| 009280026 | 928A 26 | 26 | 36,8 | 55 | 35 | 16,0 | 255 |
| 009280027 | 928A 27 | 27 | 38,0 | 56 | 35 | 18,0 | 232 |
| 009280028 | 928A 28 | 28 | 39,0 | 57 | 35 | 18,0 | 252,3 |
| 009280029 | 928A 29 | 29 | 40,2 | 58 | 35 | 20,0 | 243 |
| 009280030 | 928A 30 | 30 | 41,5 | 58 | 37 | 20,0 | 322,5 |
| 009280032 | 928A 32 | 32 | 44,3 | 60 | 37 | 22,0 | 329,8 |
| 009280033 | 928A 33 | 33 | 45,8 | 60 | 37 | 24,0 | 340 |
| 009280034 | 928A 34 | 34 | 46,8 | 60 | 37 | 24,0 | 376 |
| 009280035 | 928A 35 | 35 | 48,1 | 62 | 38 | 25,0 | 374 |
| 009280041 | 928A 41 | 41 | 56,0 | 71 | 40 | 29,0 | 651 |
| 009280046 | 928A 46 | 46 | 62,3 | 75 | 43 | 32,0 | 811 |
| 009280050 | 928A 50 | 50 | 67,4 | 80 | 43 | 35,0 | 978 |
| 009280055 | 928A 55 | 55 | 73,7 | 84 | 48 | 38,0 | 1161 |
