Description

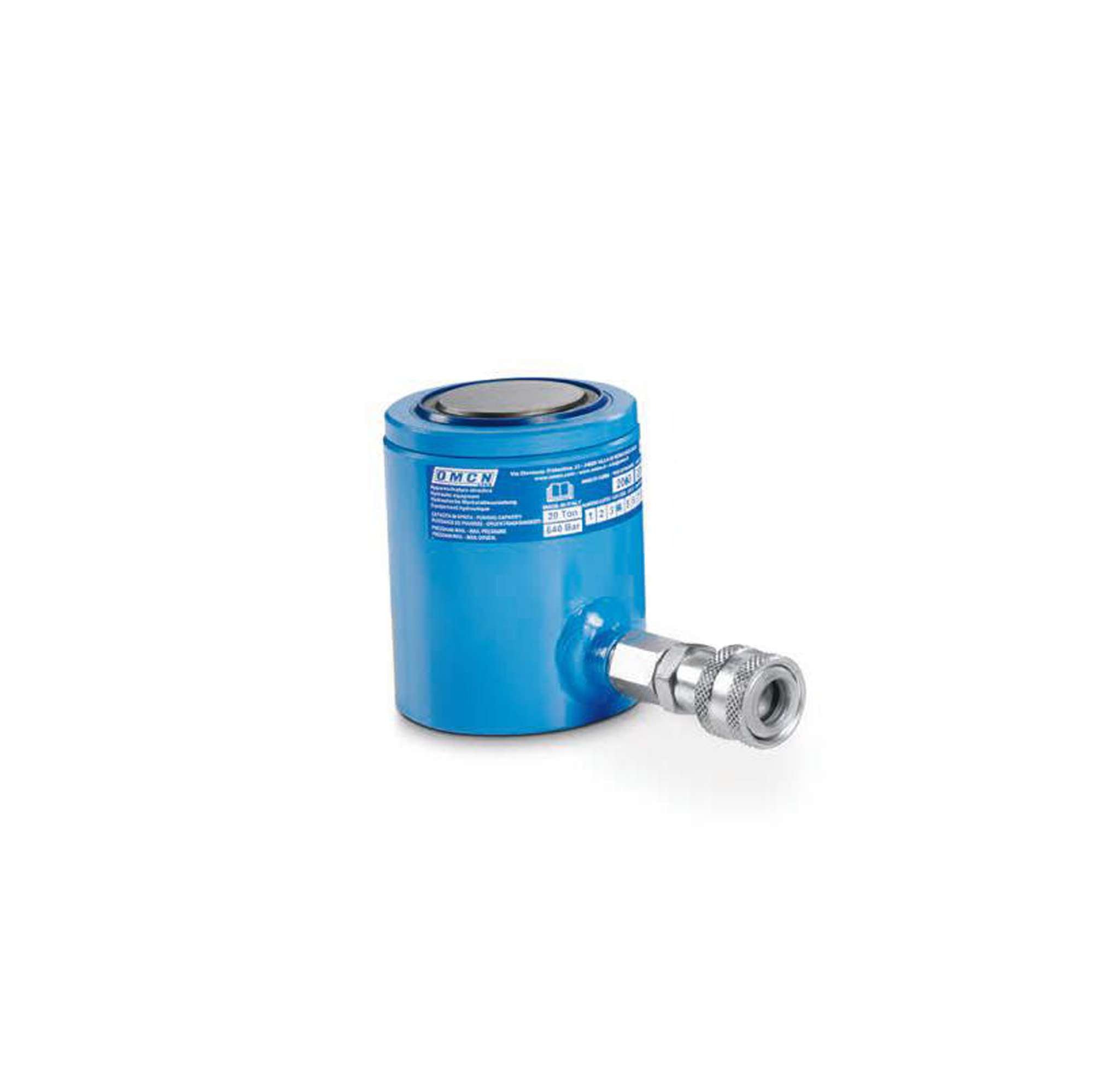

Space-saving hydraulic cylinder with spring return for lifting up to a maximum of 5 tonnes. Made of high quality materials.
The maximum working pressure is 700 bar and the product weight is 1.2 kg.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 5t
Working pressure 700bar
Oil capacity 72cm³
Dimensions A 195mm
Dimensions B 120mm
Dimensions C 75mm
Dimensions D 30mm
Weight 1.2kg
Delivery 10-15 days
