Description

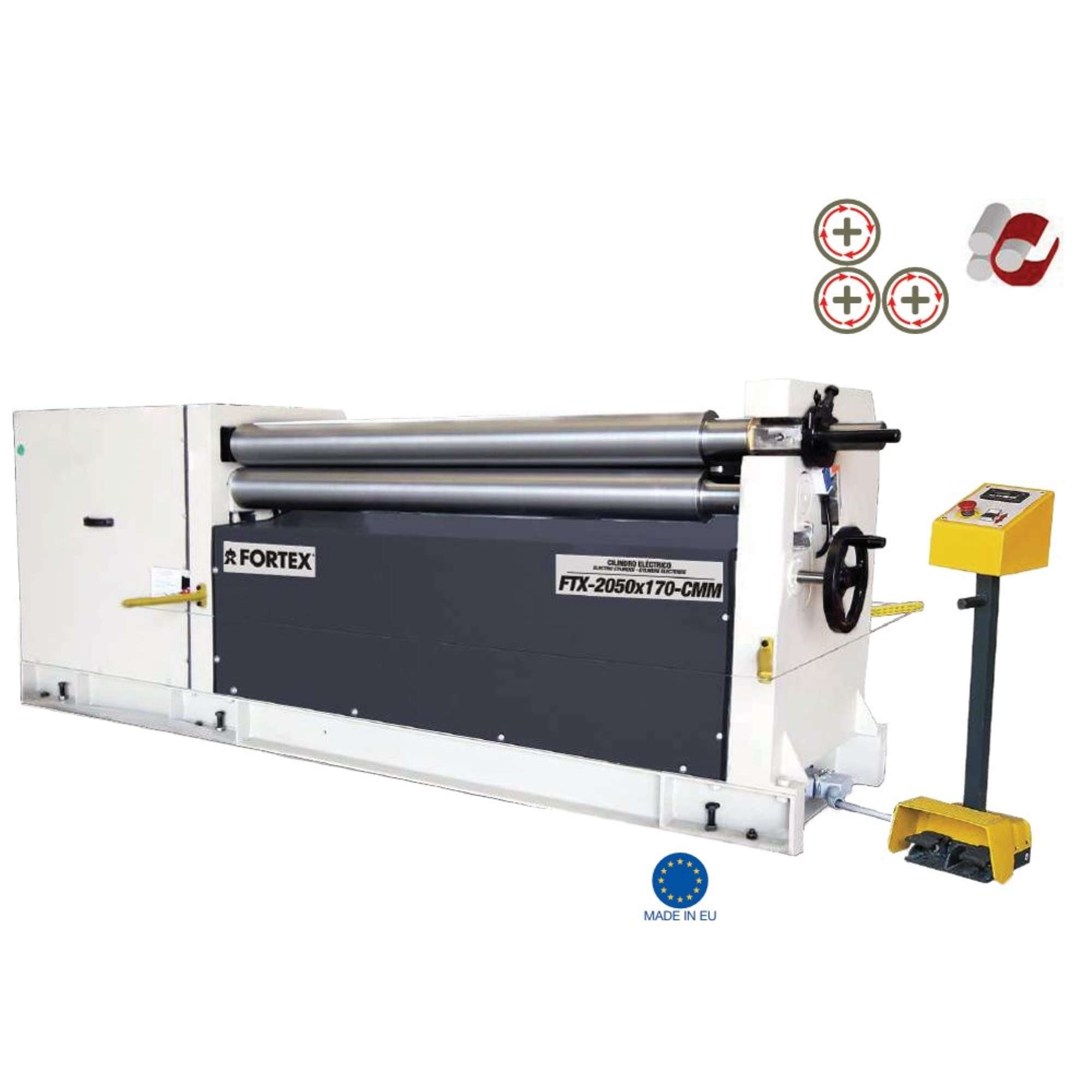

400V motorised calender - Echo-ENG FTX-2050x170-CMM
Overload protection
Simple operation thanks to mobile control panel with push buttons
Welded steel frame
Conical bending device
Suitable for light and medium-sized aluminium or stainless steel sheets
Built according to CE safety directives
Hand release ends for easy removal of finished ring nut
Steel rollers with SAE 1050 quality certificate and high tensile strength, hot-rolled with high tensile strength
Central lubrication system
Main motor with braking system
Two rollers driven by a planetary gearboxHelical gearbox and gear system
Motorised rear roller adjustment
Induction hardened rollers
Technical Specifications
| Power supply (V) | 400-F3 |
| Power (kW-HP) | 2,2 - 2,9 |
| Rear roller power (kW-HP) | 1,1 - 1,5 |
| Plane width (mm) | 2050 |
| Maximum thickness (mm) | 5 / 6 |
| Roller diameter (mm) | 170 |
| Net weight (kg) | 2100 |
| Dimensions (mm) | 1050 x 720 x 3850 |
Delivery in 10/15 days
